1-8. Signal Inputs and Outputs
1-8. Signal Inputs and Outputs
n
Meanings of “*” marks applied for the connector names are shown below:
*1 : Connector for recorder
*2 : Connector for player
*3 : Connector for HDW
*4 : Connector for DVW
*5 : Connector for MSW
*6 : Connector for MSW-M2000E/M2000EP/M2100E/M2100EP
Input connectors
1 AUDIO INPUT
*1
XLR 3-pin x 4 (1 set : CH1, CH2, CH3, and CH4)
Analog audio
LOW OFF : _60 dBu, high impedance, balanced
HIGH OFF : +4 dBu (Standard), high impedance, balanced
HIGH ON : +4 dBm (Standard), 600 Z termination, balanced
1 CUE IN
*1, 3, 4
XLR 3-pin x 1
Analog audio
LOW OFF : _60 dBu, high impedance, balanced
HIGH OFF : +4 dBu (Standard), high impedance, balanced
HIGH ON : +4 dBm (Standard), 600 Z termination, balanced
1 TIME CODE IN
*1
XLR 3-pin x 1
Time code 0.5 to 18 V p-p, 10 kZ, balanced
2 VIDEO INPUT, REF.VIDEO
*1, 4, 5
BNC x 2 in loop through connection
REF. INPUT, REF.VIDEO
*2, 5
Outside reference video signal
REF. INPUT
*3
SD : 0.3 V p-p, 75 Z, sync negative (Black burst or composite sync)
HD : 0.6 V p-p, 75 Z, sync negative (Ternary SYNC) (HDW series only)
2 VIDEO INPUT, COMPOSITE
*1, 4, 5
BNC x 2 in loop through connection
Analog composite video 1.0 V p-p, 75 Z, sync negative
2 VIDEO INPUT, COMPONENT
*1, 4, 5
BNC x 3 (1 set : Y, R-Y, and B-Y)
Analog component video
Y : 1.0 V p-p, 75 Z, sync negative
R-Y/B-Y : 0.7 V p-p, 75 Z
3 AUDIO INPUT (AES/EBU)
*1
BNC x 4 (1 set : CH1/2, CH3/4, CH5/6, and CH7/8) or
BNC x 2 (1 set : CH1/2, CH3/4)
Digital audio
AES/EBU format, complies with AES-3id-1995
5 SDI INPUT
*1, 4, 5
BNC x 1 (active through out x 1)
Serial digital interface (270 Mbit/s), complies with SMPTE 259M & ITU-R BT.656
5 SDTI-CP INPUT
*1, 5
BNC x 1
Serial data transport interface (270 Mbit/s), complies with SMPTE 326M (SDTI-CP)
5 HD SDI INPUT
*1, 3
BNC x 1 (input monitor x 1)
Serial digital interface (1.485 Gbit/s), complies with SMPTE 292M
5 SDTI INPUT (OPTION)
*1, 3
BNC x 1
Serial data transport interface (270 Mbit/s), complies with SMPTE 305M (SDTI)

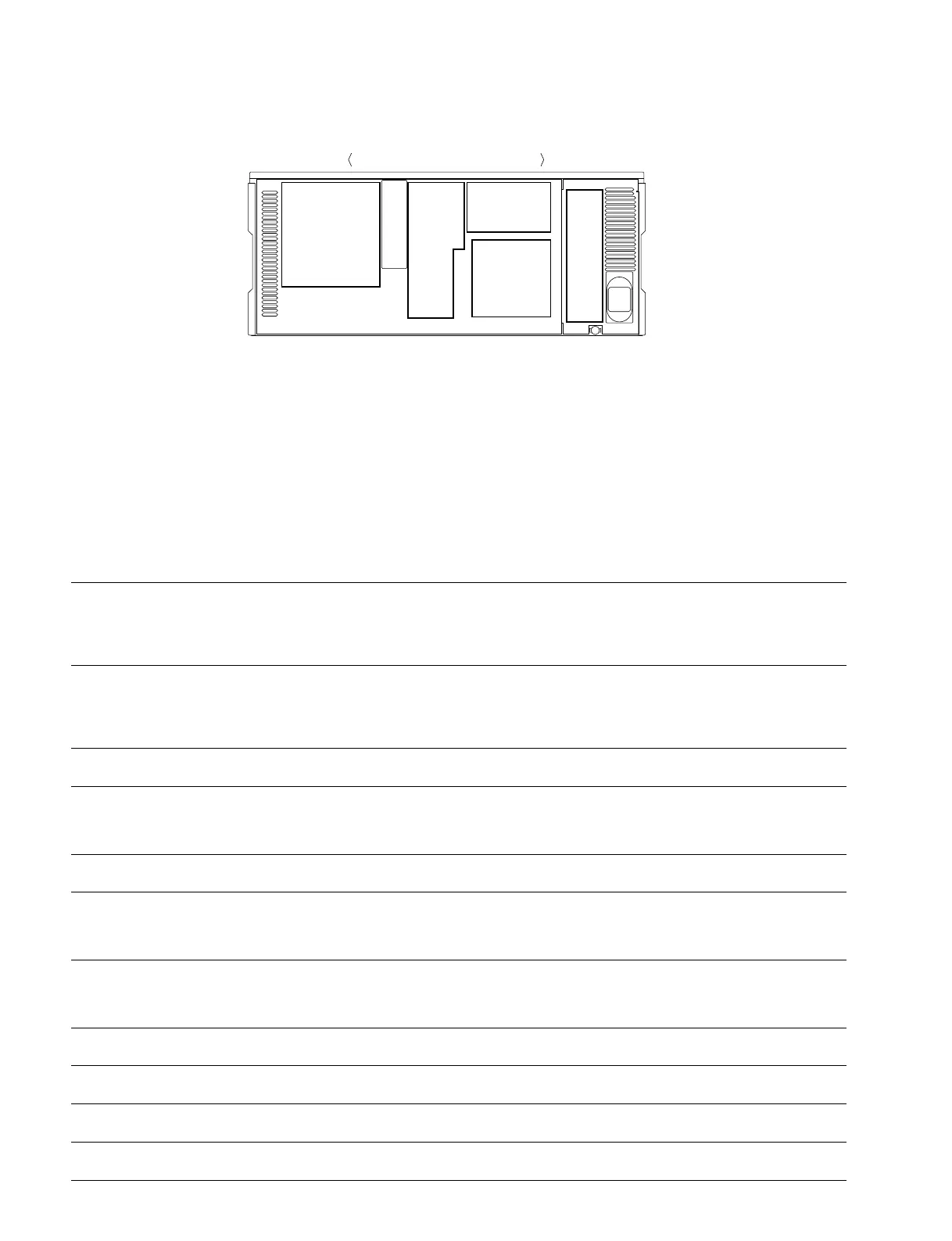

Reduced drawing of rear panel
12
5
3
4
