Sony DVW-M2000 User Manual

1-15
HDW-2000/M2000/M2000P/S2000/S2000P/M2100/M2100P, DVW-2000/2000P/M2000/M2000P
MSW-2000/A2000/A2000P/M2000/M2000P/M2000E/M2000EP/M2100/M2100P/M2100E/M2100EP
External view
15
96
External view
81
915
1-8. Signal Inputs and Outputs
1-9. Switch Settings on Connector Panel

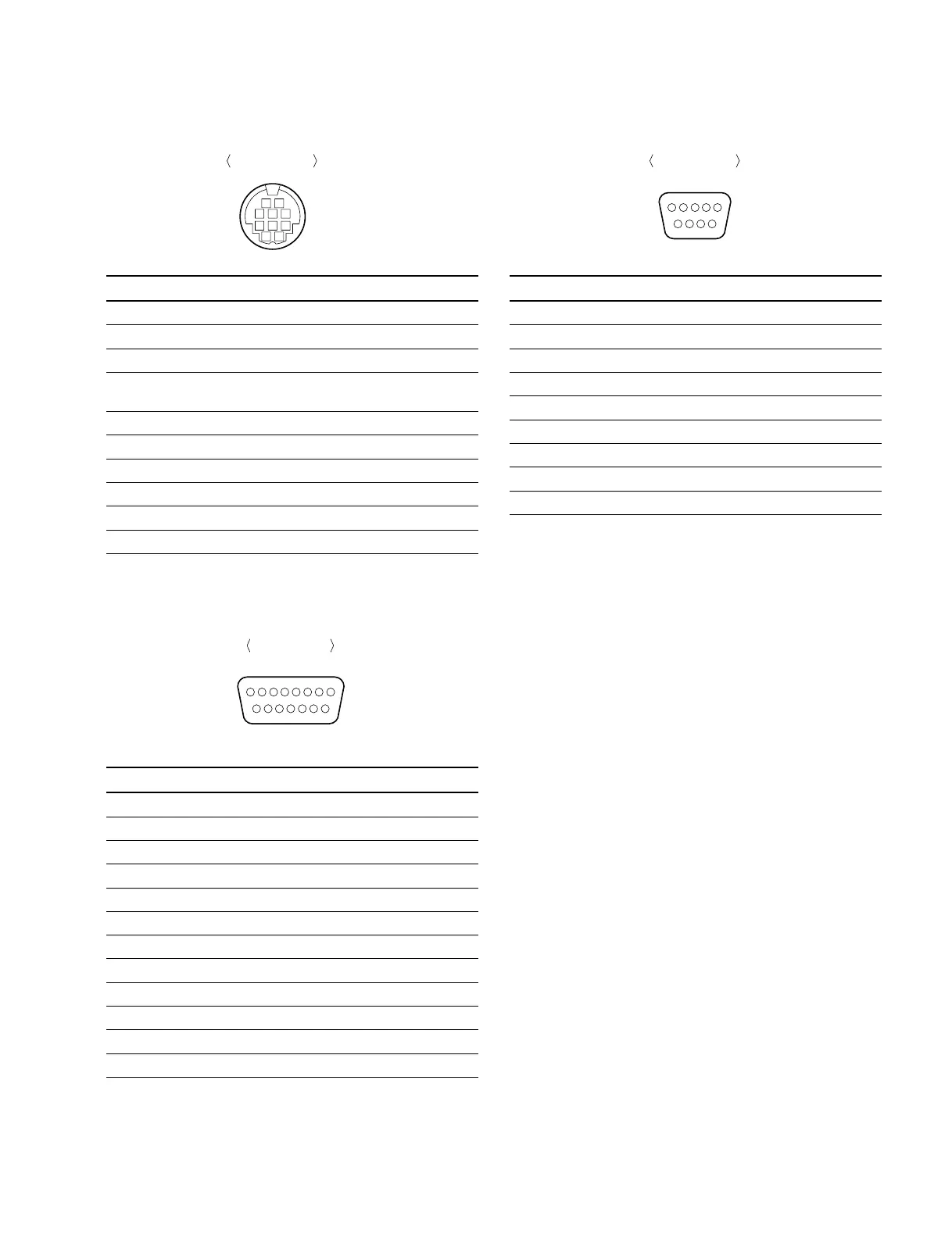

CONTROL PANEL: 10-pin (female)
Pin No. Signal Terminal voltage (V)
1 +21 V +21 V
2 +21 V +21 V
3 KEY TX (+) (Output) RS422
4 FRONT/REAR +5: FRONT
0: REAR
5 KEY TX (_) (Output) RS422
6 KEY RX (+) (Input) RS422
7 GND
8 KEY RX (_) (INPUT) RS422
9 GND ——
10 GND ——
VIDEO CONTROL: 15-pin (male)
Pin No. Signal Terminal voltage (V)
1 SYNC CONT (Input) _5 to +5
2 HUE CONT (Input) _5 to +5
3 SC CONT (Input) _5 to +5
4 VIDEO LEVEL CONT (Input) _5 to +5
5 SETUP CONT (Input) _5 to +5
6 CHROMA LEVEL CONT (Input) _5 to +5
7 REG _12V (Output) _12
8 GND ——
9 to 12 NC ——
13 Y/C DELAY CONT (Input) _5 to +5
14 NC ——
15 REG +12V (Output) +12
n
This connector exclusively connects the TBC remote
controller BVR-50.
VIDEO CONTROL / (OPTION): 9-pin (female)
Pin No. Signal
1 GND
2 RM TX (_)
3 RM RX (+)
4 GND
5 ——
6 GND
7 RM TX (+)
8 RM RX (_)
9 GND
1-9. Switch Settings on Connector Panel
When the unit is installed, be sure to perform the following
setup.
Refer to the operation manual “Section 2 Location and
Function of Parts” for setup.
. Analog audio input level/600 Z termination switches
(Recorder only)
. 75 Z termination switch of reference video input
. 75 Z termination switch of composite video input
(DVW/MSW recorder only)
External view
1
3
68
109
5
2
