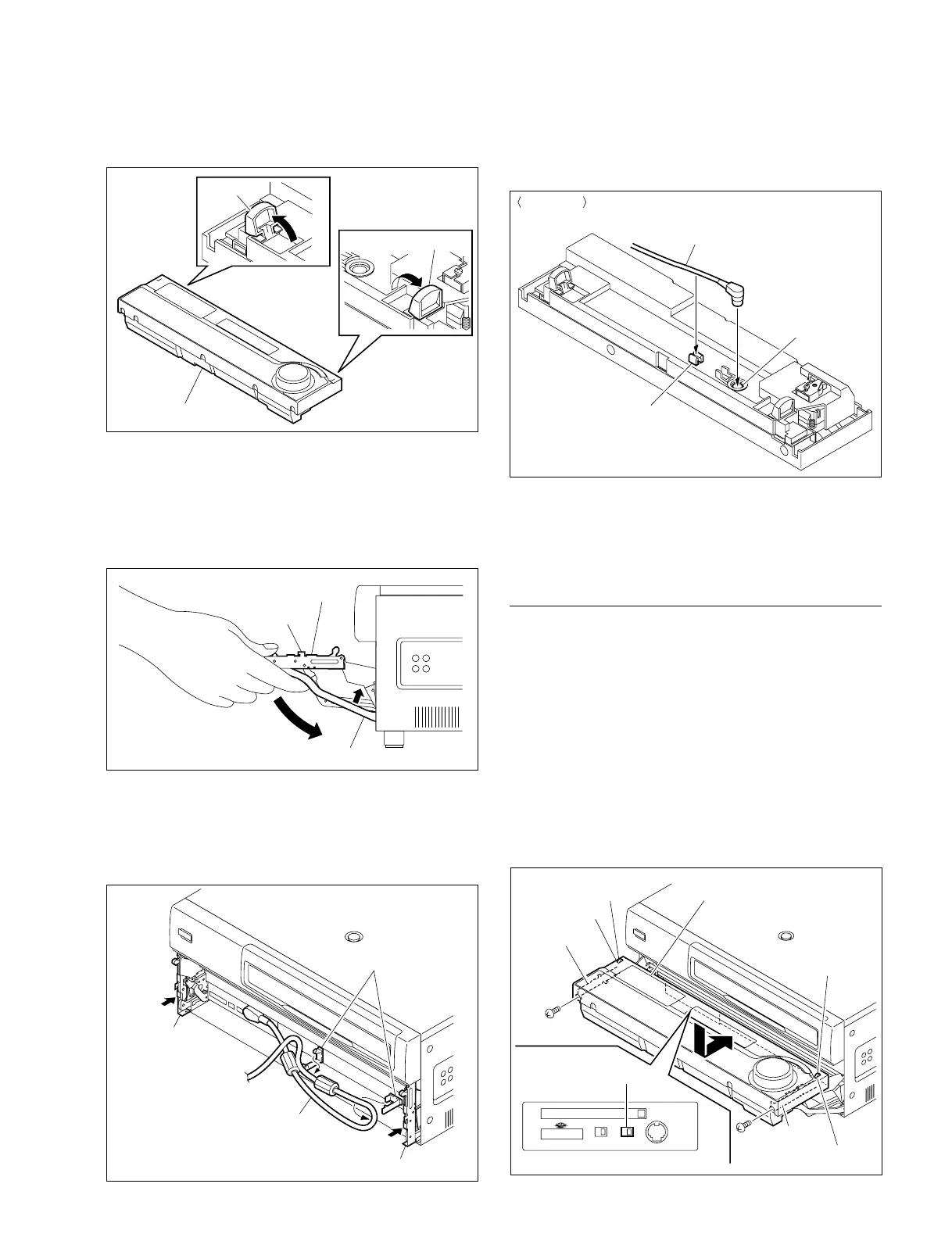

1-12. Removing/Reattaching Lower Control Panel Unit
10. Connect the cable to the connector on the back side of
the lower control panel unit and fix the cable in the
cable holder.
n
In the case of connecting the lower control panel unit to the
CONTROL PANEL connector in the rear side, set the
PANEL SELECT switch to REAR.
Reattaching the Lower Control Panel Unit
Reattach the lower control panel unit in the reverse order
of removal and extension, yet when reattaching, use care
about following points.
. Set the PANEL SELECT switch to FRONT.
. When opening the arms, follow step 2.
. When reattaching the lower control panel unit to the
arms, place it which square holes of the panel aligned to
the unlock buttons and slide it slightly to the VTR.
. Check the screw holes are visible from your side before
tightening the screws.
6. Erect the feet on the back side of the lower control
panel unit and place it.
7. While lifting the outer stay by the forefinger, fold the
arm in the direction of the arrow shown in the figure.
n
Move the forefinger off before pinching it between the
arm and chassis.
8. Check that each arm is locked and unmoving state. If it
rattles, lightly push in the arm until it locks.
9. Take the cable off the three cable holders on the switch
panel.
Lower control panel unit
Foot
Foot
Cable
Cable holder
Connector
Back view
Arm
Craw
Outer stay
