2-11

SEL200600G

2 tripod ring fitting tube

rear (mount) side

front (lens) side

1 screw

(1 group piese)

1 screw (1 group piese)

1 screw (1 group piese)

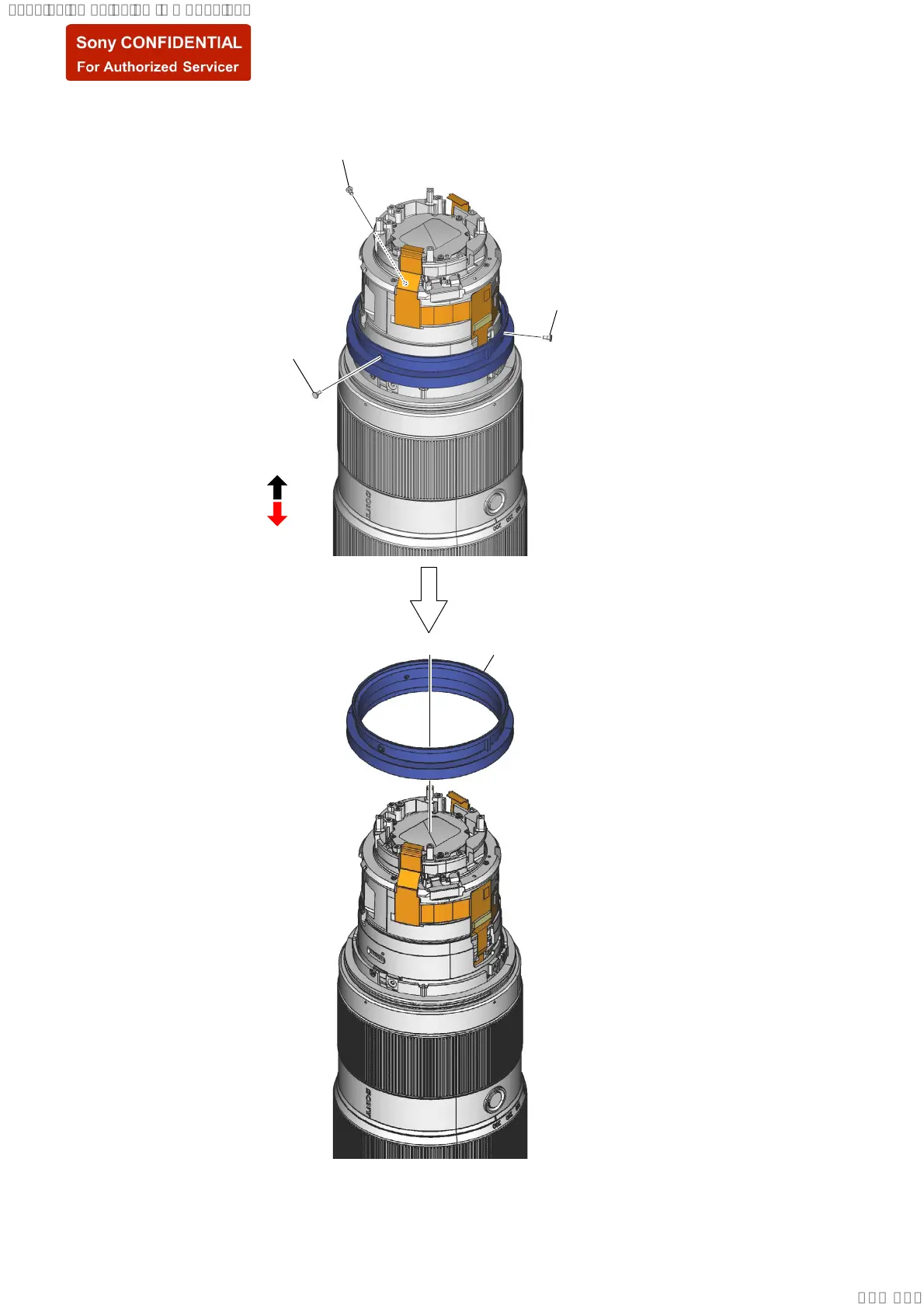

2-2-14. TRIPOD RING FITTING TUBE

SYSSET

2019/06/2822:04:56(GMT+09:00)

Table of Contents

Specifications1
Service Note2
Chemicals2
Exterior Parts2
Safety Check-Out2
Before Main Board Replacement3
After Main Board Replacement3
Disassembly & Assembly4
Operation Notes4
Service Tools4
Table of Contents5
Constitution Diagram5
Disassembly6
Filter Reinforcing Ring7
- Protect Rubber7
- Filter Screw Ring Assy8
- B01 Assy8
- G03 Assy9
- Cam Tube Mask9
- Mount Block10
- Cl-1065 Board10
- Sw Assy11
- Rear Outer Ring Block11
- Tripod Plate12
- Tripod Ring Assy13
- Tripod Ring Fitting Tube14
- Rear Outer Tube (Front) Assy15
- F Ring Fix Block16
- Mf Ring Assy17
- 6 Group Assy18
- Rear Tube Block18
F Front Ring Assy19
- Rear Tube Assy, 5 Group Assy20
- 4 Group Block21
- Iris, 4 Group Assy21
- Zmr Assy22
- Middle Outer Tube Assy23
- Z Operation Ring24
- Z Joint Ring Block25
Frictin Sheet a25
Z Joint Piece25
Group Piece25
- Front Outer Tube Assy26
- 2 Group Assy27
- 3 Group Block, Vertical Slit Tube Assy28
Group Piece28
3Rd Coma Shaft28
G10 Mask28
- Assembly29
- 3 Group Assy30
Vertical Slit Tube Assy30
- Tripod Knob48
- Rear Outer Ring Assy51
- Mount Section61
Tripod Sliding Piece61
- Group Block Section62
- Rear Tube Section63
- Middle Outer Tube Section64
- Vertical Slit Tube Section65
- F Ring Washer66
- Group Tilt Washer66
- Selection Parts66
- Washer66
- Group Piece67
- Sub Coma67
- Z Ring Washer67
- Zmr Brass Coma67
- 2Nd Coma Shaft68
- 3Rd Coma Shaft68
- Supplied Accessories69
- Adjustment Items after Replacing Parts70
- Adjustments70
- Before Starting Adjustments70
- Adjustment/Check Procedure Flow Chart71
- List of Service Tools and Equipment72
- Preparation of Optical Axis Adjustment Spring74
- Processing Method74
- 1000 MM Collimator75
- A-E Mount Conversion Attachment75
- A-Mount Attachment75
- Camera Table 20020075
- Equipment and Tools (Common)75
- FB Tester Stand75
- Flange Back Gauge (43.50 MM)75
  - Optical Axis Check/Adjustment75
  - Setting of the Flange Back Tester75
  - Setting/Preparation of the Flange Back75
  - Preparations of Using a B-L Control Box76
  - Preparations of Using a Camera76
  - Setting Procedure of Equipment and Tools76
  - Finishing the BLG-Testprogram77
  - Procedure of Finishing77
  - Starting the BLG-Testprogram77
  - Optical Axis Adjustment80
  - Optical Axis Check80
  - B06 Frame Washer81
  - Resolving Power Check83
  - Setting/Preparation of the Lens Test Projector83
  - Setting of Lens Test Projector84
  - Starting and Finishing the BLG-Testprogram85
  - Projective Resolving Power Check89
  - Photographic Resolving Power Check91
- Resolution Check Chart (ILC)91
  - Partial Blur Adjustment (B06 Frame Assy)92
  - Resolving Power Adjustment92
  - Partial Blur Adjustment (6 Group Assy)93
  - Partial Blur Adjustment (G03 Assy)93
- Clear Chart94
- Siemens Star Chart94
- Small Pattern Box (PTB-1450)94
- Installation of Serviceapplauncher95
- Installation of Eeprom_Logvewer96
- Installation of Sel200600G_Service_Tool97
- Precautions for Use98
- Method of Starting and Finishing98
- Adjustment Method of each Item99
- F no Adj103
- Fb Adj104
- Fpca106
- Focus Shift Adjustment107
- Flange Back Adjustment Jig107
- Fb Chk109
- Rom Check110
- Sleep110
- Write the Serial Number111
- Check the Log Information111
