Sony E-mount SEL200600G User Manual

3-2
SEL200600G

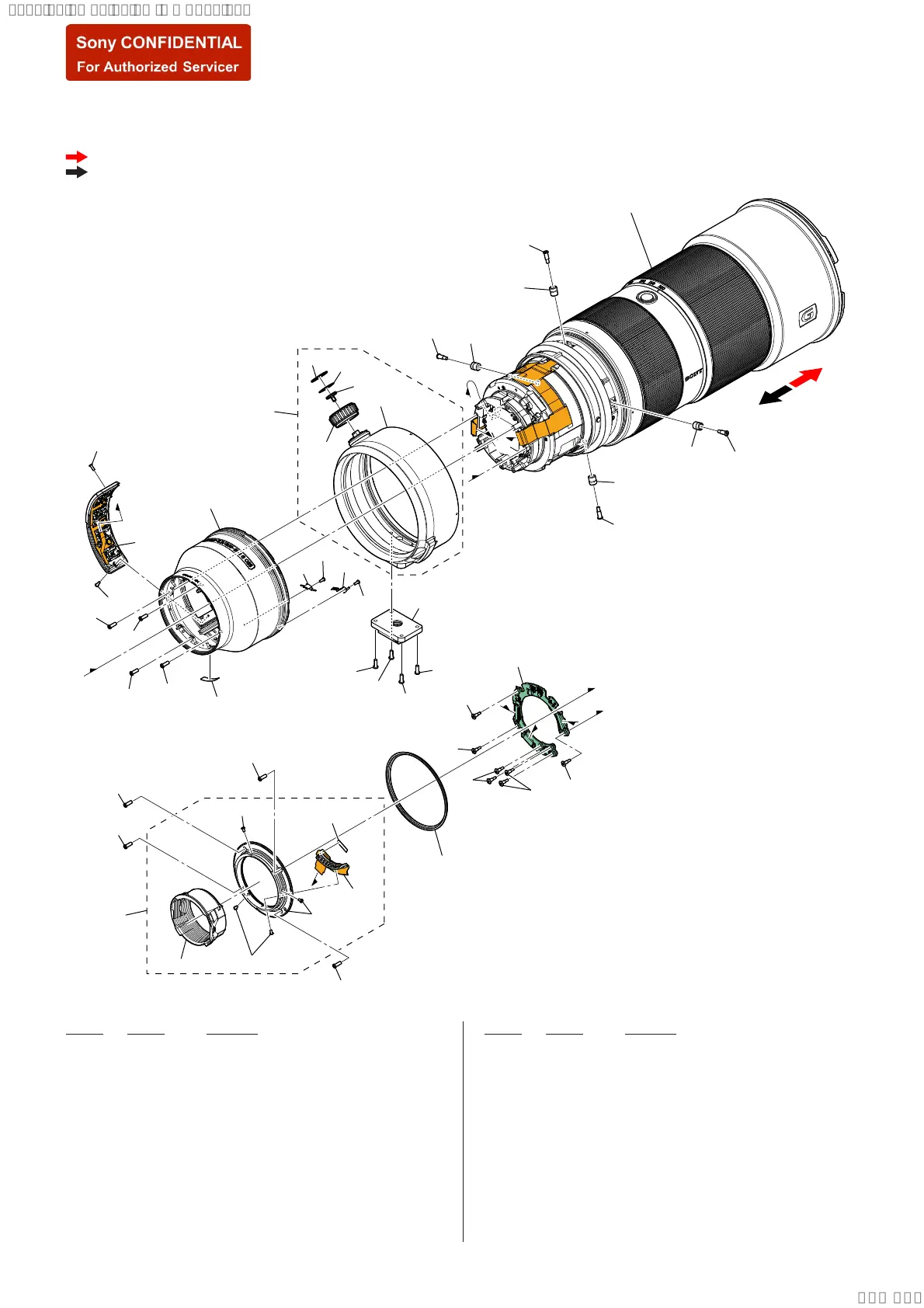

3-2. MOUNT SECTION
Red arrow direction : Shown the front (lens) side
Black arrow direction : Shown the rear (mount) side
Refer to 4 group block section.
66
67
68
69
52
51
53
53
54
55
55
55
53
53
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
C
not supplied
C
D
E
D
E
F
G
F
G
H
H
55
55
56
57
57
57
57
58
58
59
60
61
62
61
62
63
63
63
63
70
70
70
70
64
65
71
71
71
71
Ref. No. Part No. Description Ref. No. Part No. Description
51 500623101 MOUNT ASSY
52 500623201 CONTACT BLOCK ASSY
53 500646401 1P2X6C3C, NYLOK
54 500565201 MOUNT WATERPROOF RUBBER
55 500567401 LOCK, PC BOARD, IB
56 500564001 MAIN PC BOARD ASSY (CL-1065 BOARD)
57 469687101 LOCK, 1P2X6C3C IB
58 500566901 SCREW, SW PLATE (L = 4.5 mm)
59 500623301 SW-ASSY
60 500623001 REAR OUTER RING ASSY
61 500565001 REAR OUTER CONDUCTIN PLATE
62 468892101 BT2P1.4X3.5B3C
63 500835101 LOCK, 2P2X7C3C IB
64 500566401 TRIPOD PLATE
65 500622801 TRIPOD RING ASSY
66 500566001 TRIPOD KNOB
67 500620001 SCREW, KNOB
68 500566301 KNOB COVER TAPE
69 500566201 KNOB COVER B
70 500567101 LOCK, TRIPOD SLIDING PIECE, IB
71 500565701 TRIPOD SLIDING PIECE
SYSSET
2019/06/2822:04:56(GMT+09:00)
