Sony E-mount SEL200600G - Exploded Views and Parts Identification; Front Section Exploded View

3-1
SEL200600G
3. EXPLODED VIEWS
Note:
• -XX and -X mean standardized parts, so they
may have some diff erence from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.

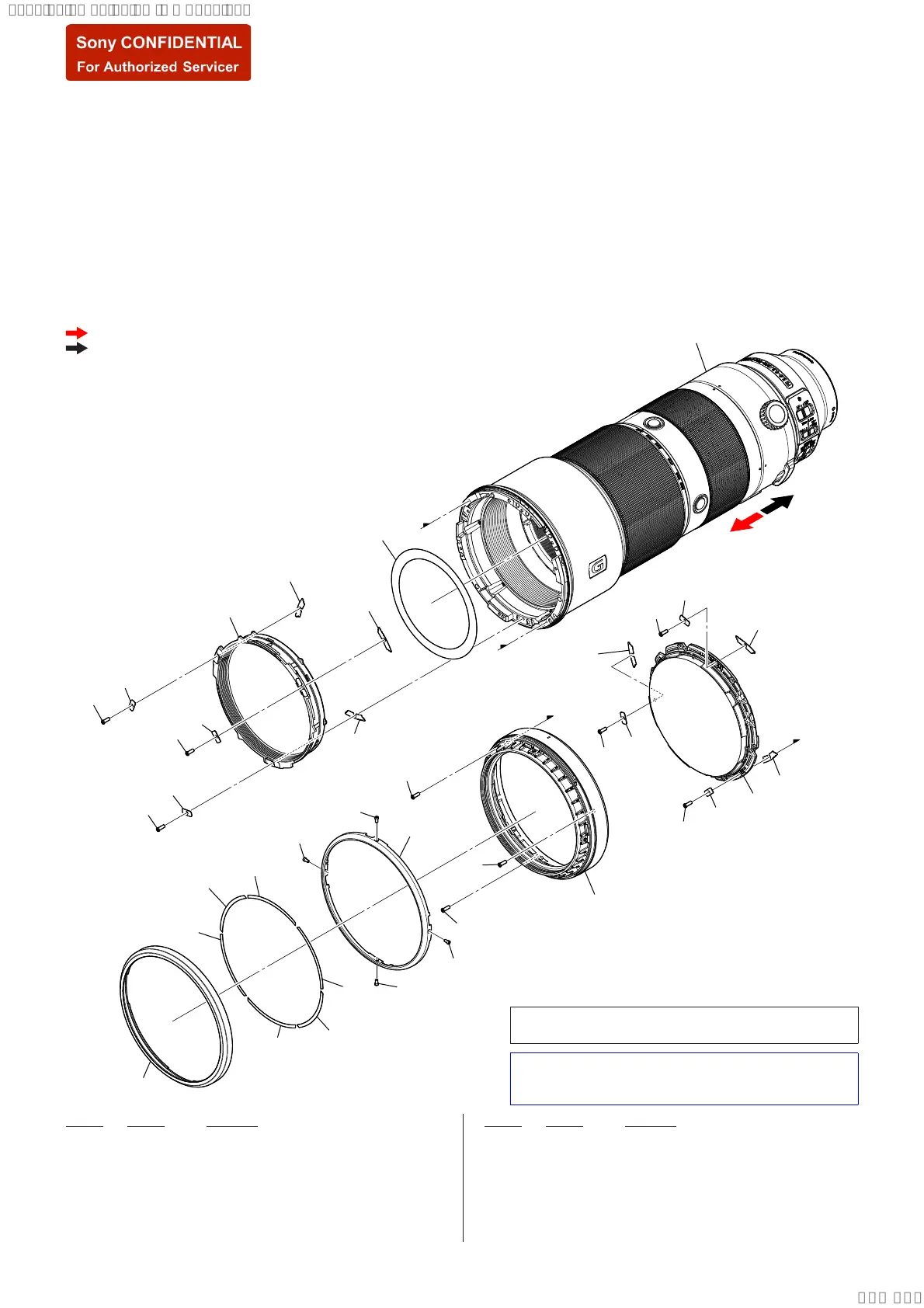

3-1. FRONT SECTION
Red arrow direction : Shown the front (lens) side
Black arrow direction : Shown the rear (mount) side
A
B
2
(Note 1)
2
(Note 1)
9
(Note 2)
9
(Note 2)
9
(Note 2)
9
(Note 2)
2
(Note 1)
2
(Note 1)
2
(Note 1)
2
(Note 1)
1
3
3
3
3
4
5
5
5
5
5
5
5
5
7
7
8
10
11
5
6
A
B
Refer to mount section.
7
7
7
7
9
(Note 2)
9
(Note 2)
Note 1: This parts be not reused. Be sure to replace them with
new parts.
Note 2: This part is for adjustment. Refer to “3-7. SELECTION
PARTS”, and adjust the thickness by following the results
of the check.
Ref. No. Part No. Description Ref. No. Part No. Description
1 500564601 PROTECT RUBBER
2 500564501 PROTECT RUBBER ADHESIVE (Note 1)
3 500619901 SCREW, REINFORCING RING PIECE
4 500564401 FILTER REINFORCING RING
5 469687101 LOCK, 1P2X6C3C IB
6 500622301 FILTER SCREW RING ASSY
7 500564101 REINFORCING PLATE
8 500621401 B01 ASSY
9 selection parts WASHER, 1 GROUP TILT (Note 2)
10 500621501 G03 ASSY
11 500565301 CAM TUBE MASK
