2-48
SEL200600G
2 rear outer conductin plate
Note:
Be careful not to deform it.
2 rear outer conductin plate
Note:
Be careful not to deform it.
rear (mount) side
front (lens) side
1 rear outer ring assy
rear (mount) side
front (lens) side
3 tapping screw (1.4 u 3.5)
(1P
3 tapping screw (1.4 u 3.5)
(1P
4 Align the rear outer ring block with the
position of the figure and install it.
index
spec badge
index
index
index
5 four screws (2.0 u 6.0)
1P

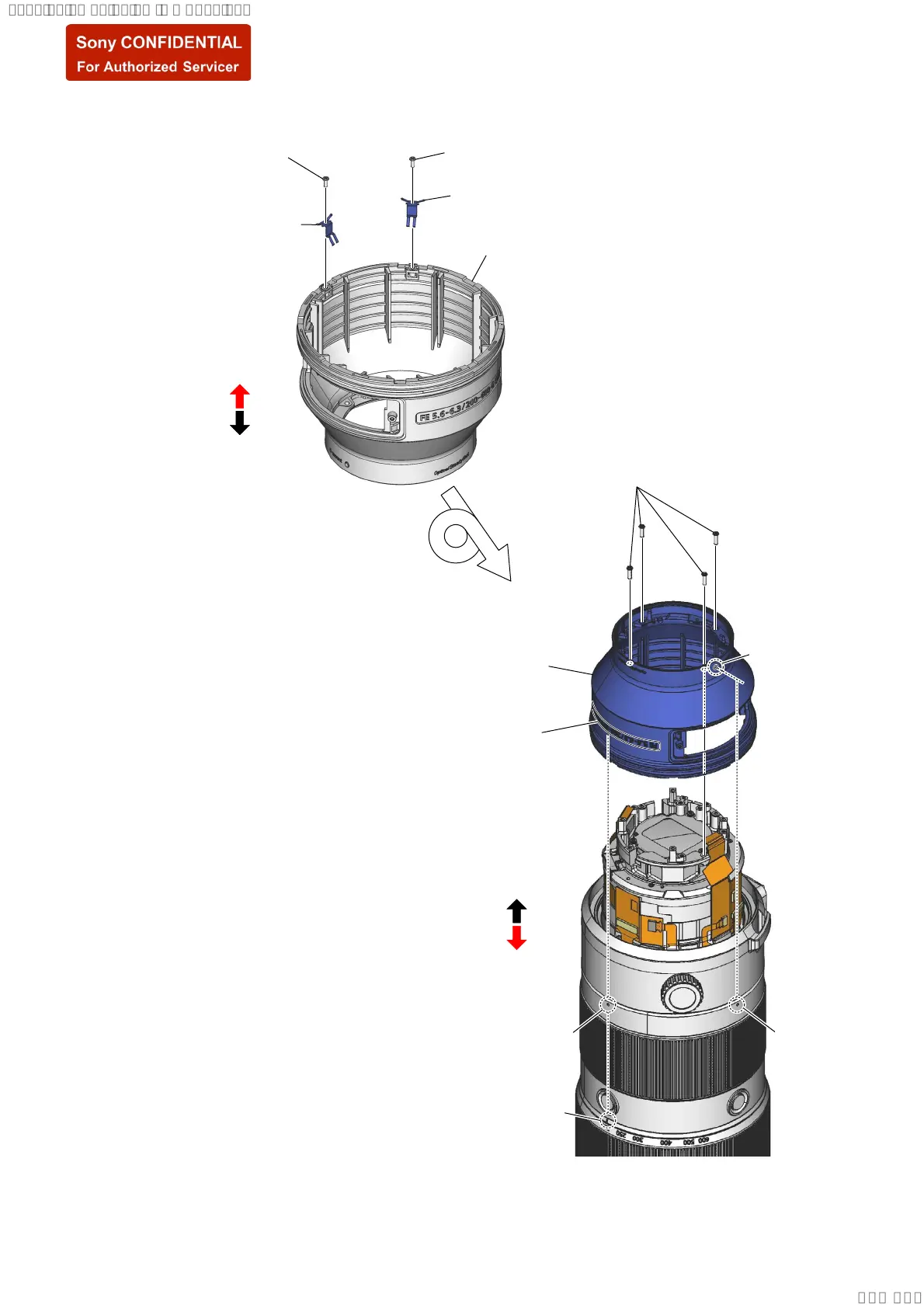

2-3-24. REAR OUTER RING ASSY
SYSSET
2019/06/2822:04:56(GMT+09:00)
