2-2
HDR-CX550/CX550E/CX550V/CX550VE/XR550/XR550E/XR550V/XR550VE_L2
ST-230基板のストロボ用充電コンデンサ（C5012）は最大
315Vの電圧で充電されています。
この高電圧で充電されたコンデンサに手を触れた場合，
電気ショックを受けます。この高電圧には単にセットの
電源を切っただけでは放電されず，残留しています。こ
のため，下記の方法で残留電圧を放電してください。
ショート治具は1kΩ/1W抵抗（1-215-869-11）の両端に
小型のクリップを接続して作成します。
抵抗器は絶縁テープで完全に覆い電気ショックを受けな
いようにしてください。
The charging capacitor (C5012) of the ST-230 board is charged
up to the maximum 315 V potential.
There is a danger of electric shock by this high voltage when the
capacitor is handled by hand. The electric shock is caused by the
charged voltage which is kept without discharging when the main
power of the unit is simply turned off. Therefore, the remaining
voltage must be discharged as described below.
Preparing the Short Jig
To preparing the short jig, a small clip is attached to each end of
a resistor of 1 kΩ /1 W (1-215-869-11).
Wrap insulating tape fully around the leads of the resistor to
prevent electrical shock.
– ENGLISH – – JAPANESE –
NOTE FOR REPAIR
• Make sure that the flat cable and flexible board are not cracked
of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
• When remove a connector, don’t pull at wire of connector. It is
possible that a wire is snapped.
• When installing a connector, don’t press down at wire of con-
nector.
It is possible that a wire is snapped.
• Do not apply excessive load to the gilded flexible board.

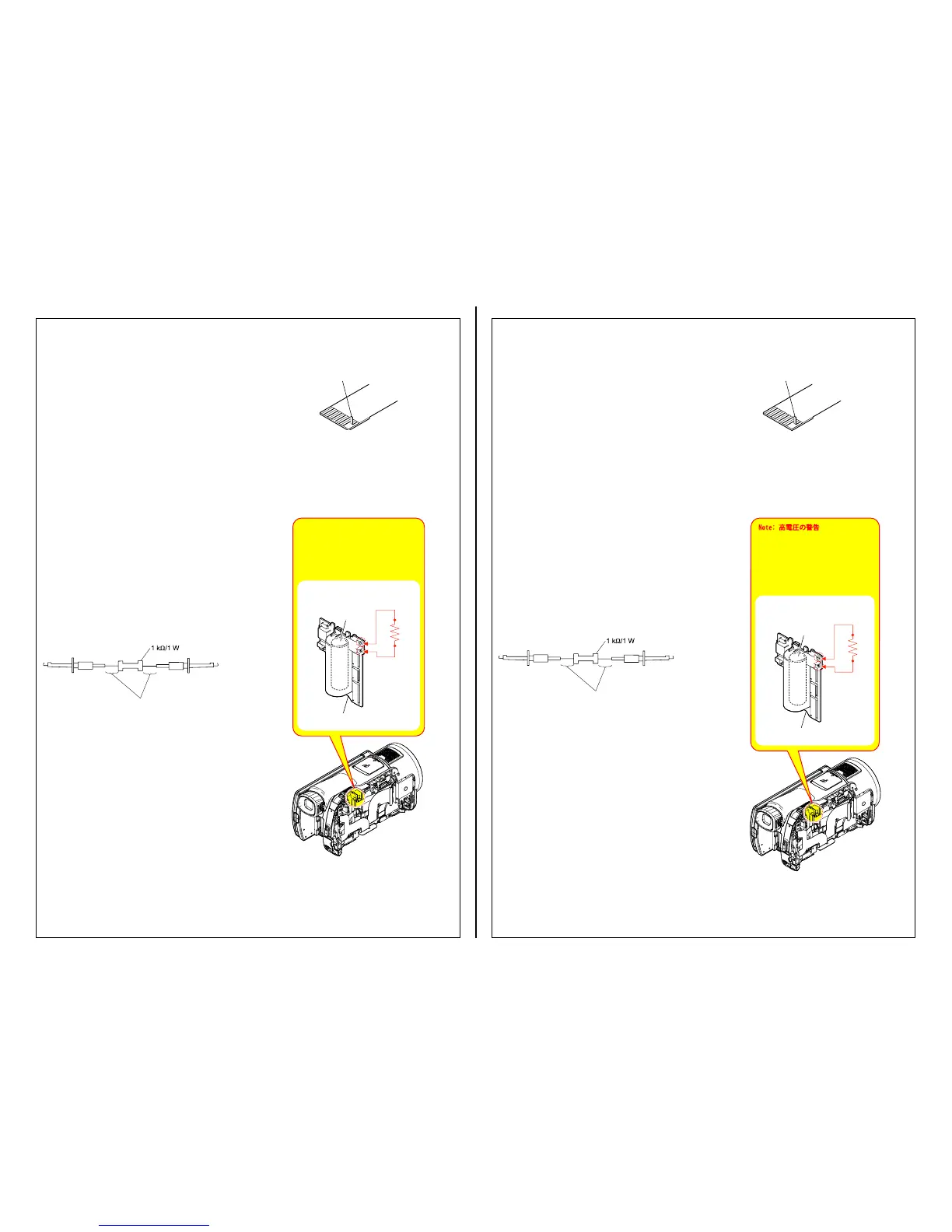

DISCHARGING OF THE ST-230 BOARD'S CHARGING CAPACITOR (C5012)
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)
Wrap insulating tape.
Note: High-voltage cautions
Discharging the Capacitor
Short-circuit between two points
with the short jig about 10 seconds.
Be careful not to touch the metal plate
with the shot jig.
R:1 k
Ω
/1 W
(Part code: 1-215-869-11)
ST-230
C5012
ST-230 Board
ST-230
コンデンサの放電
フラッシュユニットの電源コンデンサ
の端子間をショート治具で約10秒間
接続する。
ショート治具が板金に触れないよう
注意してください。
R:1 kΩ / 1 W
(部品コード：1-215-869-11 )
C5012
ST-230 Board
To Next Page
