2-10
HDR-CX550/CX550E/CX550V/CX550VE/XR550/XR550E/XR550V/XR550VE_L2

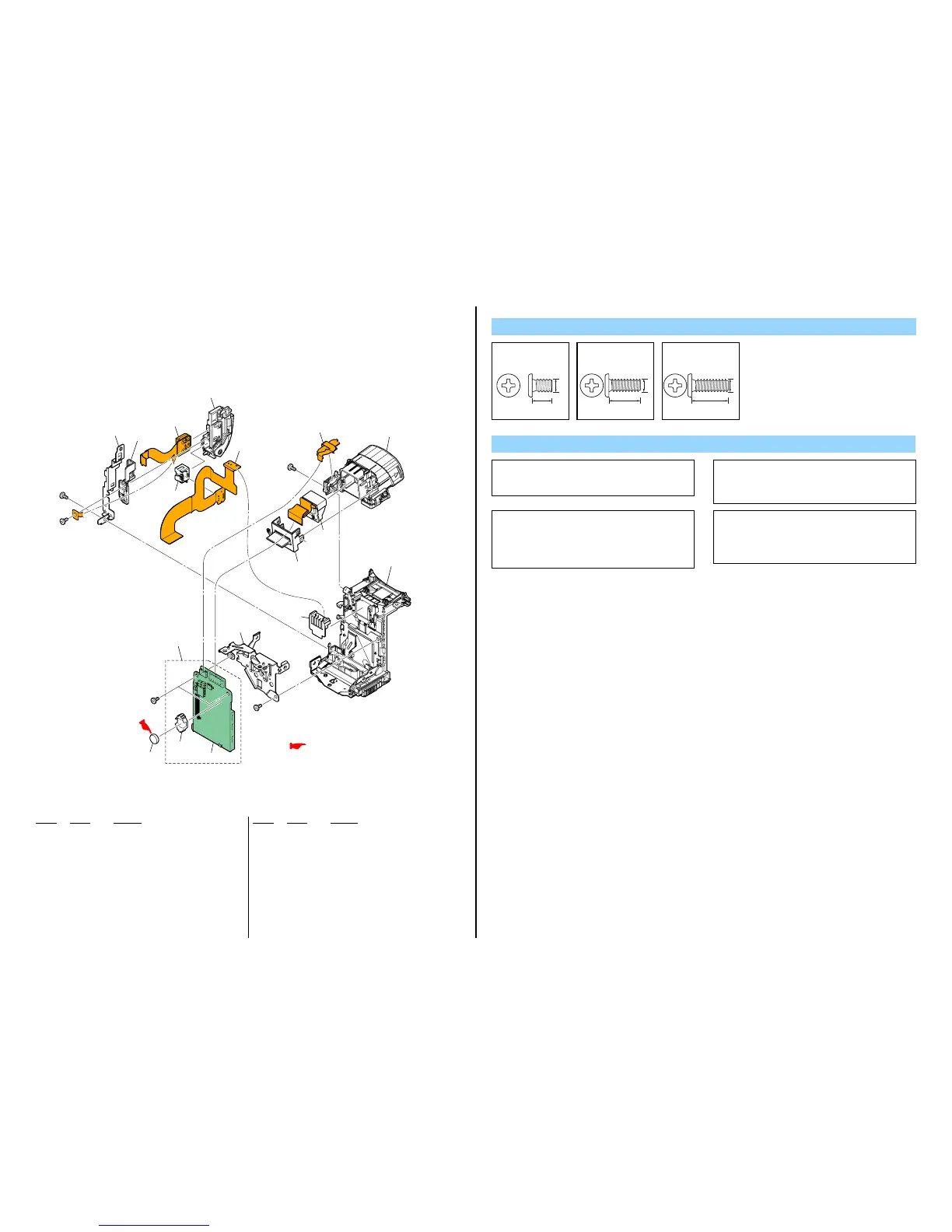

2-1-8. BT/EVF SECTION
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
* 351 4-178-009-01 PLATE, TERMINAL HOLDER FIXED
* 352 4-178-008-01 RETAINER, TERMINAL
353 A-1765-111-A FP-1197 FLEXIBLE BOARD, COMPLETE
354 X-2547-056-1 HOLDER (346) ASSY, TERMINAL
(CX550/CX550E/CX550V/CX550VE)
354 X-2547-057-1 HOLDER (347) ASSY, TERMINAL
(XR550/XR550E/XR550V/XR550VE)
355 1-880-389-11 FP-1207 FLEXIBLE BOARD
356 A-1765-107-A FP-1199 FLEXIBLE BOARD, COMPLETE
357 X-2547-060-1 EYE CUP ASSY
* 359 4-178-033-01 VF RETAINER
360 X-2547-055-1 BT PANEL ASSY
* 361 4-178-007-01 BT FRAME
362 A-1765-294-A MM-094 BOARD, COMPLETE (SERVICE)
BH001 1-780-064-21 BATTERY TERMINAL BOARD
*BH7301 1-251-928-21 SOCKET, BATTERY (Note)
BT7301 1-756-134-12 BATTERY, STORAGE, LITHIUM (Note)
J001 1-815-792-11 CONNECTOR, DC-IN (7.2V)
LCD902 1-811-013-11 LCD MODULE (FL0906)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#11 3-078-890-11 SCREW, TAPPING
#12 3-080-204-21 SCREW, TAPPING, P2
MM-094
#12
#11
#3
#11
#12
LCD902
BH001
360
357
356
354
353
351
352
355
BH7301
(Note)
: BT7301 (LITHIUM STORAGE BATTERY)
Board on the mount position.
(See page 6-30 of LEVEL3)
ns
BT7301
(Note)
J001
359
362
361
Screw
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
Note
Note: Replace the battery holder (BH7301) together when replac-
ing the lithium storage battery (BT7301) on the MM-094
board.
(The battery holder removed once cannot be used
again.)
When mounting these parts, mount new battery holder first
and attach new lithium storage battery next.
Note:
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
注意
:
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
To Next Page
