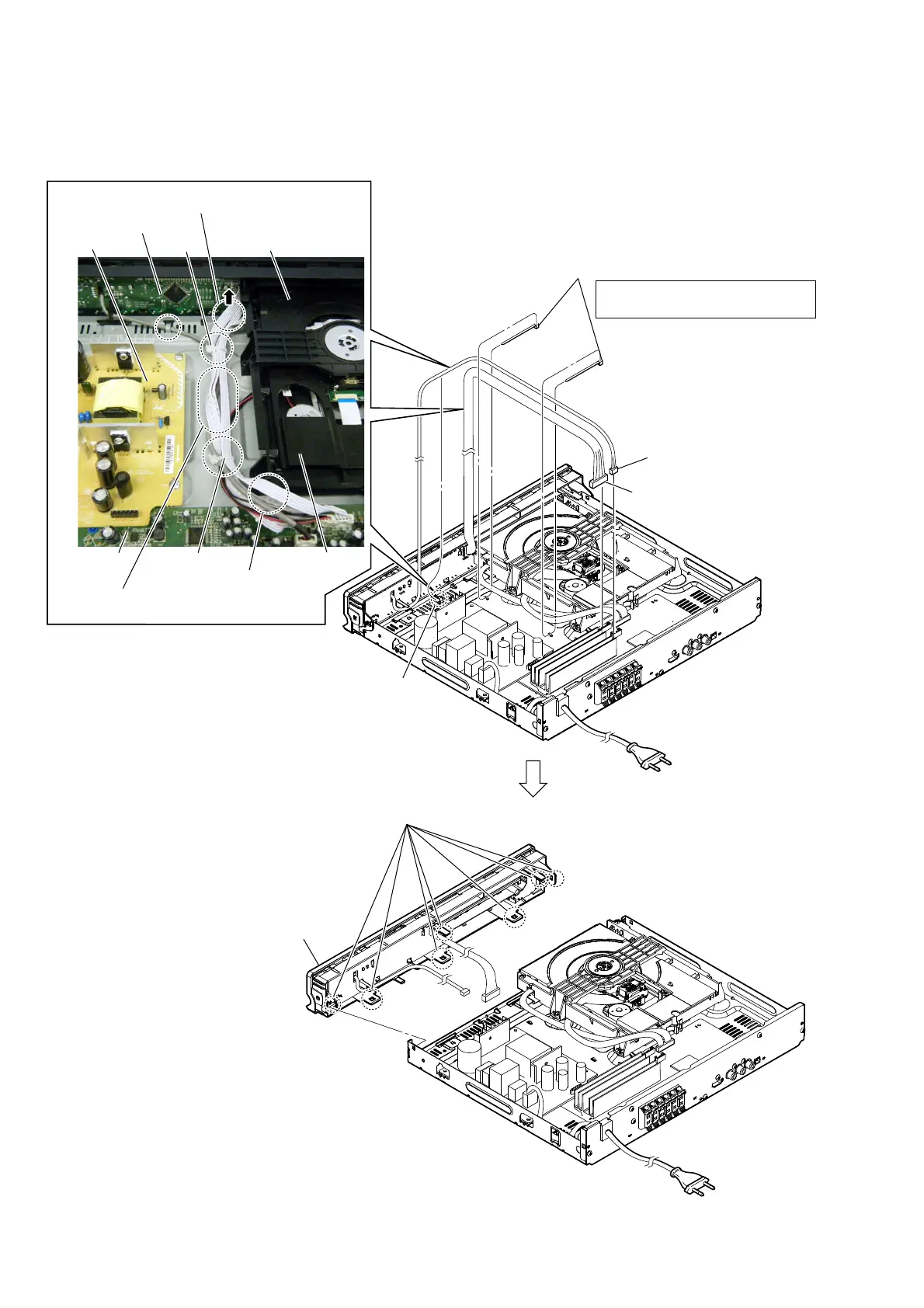

2-5. FRONT CABINET BLOCK
2 connector
(CN202)
3 connector
(CN203)
4 claw
1 Cut two wire ties.
Note:
In reassembling, use new wire tie
to fasten the clamp same as before.
5 seven claws
6
front cabinet block
wire tie
wire tie
tray
CONTROL board
MAIN board
POWER board
DVD mechanism deck
(CMS-S76RFS3G)
Bring the slack part to the front side.
Check that this portion is not slack.
This portion must not touch the POWER board.
This portion must not touch the tray.
