HBD-TZ140
SECTION 4
EXPLODED VIEWS
1 4-412-506-01 DOOR
2 9-885-144-66 +BVTT 3X7 CZN3 (POINT CIRCLE)
3 9-885-144-64 +BVTT 3X6 BZN3
4 4-412-511-01 SS TOP COVER
5 9-885-166-84 WIRE TIE
0 ACP1 9-885-167-25 AC PLUG ADAPTER (E32, PH)
0 PW1 9-885-166-49 AC CORD (US, CND, MX)
0 PW1 9-885-166-50 AC CORD (AEP, RU, E3, E32, SAF, SP1, PH)
0 PW1 9-885-166-51 AC CORD (UK)
0 PW1 9-885-166-52 AC CORD (AU1)
0 PW1 9-885-166-53 AC CORD (TH)
0 PW1 9-885-166-55 AC CORD (BR)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
• Abbreviation
AU1 : Australian and New Zealand
models
BR : Brazilian model
CND : Canadian model
E3 : Middle East & African models
(Except South African)
E32 : Latin American model
(Except Brazilian, Mexican)
MX : Mexican model
PH : Philippines model
RU : Russian model
SAF : South African model
SP1 : South East Asian (Except Indian,
Thai), East Asian (Hong Kong,
Mongolia), Oceanian (Except
Australian, New Zealand) models
TH : Thai model

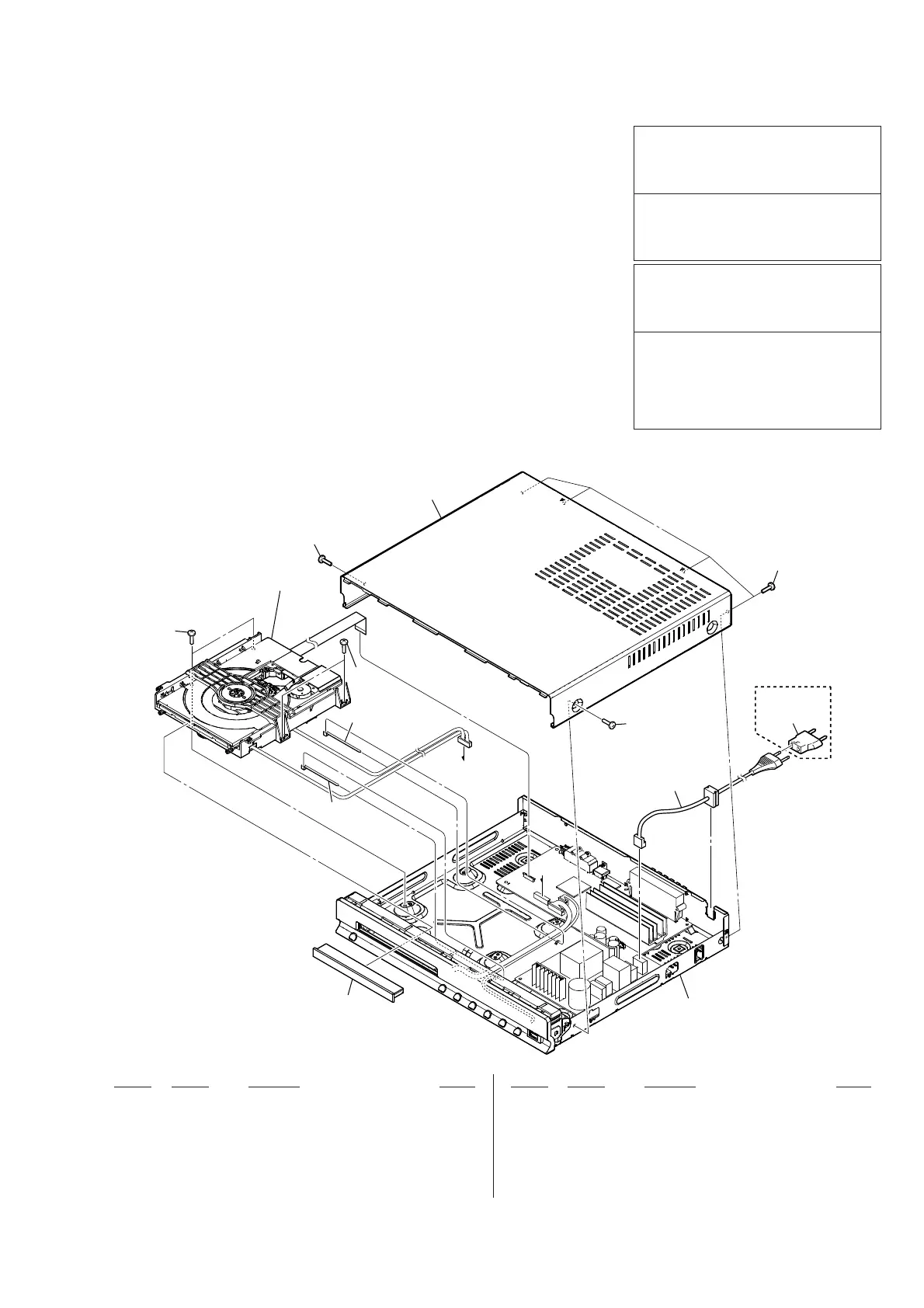

4-1. TOP COVER SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
1
2
DVD mechanism deck section
(F-8829F1)
chassis section
ACP1
PW1
A
A
(E32, PH)
3
4
3
3
2
5
5
To Next Page
