HBD-TZ140
7

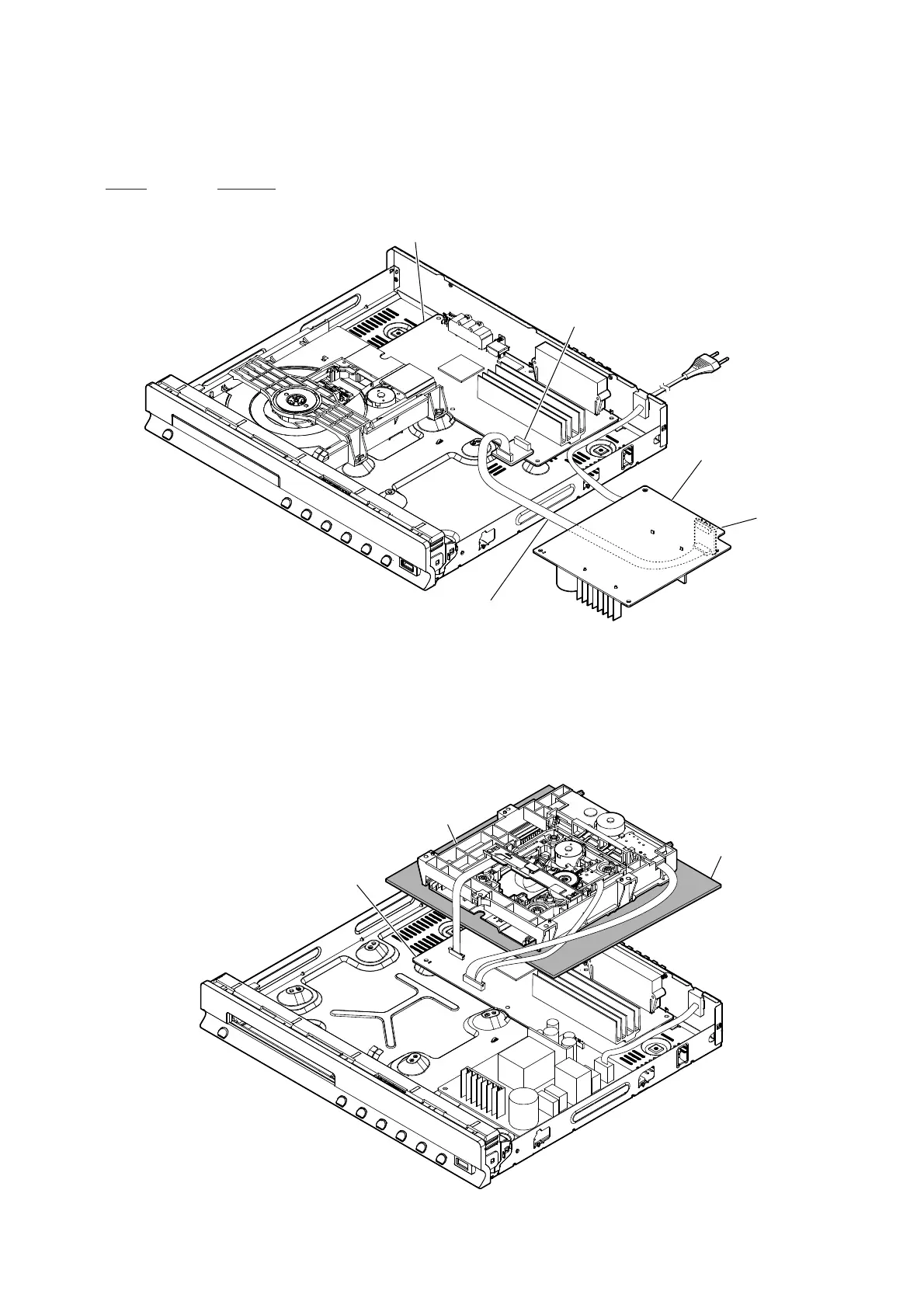

POWER BOARD SERVICE POSITION
• Connect the MAIN board (CN500) and the POWER board (CN901) with the jig cable.
Jig cable:
Part No. Description
A-1866-921-A TZ140/145 SERVICE JIG ASSY
POWER boar
d
(CN901)
MAIN board
(CN500)
MAIN board
POWER board
TZ140/145 service jig assy
DVD MECHANISM DECK SERVICE POSITION
DVD mechanism deck
(F-8829F1)
MAIN board
insulating sheet
