HBD-TZ140
6

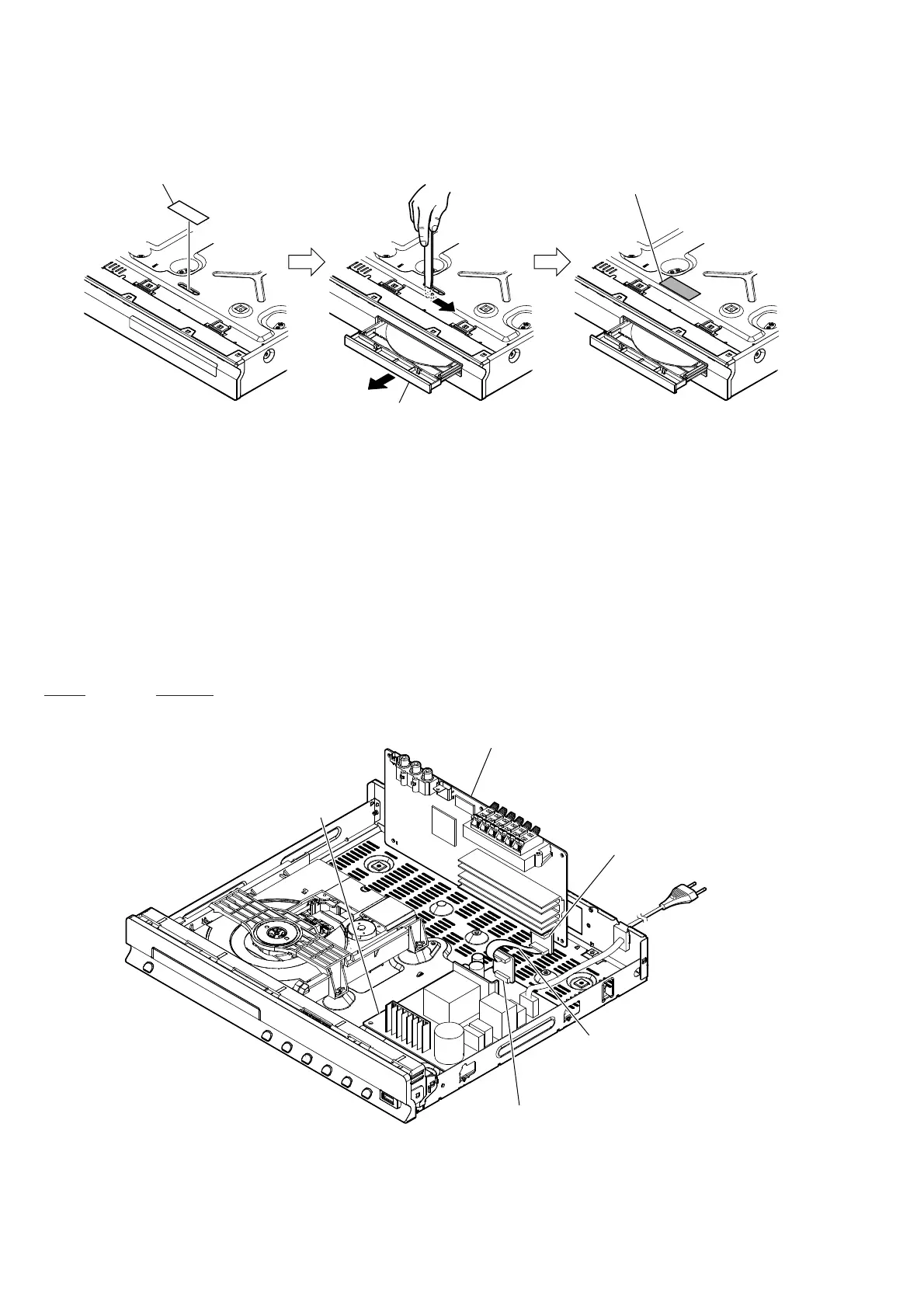

3 Pull out the disc tray.
2 Insert the tweezers etc. in the hole of the
chassis, and push the lever in the direction
of the arrow.
1 Remove the sheet.
4 Paste the sheet again.
– Bottom view –
HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
MAIN BOARD SERVICE POSITION
• Connect the MAIN board (CN500) and the POWER board (CN901) with the jig cable.
Jig cable:
Part No. Description
A-1866-921-A TZ140/145 SERVICE JIG ASSY
TZ140/145 service jig assy
POWER board
(CN901)
MAIN board
MAIN board
(CN500)
POWER board
To Next Page
