Sony HBD-TZ140 Service Manual

HBD-TZ140
14

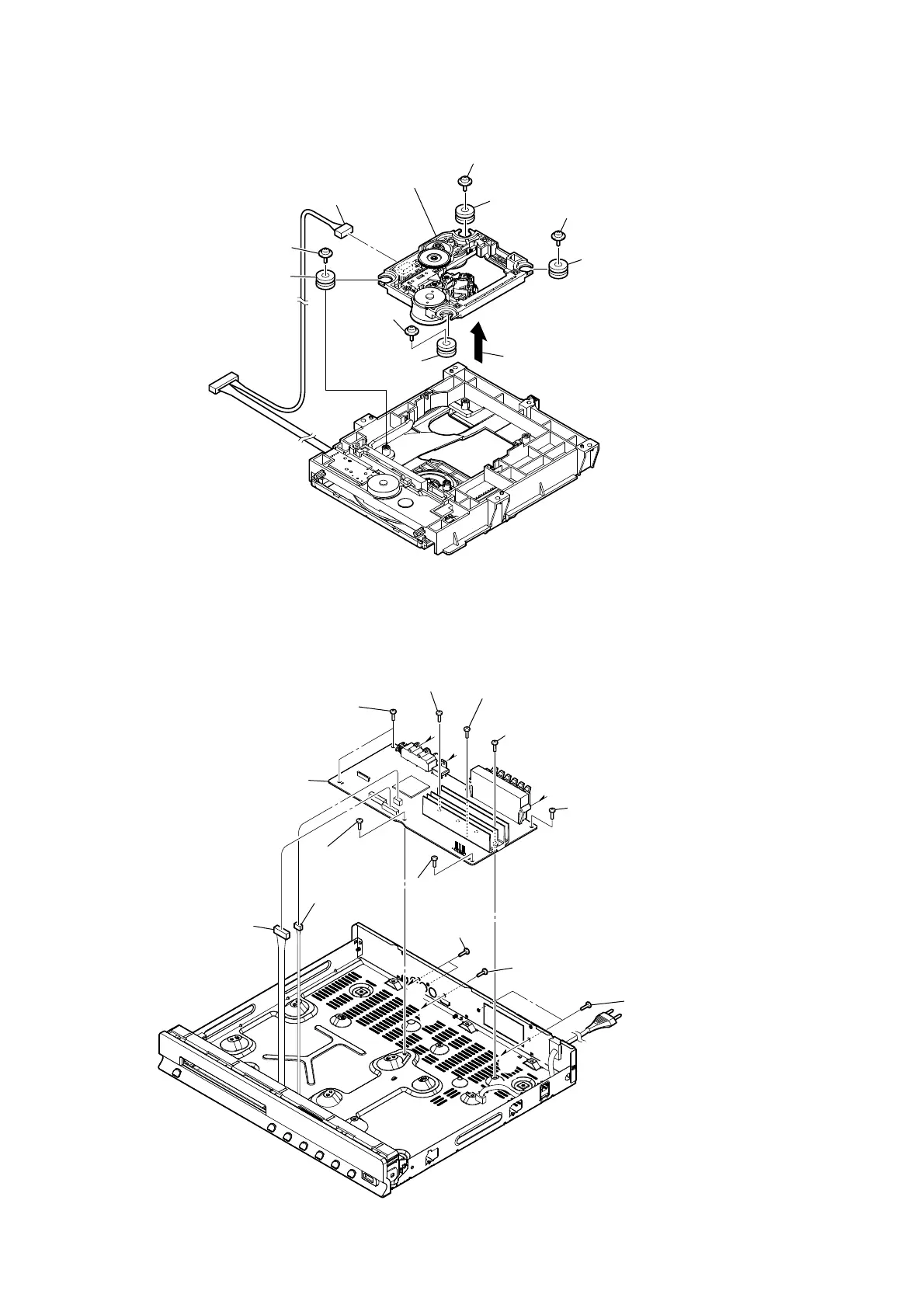

2-9. OPTICAL PICK-UP (CMS-S76RFS3G)
5
optical pick-up
(CMS-S76RFS3G)
1
insulator screw
3
connector
– DVD mechanism deck bottom view –
2 Remove the
optical pick-up
(CMS-S76RFS3G) in the
direction of the arrow.
1
insulator screw
4
insulator
4
insulator
4
insulator
1
insulator screw
1
insulator
screw
4
insulator
2-10. MAIN BOARD
4 two screws
(BVTT3 u 7)
4 screw
(BVTT3 u 7)
4 screw
(BVTT3 u 7)
4 screw
(BVTT3 u 7)
4 screw
(BVTT3 u 7)
7 MAIN board
6 two screws
(P3 u 10)
6 two screws
(P3 u 10)
5 screw
(BVTT3 u 6)
3 heat sink screw
3 heat sink screw
1 connector
(CN202)
2 connector
(CN203)
B
A
A
B
C
C
