HBD-TZ210/TZ230/TZ510/TZ630/TZ710
13

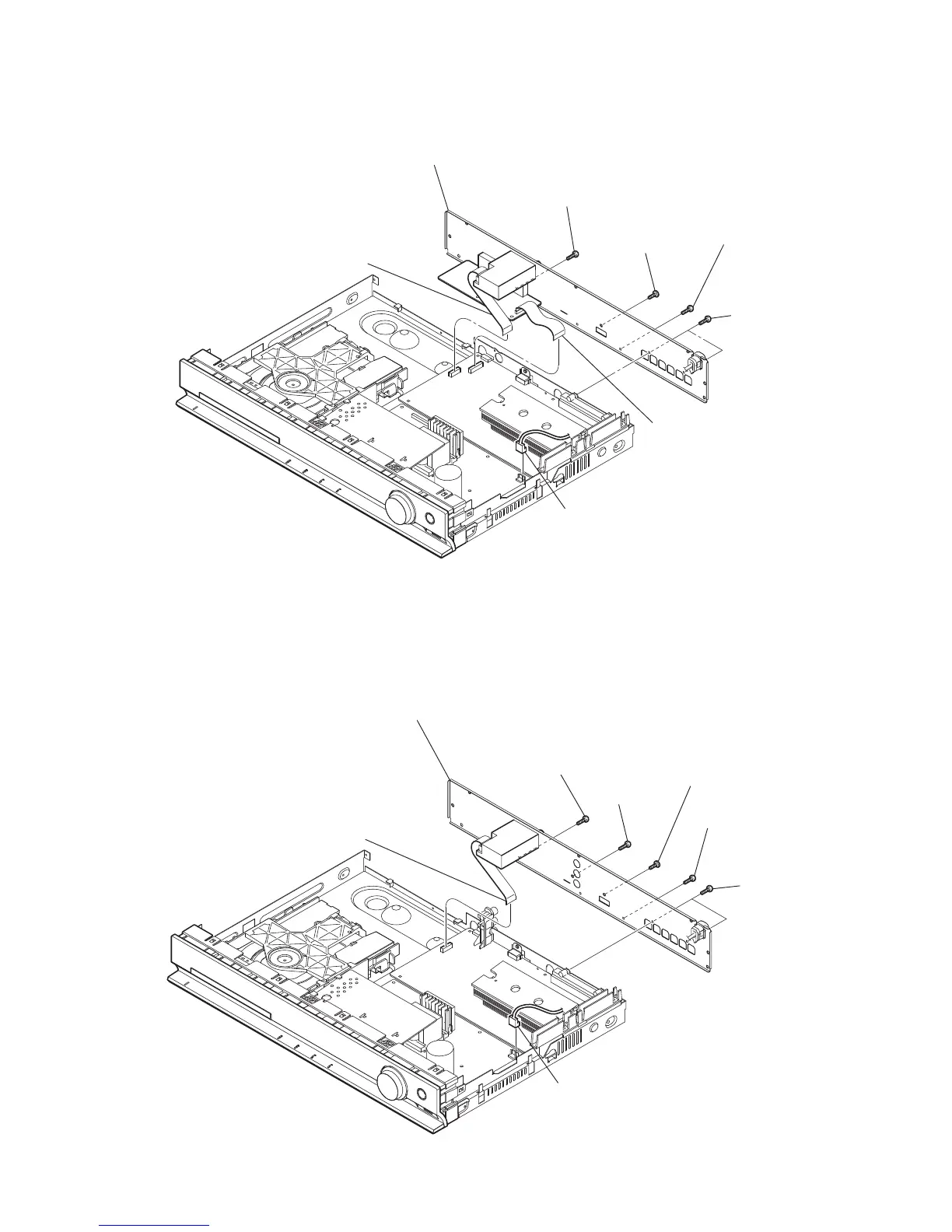

2-6. BACK PANEL SECTION (TZ230/TZ630)
2-7. BACK PANEL SECTION (TZ210/TZ510/TZ710)
5 screw
(+B 3 u6)
2 wire (flat type) (17 core)
(CN402)
3 wire (flat type) (9 core)
(CN400)
8 back panel section
1 CN901 (2P)
4 screw
(+BV3 (3-CR))
6 screw
(+BV3 (3-CR))
7 two screws
(+BV3 (3-CR))
5 screw
(+B 3 u6)
2 wire (flat type) (9 core)
(CN400)
8 back panel section
1 CN901 (2P)
3 screw
(+BV3 (3-CR))
4 screw
(+BV3 (3-CR))
6 screw
(+BV3 (3-CR))
7 two screws
(+BV3 (3-CR))
