HBD-TZ210/TZ230/TZ510/TZ630/TZ710
9
Note: Follow the disassembly procedure in the numerical order given.

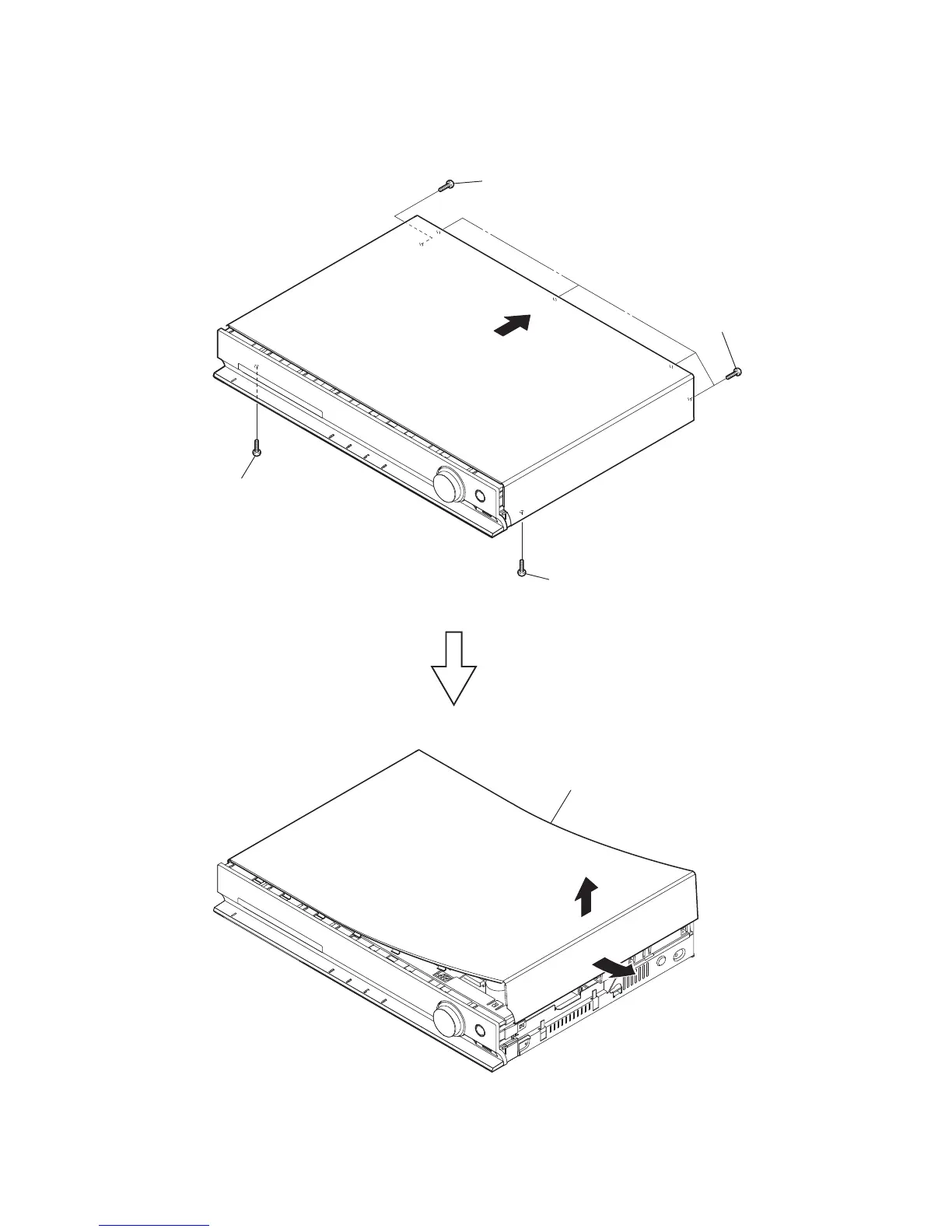

2-1. CASE (KZ)
8 case (KZ)
6 Raise one side of the case.
1 screw
(+BV3 (3-CR))
2 screw
(+BV3 (3-CR))
3 four screws
(+BV3 (3-CR))
4 screw
(+BV3 (3-CR))
5
7
