HBD-TZ210/TZ230/TZ510/TZ630/TZ710
15

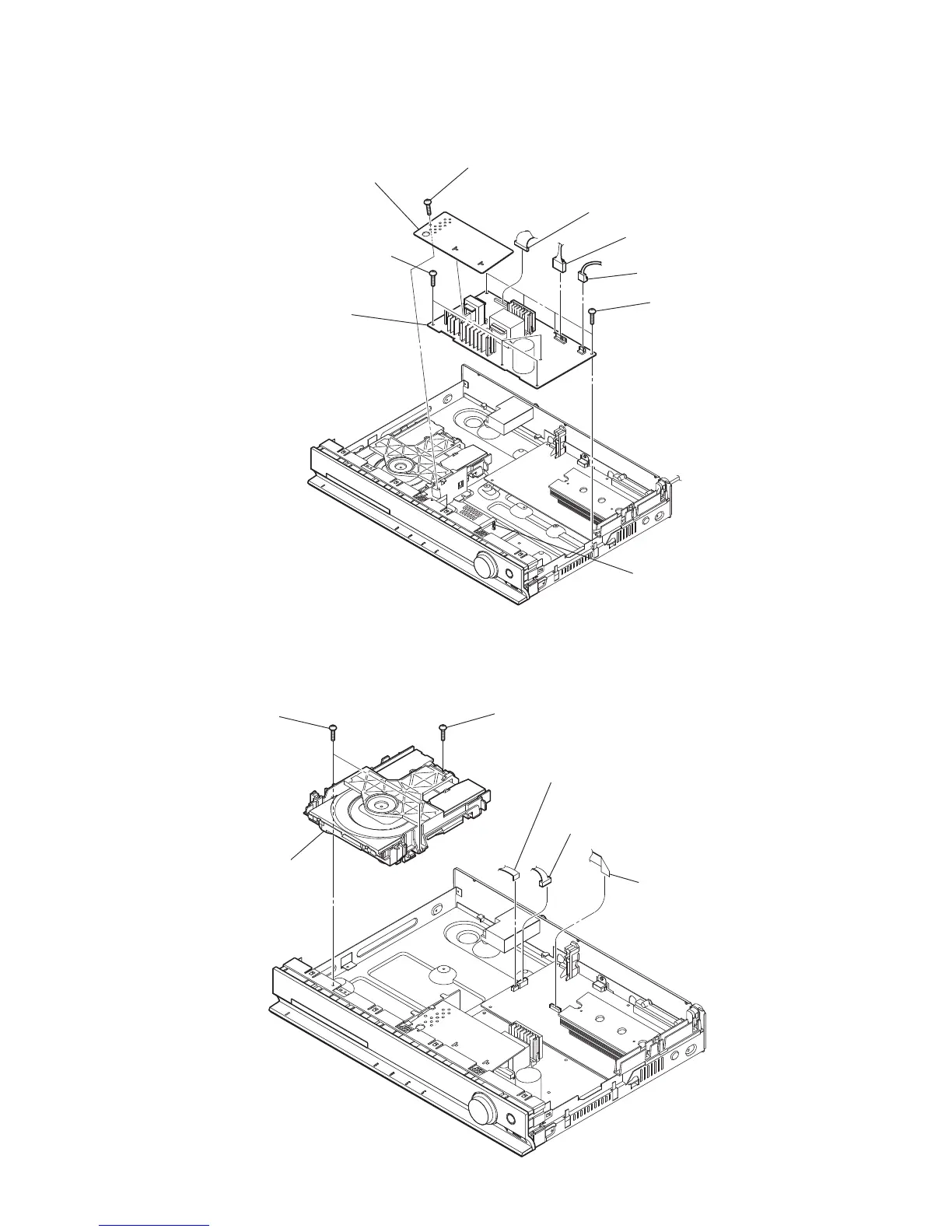

2-9. POWER BOARD
2-10. DVD MECHANISM DECK SECTION
1 CN901 (2P)
2 CN904 (5P)
3 CN906 (11P)
9 POWER board
6 four screws
(+BV3 (3-CR))
4 screw
(+BV3 (3-CR))
5 plate flow control (AMP)
8 holder PC board
7 four screws
(+BV3 (3-CR))
6 DVD mechanism deck
4 two screws
(+BV3 (3-CR))
5 screw
(+BV3 (3-CR))
2 CN1501 (6P)
1 wire (flat type) (24 core) (CN1101)
3 wire (flat type) (5 core)
(CN1502)
