Sony HBD-TZ715 Service Manual

HBD-TZ215/TZ715
16

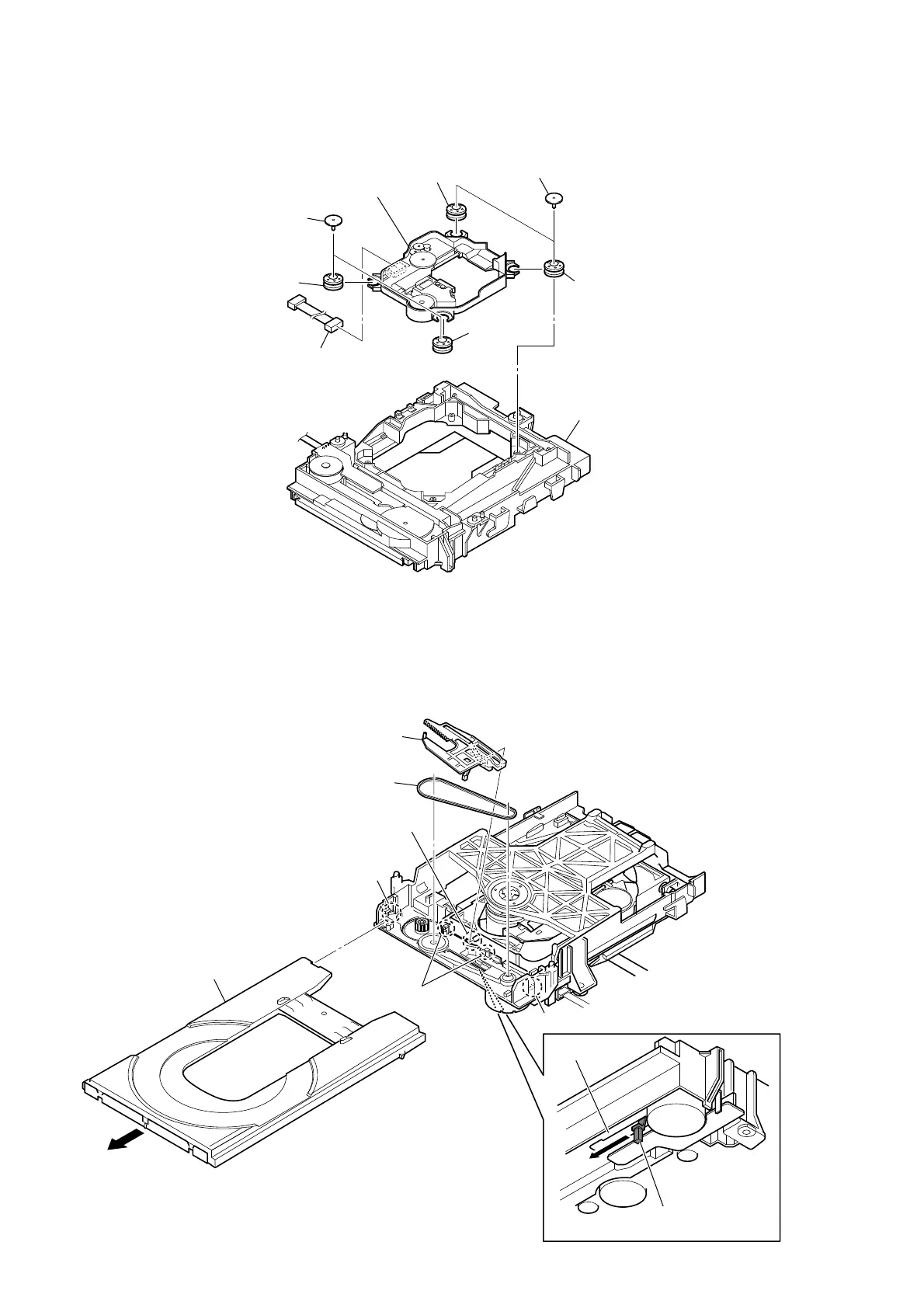

2-12. OPTICAL PICK-UP (KHM-313CAA)
2-13. BELT
5
optical pick-up
(KHM-313CAA)
1
two insulator screws
1
two insulator screws
3
insulator
3
insulator
3
insulator
3
insulator
4
connector
2
loading assy (M)
– DVD mechanism deck bottom view –
1 Push the lever in the
direction of the arrow.
3 claw
3 claw
5 two hooks
6 shaft
7 chuck cam
8 belt
2
bottom side
4 tray
