59
HBD-TZ215/TZ715

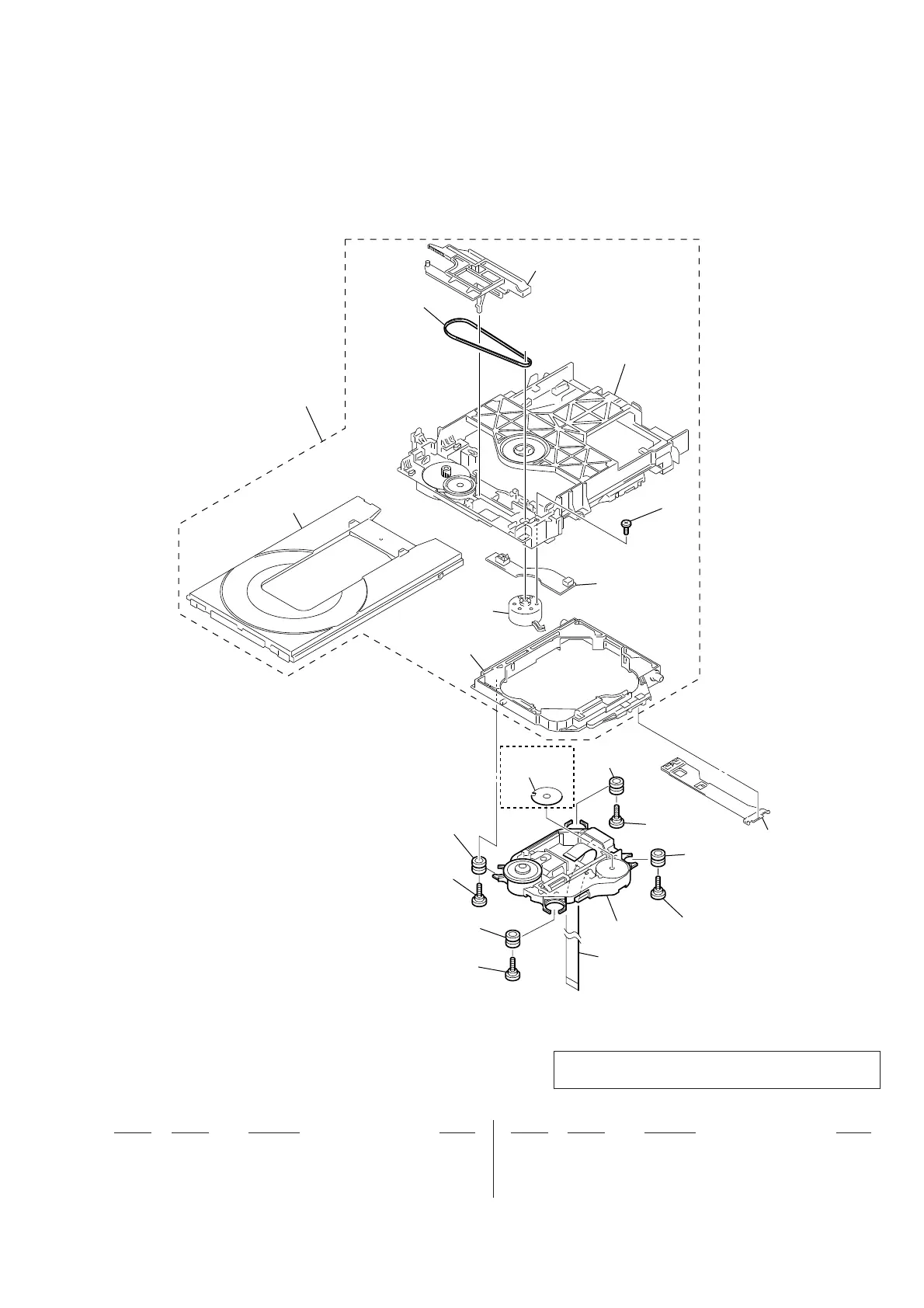

6-5. DVD MECHANISM DECK SECTION
(CDM85MB-DVBU102)
201 A-6071-669-A LOADING ASSY (M) (Including MS-203 board)
202 3-088-371-01 BELT
203 4-974-725-11 SCREW (M1.7X2.5), P
205 2-634-618-01 INSULATOR
206 3-087-599-01 INSULATOR SCREW
0 207 8-820-321-05 OPTICAL PICK-UP (KHM-313CAA/C2RP)
208 1-838-444-11 FLEXIBLE FLAT CABLE 24P
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
not supplied
not supplied
not supplied
loading motor
(M001)
MS-203 board
not
supplied
201
202
203
205
205
205
205
207
208
206
206
206
206
(E12)
Note: If the wire (fl at type) was replaced, refer to “2-15. HOW
TO BEND WIRE (FLAT TYPE)” on the page 17.
