Sony HCD-F50 User Manual

– 25 –

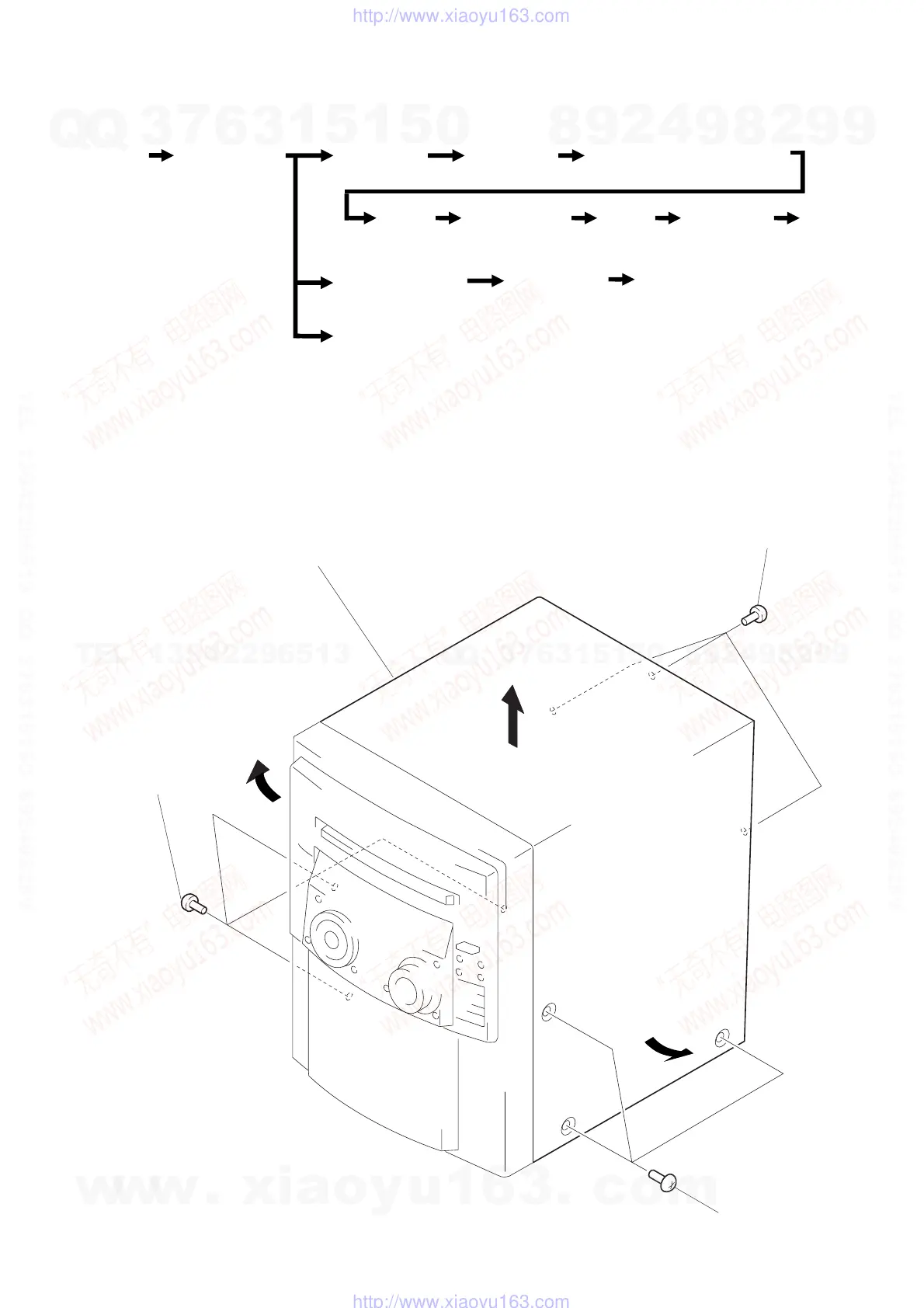

• This set can be disassembled in the order shown below.
SECTION 2
DISASSEMBLY
MAIN BOARD
(Page 27)
POWER TRANSFORMER (T901)
(Page 28)
CD MECHANISM
DECK SECTION
(Page 29)
BASE
UNIT
(Page 29)
BD BOARD,
SLED MOTOR
(M102)
(Page 30)
OPTICAL
PICK-UP
(KSS-213B/S-N)
(Page 30)
SUB
CHASSIS
(Page 28)
TAPE MECHANISM
DECK SECTION
(Page 31)
AUDIO BOARD
(Page 31)
BACK PANEL
(Page 27)
DOOR ASS’Y
(Page 26)
CAPSTAN MOTOR (M1)
(Page 32)
FRONT PANEL
SECTION
(Page 26)
CASE
(Page 25)
CASE
Note: Follow the disassembly procedure in the numerical order given.
3 case
2 three screws
(BVTP 3
× 8)
1 three screws
(CASE3 TP2)
1 three screws
(CASE3 TP2)
• Abbreviation
G : German
SP : Singapore
AUS : Australian
