– 95 –
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
CND : Canadian G : German
SP : Singapore AUS : Australia
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list are given in the last of
the electrical parts list.
SECTION 7
EXPLODED VIEWS
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.

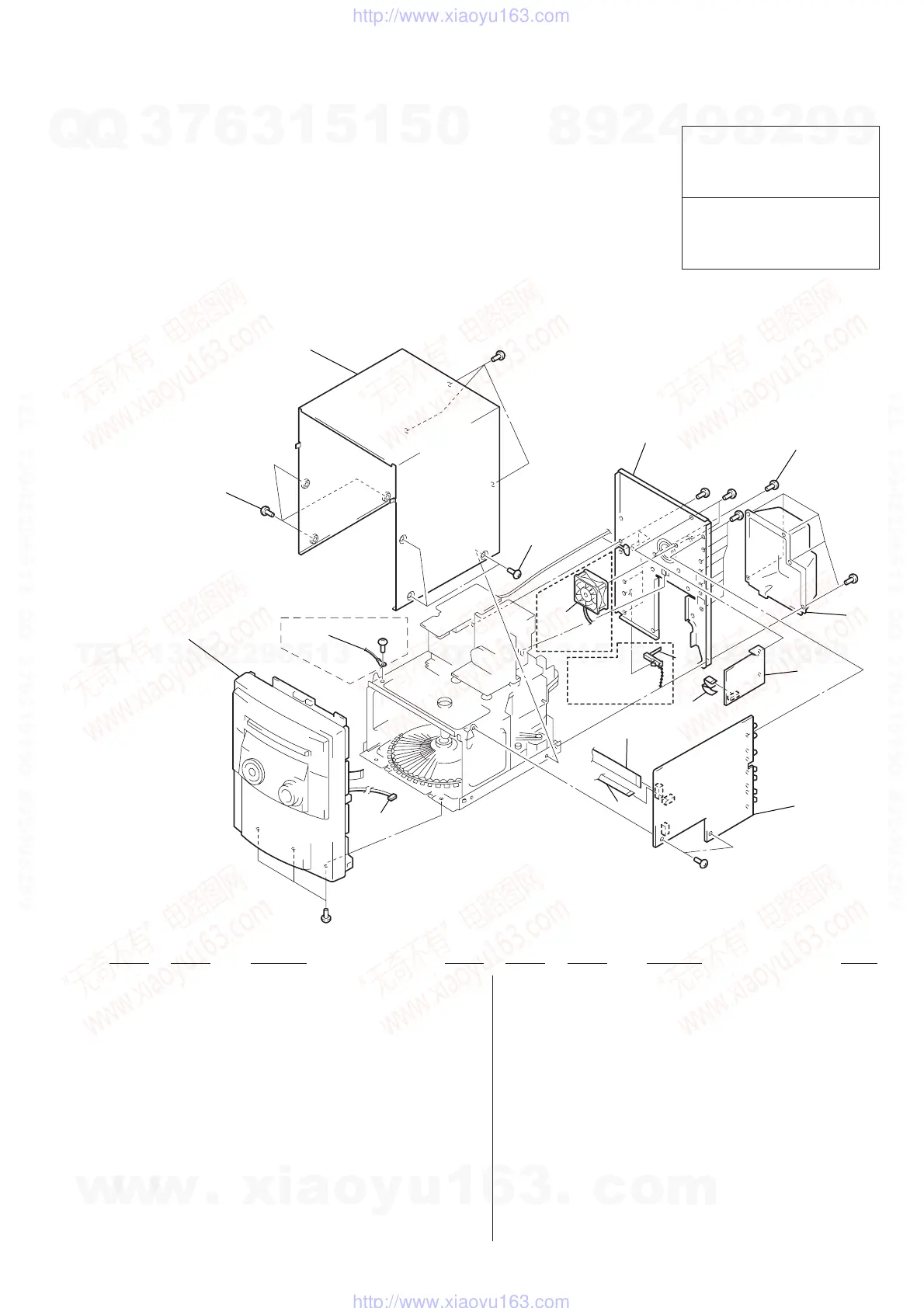

(1) CASE SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 3-363-099-01 SCREW (CASE 3 TP2)
* 2 4-990-363-01 CASE (F50)
* 2 4-990-363-21 CASE (F100/FR1)
* 3 4-990-364-01 PANEL, BACK (F100: US)
* 3 4-990-364-11 PANEL, BACK (F100: CND)
* 3 4-990-364-21 PANEL, BACK (FR1: AEP, UK, G)
* 3 4-990-364-51 PANEL, BACK (FR1: E)
* 3 4-990-364-61 PANEL, BACK (FR1: AUS)
* 3 4-990-364-91 PANEL, BACK (FR1: SP)
* 3 4-990-400-01 PANEL, BACK (F50: US)
* 3 4-990-400-11 PANEL, BACK (F50: CND)
4 4-956-370-12 BAND, PLUG FIXED (FR1: UK, AUS)
* 5 4-990-365-01 COVER
6 A-4303-574-A TCB BOARD (FR1: AEP, UK, G)
6 1-233-544-11 ENCAPSULATED COMPONENT (F50/F100)
2
1
1
3
5
6
8
10
9
7
4
#1
#1
FRONT PANEL SECTION
FR1: AEP, UK, G
not supplied
#2
#1
not supplied
FR1: UK, AUS
#1
#1
#1
#1(F100 / FR1
F100 / FR1
FAN101
#1
6 1-233-545-11 ENCAPSULATED COMPONENT (FR1: E, AUS)
6 1-233-546-11 ENCAPSULATED COMPONENT (FR1: SP)
7 1-769-971-11 WIRE (FLAT TYPE) (13 CORE)
(F50/F100/FR1: E, AUS)
7 1-773-003-11 WIRE (FLAT TYPE) (15 CORE) (90mm)
(FR1: AEP, UK, G, SP)
* 8 A-4398-366-A MAIN BOARD, COMPLETE (F50)
* 8 A-4398-368-A MAIN BOARD, COMPLETE (F100)
* 8 A-4398-394-A MAIN BOARD, COMPLETE (FR1: SP)
* 8 A-4398-400-A MAIN BOARD, COMPLETE (FR1: E)
* 8 A-4398-408-A MAIN BOARD, COMPLETE (FR1: AUS)
* 8 A-4398-413-A MAIN BOARD, COMPLETE (FR1: AEP, UK, G)
9 1-773-156-11 WIRE (FLAT TYPE) (21 CORE)
10 1-769-688-31 WIRE (FLAT TYPE) (11 CORE)
FAN101 1-698-792-11 FAN, DC (F100/FR1)
