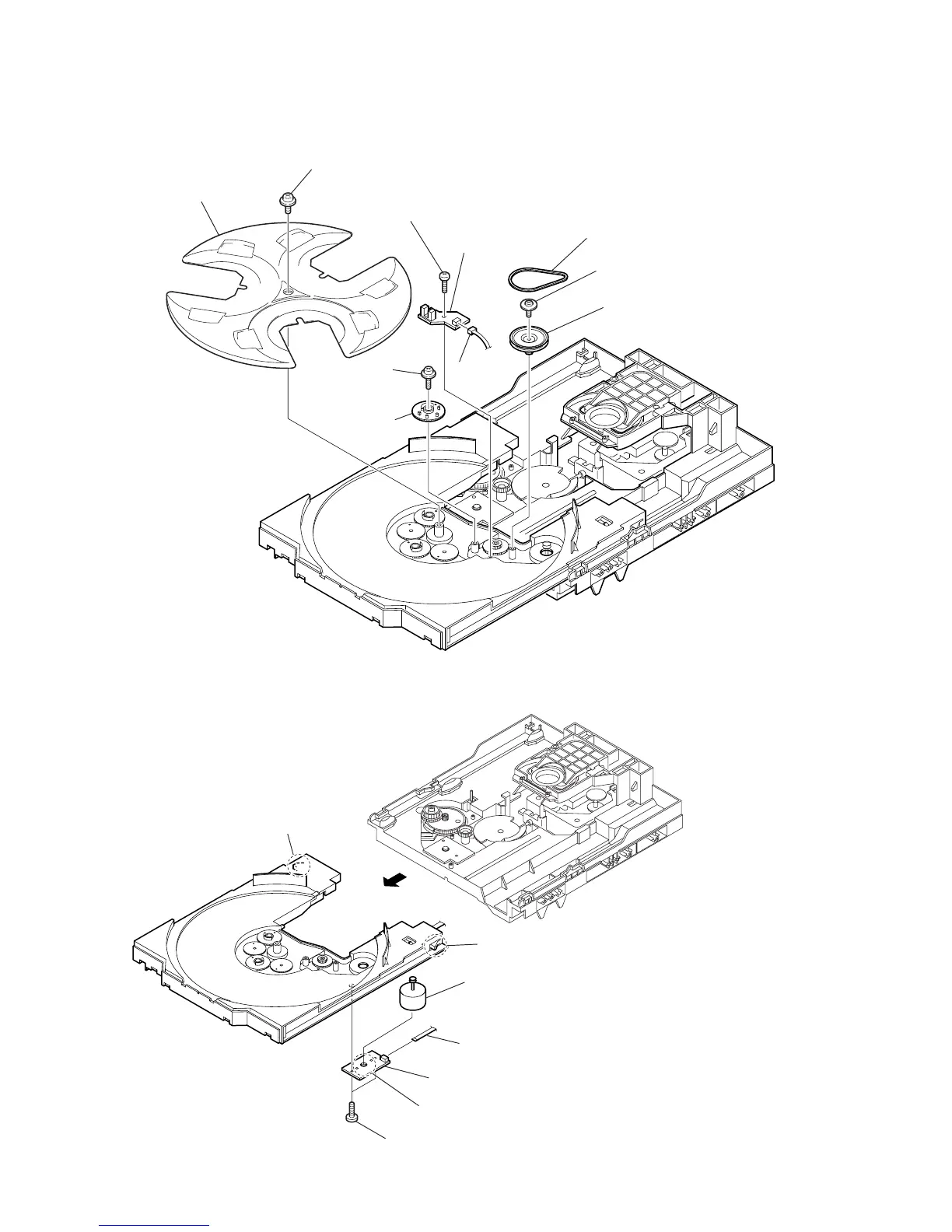

HCD-GX355/GX555/RG270/RG475/RG575
14
2
t
ray
3
b
elt (table)
5
p
ulley (table)
8
s
crew
(+BTTP (M2.6))
0
SENSOR board
7
g
ear (geneva)
9
connector
(
CN731)
1
floating
screw
(+PTPWH M2.6)
6
floating
screw
(+PTPWH M2.6)
4
floating
screw
(+PTPWH M2.6)
6
Remove the two solderings of motor.
7
MOTOR (TB) board
5
t
able motor assy (M741)
5
two
screws
(+BTTP (M2.6))
4
3
wire (flat type) 5 core (CN742)
1
stopper
2
stopper
3-12.
SENSOR BO
ARD
3-13.
MO
T
OR (TB) BO
ARD
13
15
Table of Contents
Default Chapter
1
Specifications
1
Table of Contents
4
1 Servicing Notes
5
2 General
6
3 Disassembly
8
Disassembly Flow
8
Case (Top)
9
Door (CD)
9
Front Panel Section
10
Mechanical Deck (CWM43FF13)
10
CD Mechanism Deck
11
MX Model)/Cdm74Kfs-F1BD84 (MX Model))
11
Back Panel Section
11
MAIN Board
12
BD Board/CD Board
12
DRIVER Board, SW Board
13
Optical Pick-Up (KSM-215DCP)
13
SENSOR Board
14
MOTOR (TB) Board
14
MOTOR (LD) Board
15
4 Test Mode
16
5 Electrical Adjustment
20
6 Diagrams
21
Block Diagram - CD SERVO Section
21
Block Diagram - AUDIO/VIDEO Section
22
Block Diagram - AMP Section
23
Block Diagram - PANEL, POWER SUPPLY Section
24
Printed Wiring Board - CD Board - (Except MX Model)
26
Schematic Diagram - CD Board - (Except MX Model)
27
Printed Wiring Board - BD Board - (MX Model)
28
Schematic Diagram - BD Board - (MX Model)
29
Printed Wiring Boards - CHANGER Section
30
Schemtic Diagram - CHANGER Setion
31
Printed Wiring Board - MAIN Board
32
Schematic Diagram - MAIN Board (1/3)
33
Schematic Diagram - MAIN Board (2/3)
34
Schematic Diagram - MAIN Board (3/3)
35
Printed Wiring Board - POWER Board
36
Schematic Diagram -POWER Board
37
Printed Wiring Board - SUB WOOFER Board - (GX555/RG475/RG575 Only)
38
Schematic Diagram - SUB WOOFER Board - (GX555/RG475/RG575 Only)
39
Printed Wiring Boards - AUDIO, MIC, HEADPHONE Boards
40
Schematic Diagram - AUDIO, MIC, HEADPHONE Boards
41
Printed Wiring Boards - CD-G Section - (MX Model Only)
42
Schematic Diagram - CD-G Section - (MX Model Only)
43
Printed Wiring Board - PANEL Section (1/2)
44
Printed Wiring Board - PANEL Section (2/2)
45
Schematic Diagram - PANEL Section (1/2)
46
Schematic Diagram - PANEL Section (2/2)
47
Printed Wiring Boards - TRANS Section
48
Schematic Diagram - TRANS Section
49
Driver Board
57
Main Board
58
7 Exploded Views
66
Overall Section
66
Back Panel Section
67
Front Panel Section
68
Key Section
69
Chassis Section
70
Transformer Section
71
CD Mechanism Deck Section-1 (CDM74KFS-F1BD81C) (Except MX Model)/ (CDM74KFS-F1BD84) (MX Model)
72
CD Mechanism Deck Section-2
72
CDM74KFS-F1BD81C) (Except MX Model CDM74KFS-F1BD84) (MX Model)
72
(CDM74KFS-F1BD81C) (Except MX Model)/ (CDM74KFS-F1BD84) (MX Model)
73
8 Electrical Parts List
74
Sub Woofer
90
Revision History
92
