73
HCD-GX355/GX555/RG270/RG475/RG575

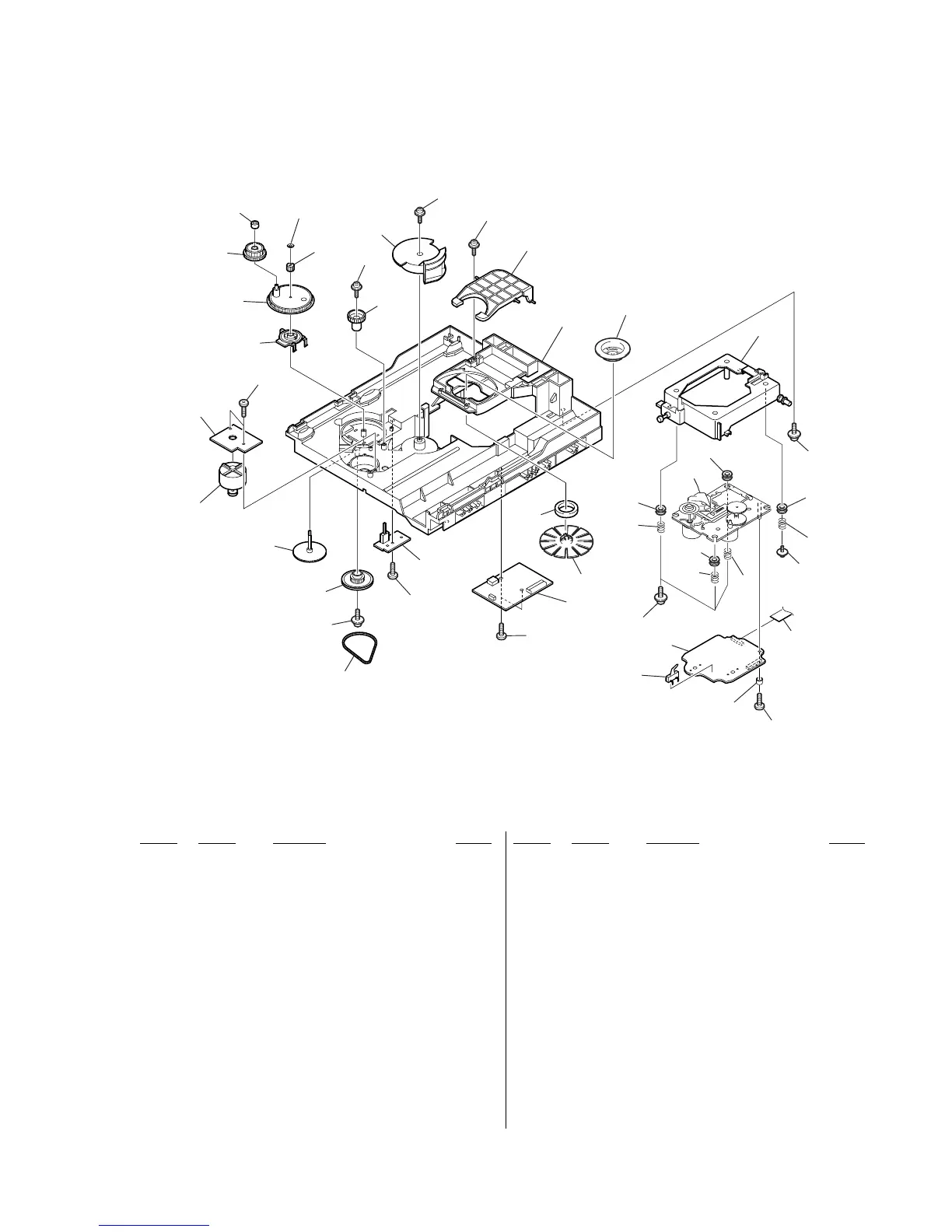

7-8. CD MECHANISM DECK SECTION-2
(CDM74KFS-F1BD81C) (EXCEPT MX model)/
(CDM74KFS-F1BD84) (MX model)
Ver. 1.1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
551 A-1103-756-A DRIVER BOARD, COMPLETE
552 4-218-253-52 SCREW (M2.6), +BTTP
553 1-687-669-12 SW BOARD
554 4-244-034-01 BELT (LOADING)
555 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
556 4-225-844-01 GEAR (LOADING A)
557 4-224-613-11 GEAR (SHAFT)
558 1-687-133-12 MOTOR (LD) BOARD
559 3-087-053-01 +BVTP2.6 (3CR)
560 4-244-108-01 GEAR, SWING
561 4-224-609-01 GEAR (LOADING C)
562 4-224-608-01 COLLAR, SWING
563 3-016-533-11 WASHER (FR), STOPPER
564 4-224-611-01 GEAR (LOADING B)
565 4-224-606-01 GEAR (RV)
566 4-243-818-01 GEAR (U/D)
567 4-243-822-02 LEVER (LIFTER)
568 X-2025-123-1 CHUCKING PULLEY (KH) ASSY
569 4-231-189-01 PULLEY (B), CHUCKING
570 X-4955-536-1 HOLDER (213) ASSY
572 4-227-549-11 INSULATOR
573 4-227-045-31 SPRING (INSULATOR), COIL
576 1-827-992-11 WIRE (FLAT TYPE) (16 CORE)
578 A-1095-982-A BD BOARD, COMPLETE (MX)
578 A-1091-086-A CD BOARD, COMPLETE (EXCEPT MX)
0 579 8-820-244-01 DEVICE, OPTICAL KSM-215DCP/C2NP
580 1-471-035-11 MAGNET ASSY
581 4-243-817-22 CHASSIS
M751 A-4736-655-A MOTOR ASSY, LOADING
S711 1-477-680-12 ENCODER, ROTARY
(DISC TRAY ADDRESS DETECT)
S101 1-771-853-11 SWITCH, DETECTION (LIMIT)
551
552
552
552
553
554
555
556
557
558
560
561
562
563
564
565
566
567
569
581
570
555
572
573
555
576
559
580
568
573
573
573
572
579
572
572
555
555
555
555
M751
S711
578
not supplied
S101
To Next Page
