HCD-GX355/GX555/RG270/RG475/RG575
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 3-254-142-01 SCREW (B3), (+) BV TAPPING
52 A-1094-102-A SUB TRANS BOARD, COMPLETE (GX555)
52 A-1094-103-A SUB TRANS BOARD, COMPLETE
(RG475: AEP, UK, EE, RU)
52 A-1094-104-A SUB TRANS BOARD, COMPLETE (AUS)
52 A-1094-105-A SUB TRANS BOARD, COMPLETE
(RG270: E2, E3, E51/RG475: E3, SP)
52 A-1094-108-A SUB TRANS BOARD, COMPLETE (GX355)
52 A-1094-109-A SUB TRANS BOARD, COMPLETE
(RG270: AEP, UK, EE, RU)
52 A-1094-110-A SUB TRANS BOARD, COMPLETE (EA)
52 A-1094-111-A SUB TRANS BOARD, COMPLETE (RG270: MX)
52 A-1094-112-A SUB TRANS BOARD, COMPLETE (RG270: AR)
52 A-1094-129-A SUB TRANS BOARD, COMPLETE
(RG575: E2, E51, SP)
52 A-1094-130-A SUB TRANS BOARD, COMPLETE (RG575: MX)
52 A-1094-131-A SUB TRANS BOARD, COMPLETE (RG575: AR)
53 A-1124-118-A VIDEO OUT BOARD, COMPLETE (RG575: MX)
53 A-1094-206-A VIDEO OUT BOARD, COMPLETE (RG270: MX)
54 1-828-975-11 WIRE (FLAT TYPE) (13 CORE) (MX)
55 4-951-620-11 SCREW (2.6X10), +BVTP (MX)
56 A-1094-204-A CD-G BOARD, COMPLETE (MX)
57 3-254-143-11 SCREW (B3), (+) BV TAPPING
58 2-549-976-01 PANEL, BACK (GX555: US)
58 2-549-976-11 PANEL, BACK (GX555: CND/
RG475 :AEP, UK, EE, RU, AUS/RG575: AR)
58 2-549-976-21 PANEL, BACK
(RG475: E3, SP/RG575: E2, E51, SP)
58 2-549-976-31 PANEL, BACK (GX355: US)
58 2-549-976-41 PANEL, BACK (GX355: CND/
RG270: AEP, UK, EE, RU, AR, AUS)
58 2-549-976-51 PANEL, BACK (RG270: E2, E3, E51)
58 2-549-976-61 PANEL, BACK (RG270: EA)
58 2-549-976-71 PANEL, BACK (RG270: MX)
58 2-549-977-31 PANEL, BACK (RG575: MX)
59 1-828-963-11 WIRE (FLAT TYPE) (11 CORE)
(EXCEPT AEP, UK, EE)
59 1-828-980-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK, EE)
60 1-693-615-11 TUNER (FM/AM)
(E2, E3, E51, EA, MX, AR, AUS, SP)
60 1-693-616-11 TUNER (FM/AM) (AEP, UK, EE)
60 1-693-617-11 TUNER (FM/AM) (RU)
60 1-693-631-31 TUNER (FM/AM) (US, CND)
M001 1-787-319-11 FAN, DC

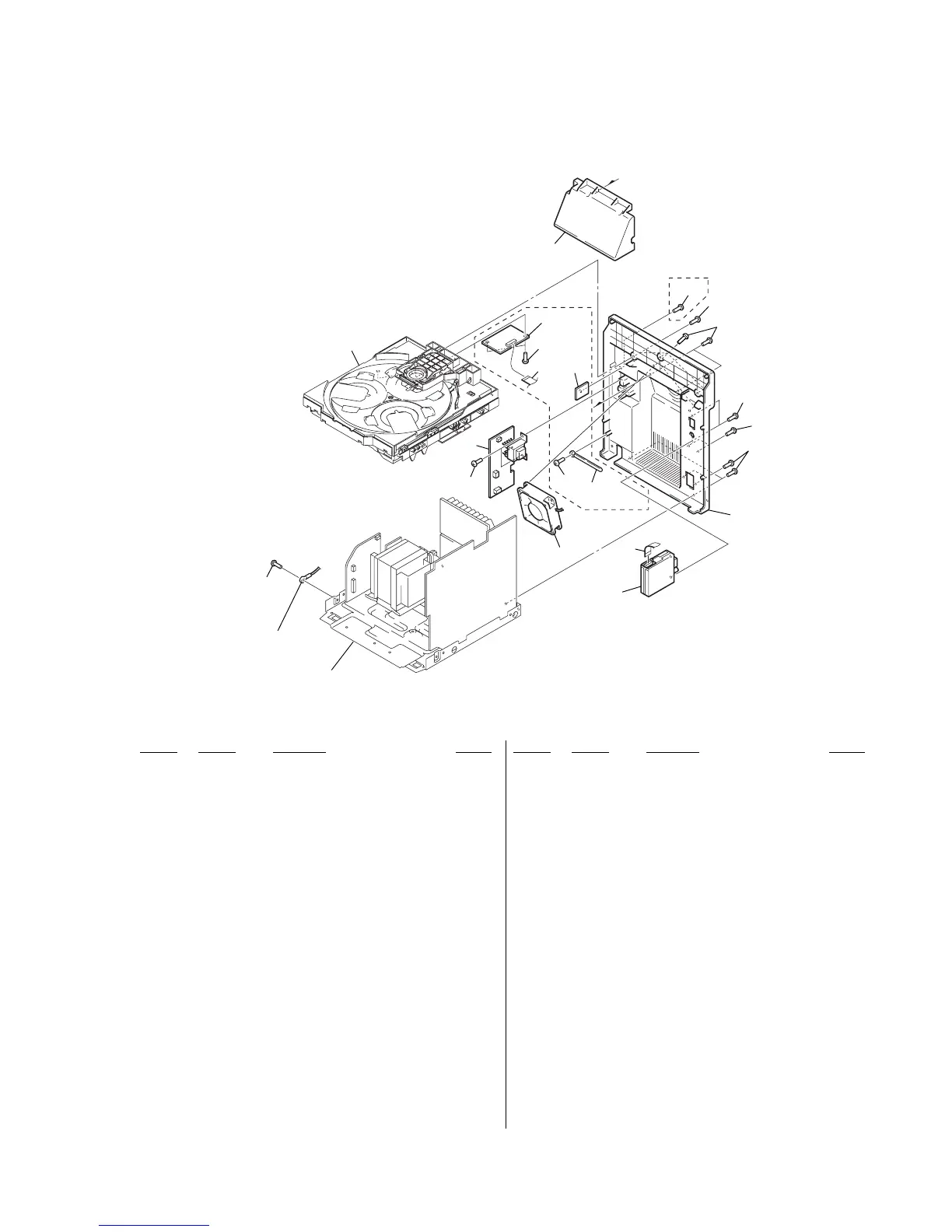

7-2. BACK PANEL SECTION
57
52
56
53
55
54
51
59
60
57
57
57
57
58
not
supplied
(MX)
(MX)
M001
chassis section
not supplied
CD mechanism
section-1
57
51
51
not
supplied
Ver. 1.1
