HCD-GX355/GX555/RG270/RG475/RG575
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-252-829-01 SCREW (B3), (+) BV TAPPING
2 2-348-866-01 DOOR (CD) (GX555)
2 2-348-866-11 DOOR (CD) (RG475)
2 2-348-866-31 DOOR (CD) (GX355)
2 2-348-866-41 DOOR (CD)
(RG270: AEP, UK, EE, RU, E3, EA, AUS)
2 2-348-866-51 DOOR (CD) (RG270: E2, E51, MX, AR)
2 2-580-021-21 DOOR (CD) (RG575)
3 3-254-143-11 SCREW (B3), (+) BV TAPPING
4 2-599-855-01 CASE (SIDE-L) (US)
4 2-599-855-11 CASE (SIDE-L) (EXCEPT US)
5 3-363-099-32 SCREW (CASE 3 TP2)
6 2-599-854-01 CASE (TOP) (US)
6 2-599-854-11 CASE (TOP) (EXCEPT US)
7 2-599-856-01 CASE (SIDE-R) (US)
7 2-599-856-11 CASE (SIDE-R) (EXCEPT US)

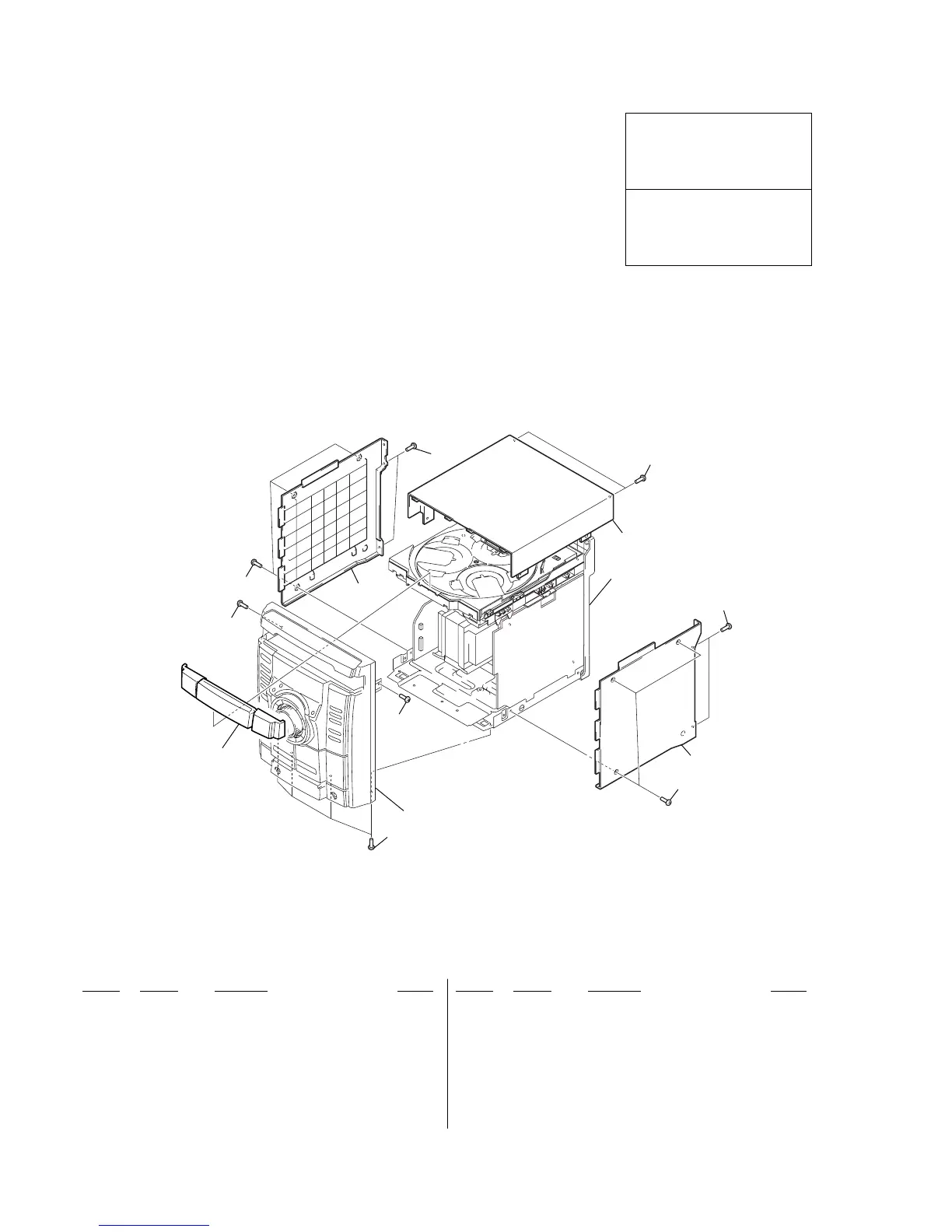

7-1. OVERALL SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
• Abbreviation
AR : Argentine model
AUS: Australian model
CND : Canadian model
E2 : 120V AC Area in E model
E3 : 240V AC Area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
EE : East European model
MX : Mexican model
RU : Russian model
SP : Singapore model
2
3
5
3
6
3
7
5
4
1
3
back panel section
front panel section
3
Ver. 1.1
To Next Page
