HCD-GX355/GX555/RG270/RG475/RG575
7-7. CD MECHANISM DECK SECTION-1
(CDM74KFS-F1BD81C) (EXCEPT MX model)/
(CDM74KFS-F1BD84) (MX model)
Ver. 1.1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
501 4-218-253-62 SCREW (M2.6), +BTTP
502 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
503 1-687-134-12 MOTOR (TB) BOARD
504 4-243-815-01 TABLE (LOADING)
505 4-245-571-02 GEAR (STOPPER)
506 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
507 4-245-570-01 GEAR (JOINT)
508 4-245-572-01 BUSHING (GEAR)
509 1-687-132-12 SENSOR BOARD
510 4-243-820-01 GEAR (TABLE)
511 4-243-819-01 GEAR (GENEVA)
512 4-243-816-11 TRAY
513 4-243-823-01 BELT (TABLE)
514 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
515 4-243-821-01 PULLEY (TABLE)
516 3-231-598-01 SHEET (BA)
M741 A-4723-963-A MOTOR ASSY, TABLE
504
505
505
506
506
507
507
508
508
509
501
512
506
513
514
515
510
511
514

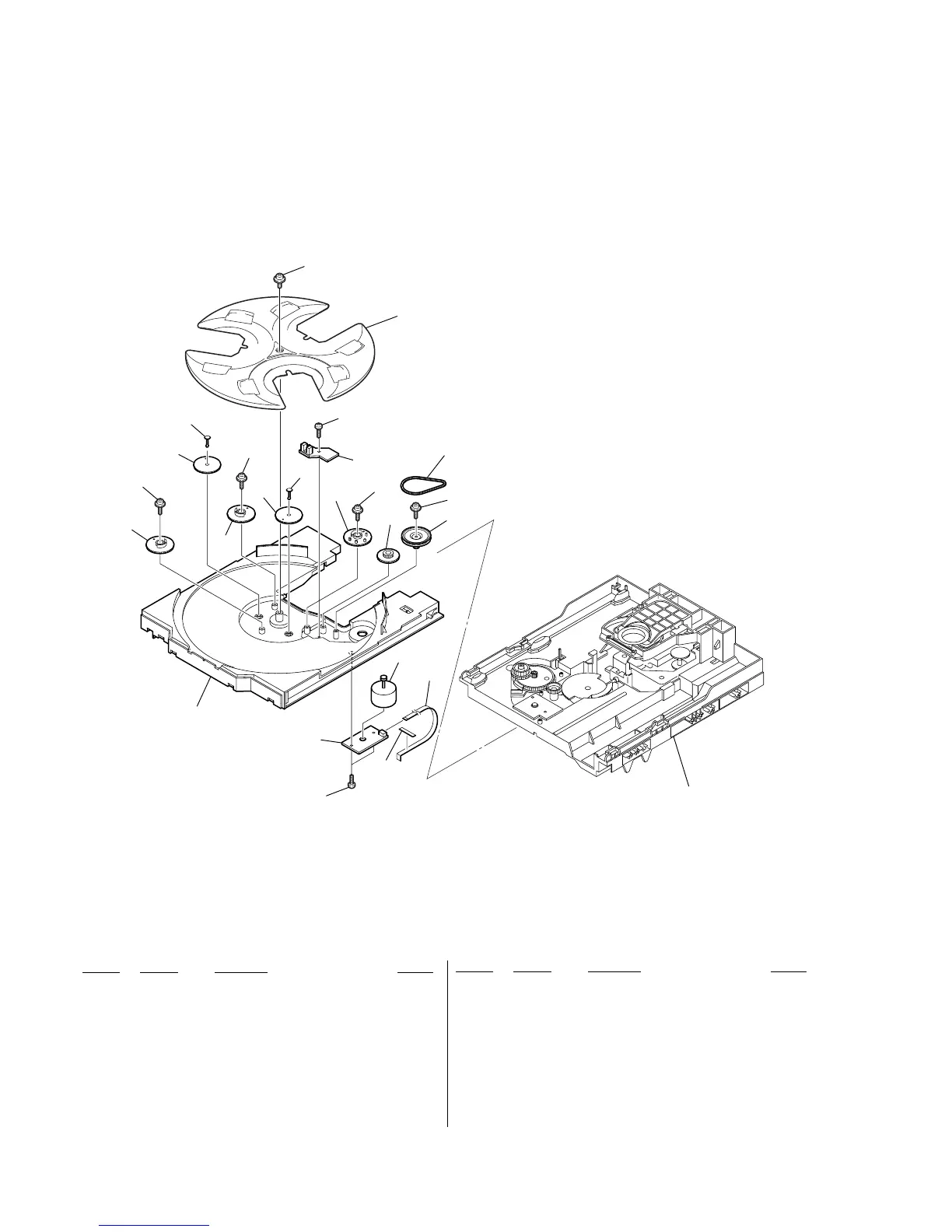

CD mechanism deck section-
2
501
502
503
516
M741
