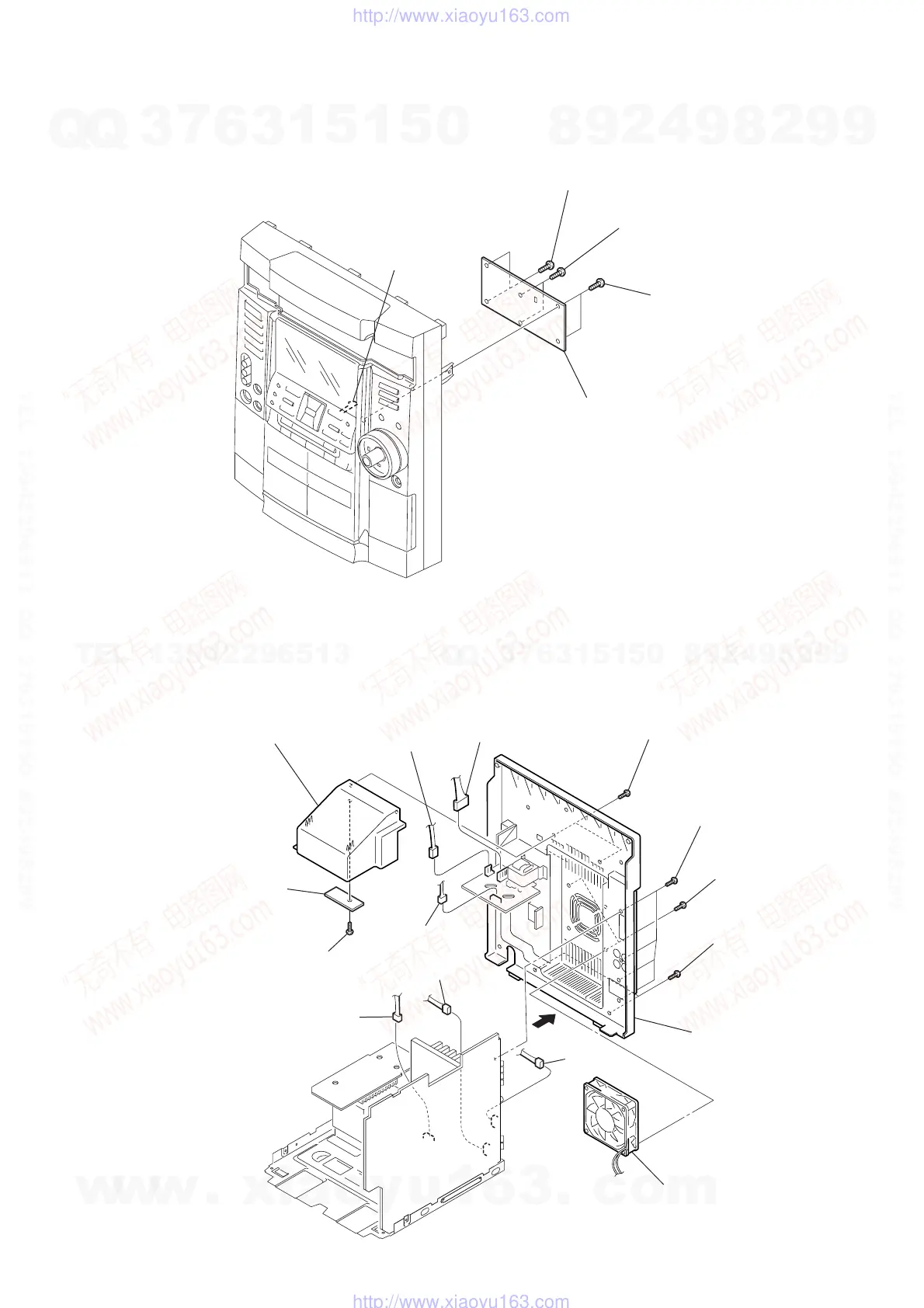

3-7. KEY BOARD
3-8. SENSOR BOARD, DC F
AN (F
AN961)
1
two
screws
(+BVTP 2.6
×
8)
2
two
screws
(+BVTP 2.6
×
8)
3
two
screws
(+BVTP 2.6
×
8)
4
KEY board
claw
qs
six screws
(+BVTP 3
×
10)
qa
two screws
(+BVTT 3
×
6)
qf
panel back
qd
qg
two screws
(+BVTP 3
×
16)
7
two screws
(+BVTP 3
×
10)
9
screw
(+BVTP 2.6
×
8)
8
cover (duct)
0
SENSOR board
2
CN2
1
CN901
3
CN903
4
CN504
5
CN304
6
CN305
qh
DC fan (FAN961)
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com
12
14
Table of Contents
Table of Contents
4
Service Note
5
3 Disassembly
9
Case (Top)
9
CD (Door)
10
Front Panel Section
11
Tape Mechanism Deck
12
Key Board
13
Main Board, Power Amp Board
14
Driver Board, Motor Board, Sensor (CD) Board
15
4 Diagrams
16
Circuit Boards Location
16
Printed Wiring Board –BD Section
18
Schematic Diagram –BD Section
19
Printed Wiring Boards –CD Section
20
Schematic Diagram –CD Section
21
Printed Wiring Board –Video Section
22
Schematic Diagram –Main Section (1/4)
26
Schematic Diagram –Main Section (2/4)
27
Schematic Diagram –Main Section (3/4)
28
Schematic Diagram –Main Section (4/4)
29
Printed Wiring Boards –Main Section
30
Printed Wiring Boards –Panel Section (HCD-RV2)
31
Printed Wiring Board –Key Section (HCD-RV2)
32
Schematic Diagram –Panel Section (HCD-RV2)
33
Printed Wiring Boards –Panel Section (HCD-RV5)
34
Printed Wiring Board –Key Section (HCD-RV5)
35
Schematic Diagram –Panel Section (HCD-RV5)
36
Printed Wiring Boards –Panel Section (HCD-RV6)
37
Printed Wiring Board –Key Section (HCD-RV6)
38
Schematic Diagram –Panel Section (HCD-RV6)
39
Printed Wiring Board Power Amp Section (HCD-RV2)
40
Printed Wiring Board –Trans Section (HCD-RV2)
41
Printed Wiring Board Sub Trans Section (HCD-RV2)
42
Schematic Diagram –Power Section (HCD-RV2)
43
Printed Wiring Boards Power Amp Section (HCD-RV5)
44
Printed Wiring Board –Trans Section (HCD-RV5)
45
Printed Wiring Board Sub Trans Section (HCD-RV5)
46
Schematic Diagram –Power Section (HCD-RV5)
47
Printed Wiring Boards Power Amp Section (HCD-RV6)
48
Printed Wiring Board –Trans Section (HCD-RV6)
49
5 Exploded Views
56
Main Section
56
Front Panel Section
57
Main Board Section
58
CD Mechanism Deck Section
59
Base Unit Section
60
Electrical Parts List
61
Remote Sensor
79
Table of Contents
86
Test Mode
87
Mechanical Adjustments
90
Electrical Adjustments
91
IC Pin Function Description
95
Block Diagram -CD, Video Section
99
Block Diagram -Tuner, Power Section
100
Block Diagram -Main Section (HCD-RV2)
101
Block Diagram -Main Section (HCD-RV5)
102
Block Diagram -Main Section (HCD-RV6)
103
5
Based on 1 rating
