58
HCD-RV2/RV5/RV6

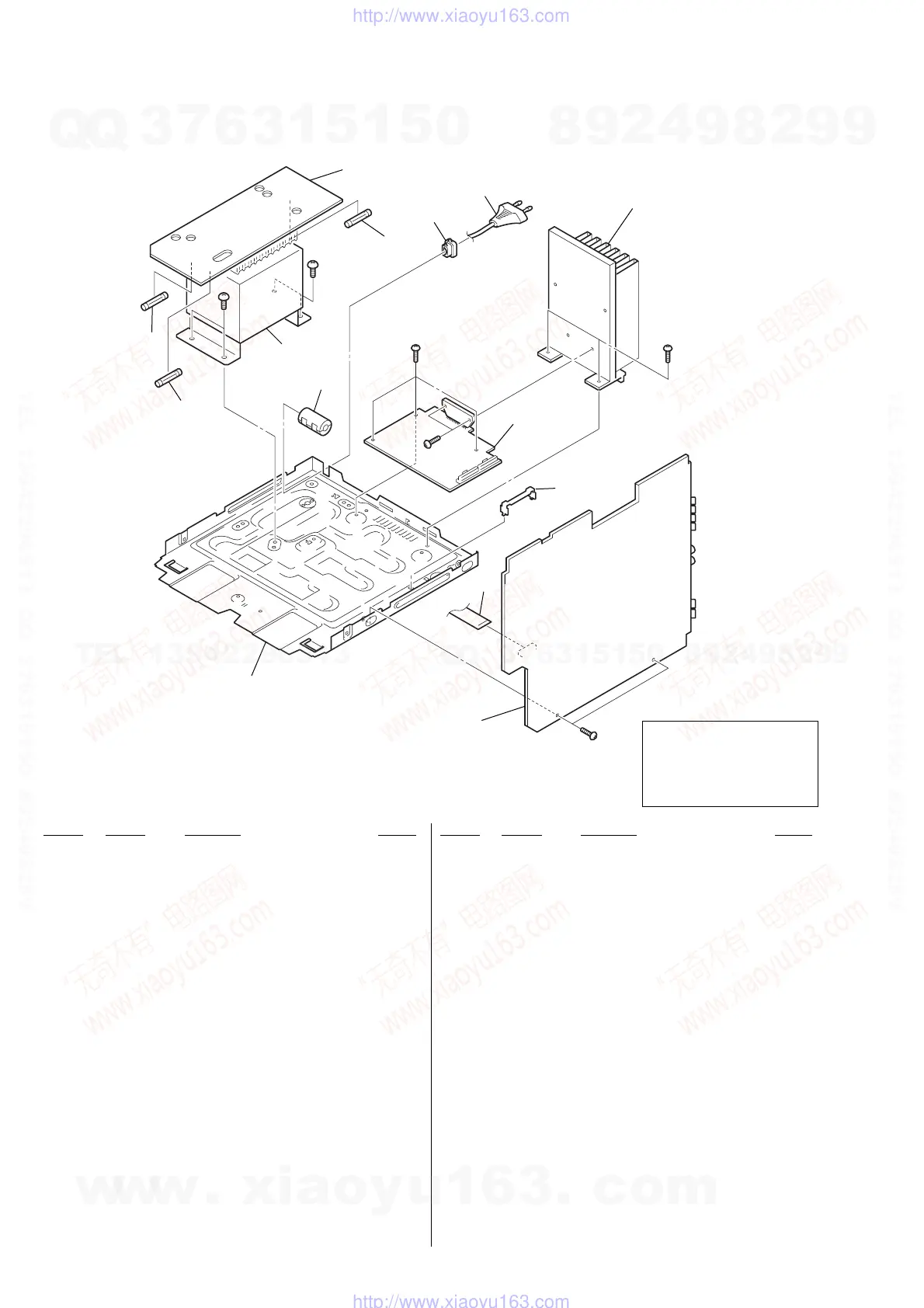

5-3. MAIN BOARD SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
#2
#2
#4
#3
#2
#3
103
104
106
101
102
105
T911
F919
F920
F914
not supplied
not supplied
107
108
101 1-751-688-11 WIRE (FLAT TYPE) (13 CORE)
102 A-4676-995-A MAIN BOARD, COMPLETE (RV2:E3,MY,SP)
102 A-4729-270-A MAIN BOARD, COMPLETE (RV5:E3,JE,MY,SP)
102 A-4729-402-A MAIN BOARD, COMPLETE (RV6:E3,MY,SP)
102 A-4730-979-A MAIN BOARD, COMPLETE (RV2:EA)
102 A-4730-982-A MAIN BOARD, COMPLETE (RV2:TH)
102 A-4730-986-A MAIN BOARD, COMPLETE (RV5:EA)
102 A-4730-988-A MAIN BOARD, COMPLETE (RV5:TH)
102 A-4730-990-A MAIN BOARD, COMPLETE (RV6:EA)
102 A-4730-992-A MAIN BOARD, COMPLETE (RV6:TH)
103 4-988-533-01 HOLDER, PWB
104 A-4676-989-A POWER AMP BOARD, COMPLETE (RV2)
104 A-4729-266-A POWER AMP BOARD, COMPLETE (RV5)
104 A-4729-408-A POWER AMP BOARD, COMPLETE (RV6)
105 1-685-090-11 TRANS BOARD
* 106 3-703-244-00 BUSHING (2104), CORD (E3,EA,JE,MY,SP)
106 3-703-571-11 BUSHING (S) (4516), CORD (TH)
0107 1-777-071-82 CORD, POWER (RV2:EA,MY,SP/RV5:JE,MY,SP/
RV6:EA,MY,SP)
0107 1-791-901-12 CORD, POWER (E3,TH)
0107 1-823-767-11 CORD, POWER (RV5:EA)
108 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
0F914 1-533-473-11 FUSE, GLASS TUBE (DIA.5) (T6.3AL/250V)
(RV2/RV6)
0F914 1-533-949-31 FUSE, CYLINDRICAL (TIME LAG)
(T8AL/250V) (RV5)
0F919 1-533-471-11 FUSE, GLASS TUBE (DIA.5) (T4AL/250V)
(RV2:E3,EA,MY,SP/RV6:E3,EA,MY,SP)
0F919 1-533-472-11 FUSE, GLASS TUBE (DIA.5) (T5AL/250V)
(RV5:E3,EA,JE,MY,SP)
0F920 1-533-473-11 FUSE, GLASS TUBE (DIA.5) (T6.3AL/250V)
(RV2/RV6)
0F920 1-533-949-31 FUSE, CYLINDRICAL (TIME LAG)
(T8AL/250V) (RV5)
0T911 1-437-222-11 TRANSFORMER, POWER (RV5:E3,JE,MY,SP,TH)
0T911 1-437-764-11 TRANSFORMER, POWER (RV2:E3,MY,SP,TH)
0T911 1-437-765-11 TRANSFORMER, POWER (RV6:E3,MY,SP,TH)
0T911 1-437-831-11 TRANSFORMER, POWER (RV2:EA)
0T911 1-437-832-11 TRANSFORMER, POWER (RV5:EA)
0T911 1-437-833-11 TRANSFORMER, POWER (RV6:EA)
#2 7-685-872-09 SCREW +BVTT 3X8 (S)
#3 7-685-880-09 SCREW +BVTT 4X6 (S)
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
