HCD-RV2/RV5/RV6

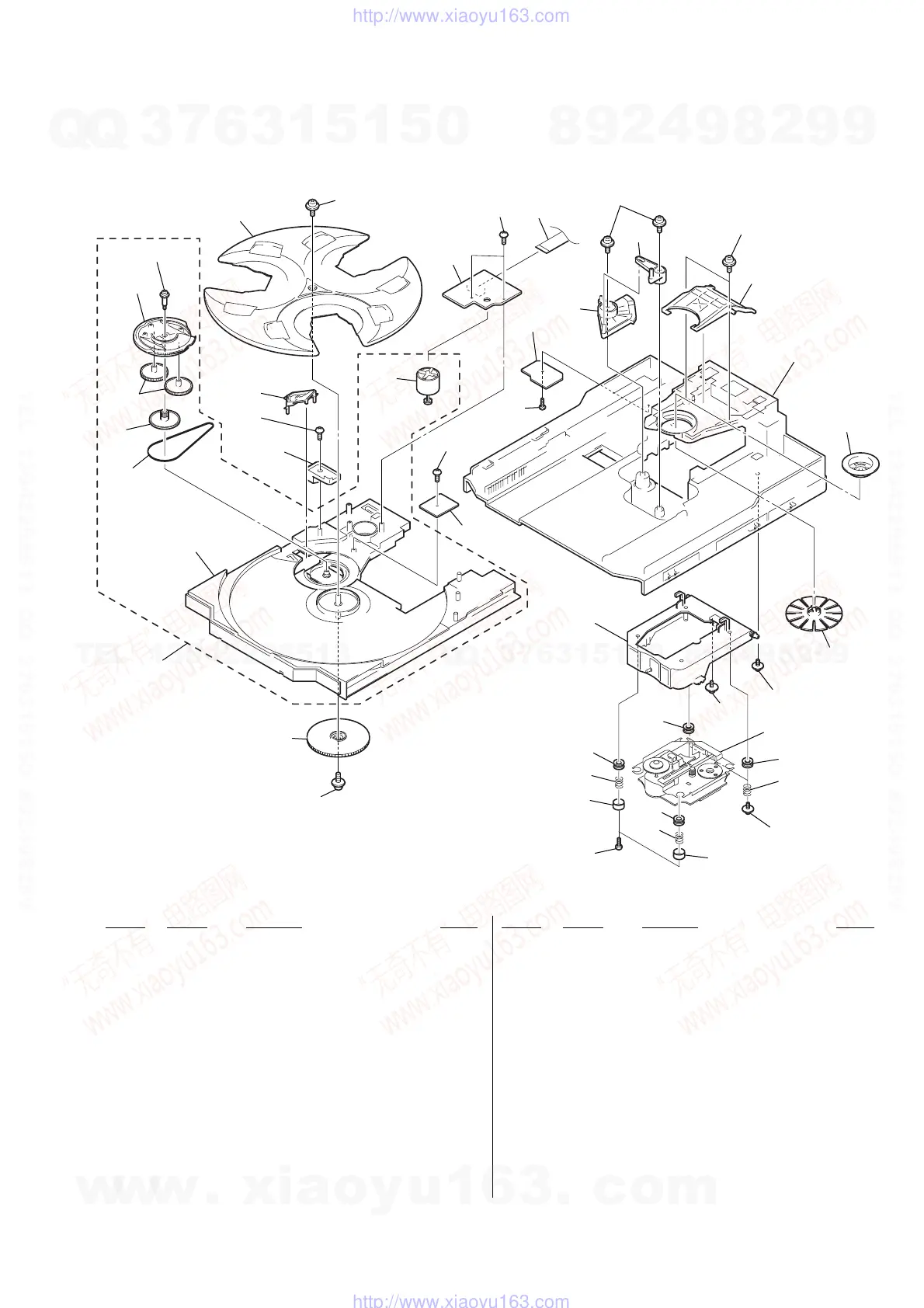

5-4. CD MECHANISM DECK SECTION
(CDM58E-30BD62)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
BU-30BD62
not
supplied
151
152
154
160
162
163
158
157
156
155
164
165
161
161
161
161
174
166
167
168
151
169
179
171
173
175
178
172
179
179
177
177
177
176
176
176
176
161
153
170
M721
159
178
151 4-933-134-11 SCREW (+PTPWH M2.6X8)
152 4-221-679-01 CAM (RELAY)
153 A-4735-097-A SUB ASSY, TABLE
154 4-231-452-04 TABLE (NEW)
155 4-222-095-01 BELT
156 4-221-685-01 PULLEY (S)
157 4-221-683-01 GEAR (U)
158 4-221-678-01 CAM (CONTROL)
159 4-222-097-01 SCREW, STEP
160 X-4954-616-1 LEVER (CHANGE 2) ASSY
161 4-951-620-01 SCREW (2.6X8), +BVTP
162 4-221-676-01 TRAY
163 4-933-134-51 SCREW (+PTPWH 2.6X8)
164 1-675-910-14 MOTOR BOARD
165 1-791-983-12 WIRE (FLAT TYPE) (8 CORE)
166 1-675-912-14 DRIVER BOARD
167 X-4952-608-1 CAM (U/D) ASSY
168 4-221-681-01 LEVER (EX)
169 4-221-682-01 LEVER (LIFTER)
170 4-223-777-03 CHASSIS
171 4-231-513-01 PULLEY (B) (BU-30), CHUCKING
172 X-4953-307-1 PULLEY (A) ASSY, CHUCKING
173 X-4953-306-1 HOLDER (BU) (BU-30) ASSY
174 1-675-911-14 SENSOR (CD) BOARD
175 4-227-899-01 SCREW (DIA.12), FLOATING
176 4-231-451-01 INSULATOR (BU-30)
177 4-227-045-11 SPRING (INSULATOR), COIL
178 4-231-151-01 STOPPER (BU)
179 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
M721 A-4672-826-A MOTOR ASSY (OPEN/CLOSE)
