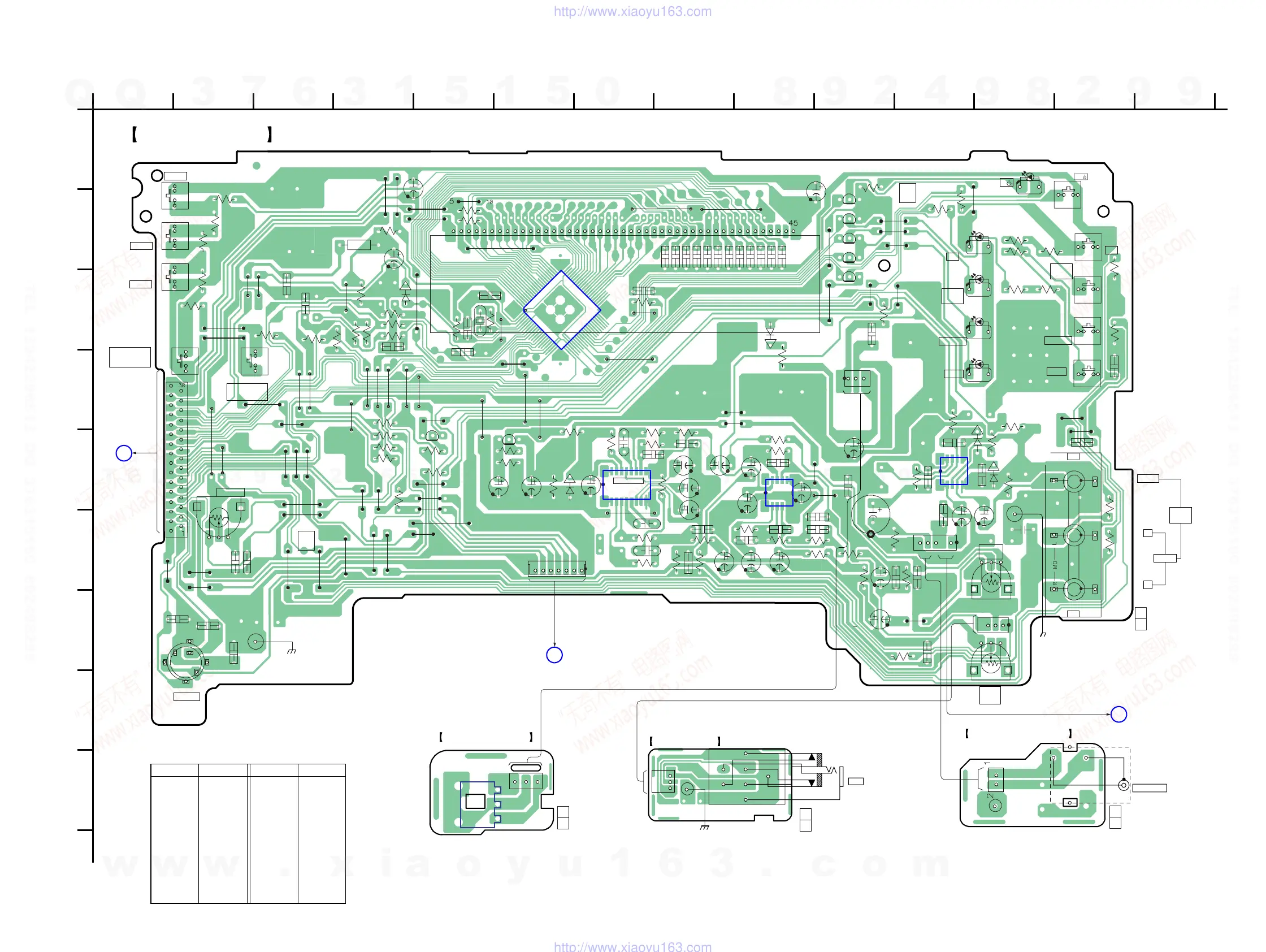

4-14. PRINTED WIRING BOARDS — PANEL SECTION (HCD-RV2) — • Refer to page 16 for Circuit Boards Location.
1
A
B
C
D
E
F
G
H
I
234567891011121314
D
MAIN
BOARD
CN601
C
VIDEO
BOARD
CN301
G
KEY BOARD
CN715
1-685-097-
(11)
11
(11)
11
(11)
11
1-685-098-
1-685-096-
(11)
11
1-685-091-
S716
S701
S702
S703
S704
R744
R743
R701
R739
R703
R704
R707
R705R706
R702
R751
LED701
LED704
LED705
LED703
LED702
31
31
JK704
WIRE701
R785
C753
R800
R795
C775
C719
C705
C776
C781
C706
C757
C765
C763
C766
C751
C750
C748
C752
C742
C747
C741
C744
C759
C754
C740
JW750
JW775
JW759
JW746
JW745
C755
C704
R788
C764
VR703
VR702
ECHO
LEVEL
CN703
41
CN713
C767
IC703
IC702
IC704
JW760
JW770
R769
R796
JW747
JW750
JW757
JW756
JW755
JW754
JW751
JW753JW752
JW744
JW743
JW779
JW741
CN701
R767
R799
R741R742
R755
D715
D714
C729 C730 C731 C732 C733 C723 C722
C777
C724 C725 C726 C727 C728
IC701
FLD701
C701
C721
C711
C713
D713
C720
R772
R771
R776
C739 C738
C746
R773
R782
R790
C762
C718
C745
C772
C707
C779
C771
C760
C758
R778
R791 R792 C780
R774
R781
R780
R779
C761
C756
R787
R775
R801
C702
R786
R784
R789
R783
C749
FB701
R715
R777
R777
D712
R747
R803
R802
D716
JW728
JW738
JW729
JW740
JW773
JW772
JW726
JW727
JW771
JW722
JW717
JW718
JW706
JW732
JW766
JW709
JW792
JW712
JW715
JW719
JW709
JW703
JW732 JW733
JW739
JW734
JW735
JW737
JW736
JW774 JW725
JW781
JW713 JW714
17
CN712
C734
C735
C703
C710
C770
C737
C736
WIRE702
(CHASSIS)
JW710
JW711
JK701
PHONES
JW780
JW724
JW706
JW720
JW721
JW701 JW702
JW730
JW758 JW761
JW708 JW707 JW790
JW731
R764
C716
RES701
R765
CN711
VR701
VOLUME
R708
R713
R745
R740
R748
R714
R752
R753
R762
R760
R758
R750
R749
15 10 15 20 25 30 35 40
R711
R759
R768
R761
R763
R712
R710
R709
S711
S710
S709
C774
PANEL BOARD
(CHASSIS)
5
7
2
6
1
1
3
3
4
CN605
CN702
RM701
REMOTE BOARD
WIRE703
LP601
CN704
MIC BOARD
1
1
1
1
3
3
GAME
GAME
JK704
GAME
INPUT
VIDEO
L
R
MIC
LEVEL
TAPE A/B
TAPE A/B
TUNER
/BAND
CD
TUNER
/BAND
CD
S708
DISC 1
DISC 2
DISC 3
I/
AUDIO
-1
-2
-3
JK702
MIC
JK602
OPEN/CLOSE
Z
S712
DISC SKIP/
EX-CHANGE
Q711
EB
EB
Q706
Q704
EB
Q705
EB
Q703
EB
Q702
EB
Q701
EB
61 60
20
80
1
41
40
21
(CHASSIS)
VIDEO OUT BOARD
I /
VIDEO OUT
916
81
(Page 32)
(Page 30)
(Page 22)
D712 E-6
D713 C-4
D714 E-12
D715 E-12
D716 C-9
IC701 C-6
IC702 E-9
IC703 E-7
IC704 E-11
LED701 A-11
