r AES/EBU connector (BNC-type)
Outputs the AES/EBU format digital audio signal that is input
to the video camera.
s CHARACTER (character output) / SYNC connector
(BNC-type)
CHARACTER: Outputs the self-diagnostic results or setup
menu of the unit as an SD analog video signal.
SYNC: Outputs an SD composite sync (without burst signal)
or HD tri-level sync signal from the internal sync signal
generator (default: SD composite sync signal).
For details on how to select the signal, contact a Sony service
or sales representative.
t AUDIO OUT CH1, CH2 (audio output 1, 2) connectors
(XLR 3-pin)
Used to output the audio signal to the AUDIO IN connectors of the
video camera.
u - AC IN (AC power input) connector
Use the specified AC power cord to connect to an AC power
supply. The AC power cord can be secured to this unit using
the plug holder (optional).

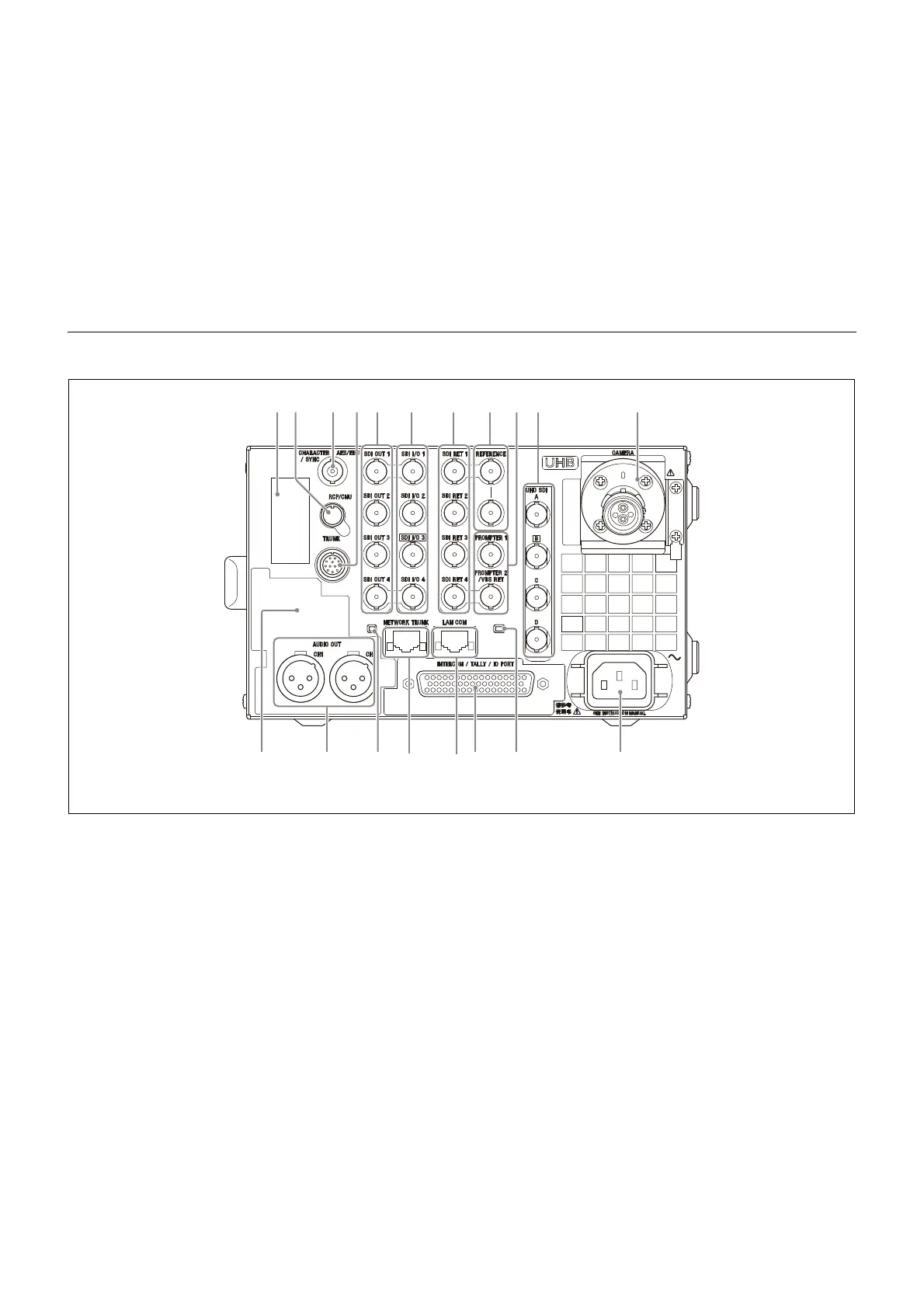

HDCU5500/3500 Rear Panel
a Option kit mounting port
The HKCU-SFP50 ST 2110 Interface Kit (option) can be
installed.
For an overview of option kits, see “Option Kits” (page 15).
b RCP/CNU connector (round 8-pin)
Used to connect to an MSU-1000 series Master Setup Unit,
CNU-700 Camera Command Network Unit, or RCP-3000/
1000 series Remote Control Panel via a CCA-5 connection
cable. Control signals are sent and received via this
connector. When using an RCP-3000/1000 series unit, power
is also supplied.
c CHARACTER (character output), AES/EBU, SYNC
connector (BNC-type)
CHARACTER: Outputs the self-diagnostic results or setup
menu of the unit as an SD analog video signal.
AES/EBU: Outputs the AES/EBU format digital audio signal
that is input to the video camera.
SYNC: Outputs an SD composite sync (without burst signal)
or HD tri-level sync signal from the internal sync signal
generator (default: SD composite sync signal).
For details on how to select the signal, contact a Sony service
or sales representative.
d TRUNK connector (round 12-pin)
Used to connect to the CCU connector on a camera via an
RS-232C or RS-422A interface. Communication with up to two
channels is available.
e SDI OUT (3G/HD/SD SDI output) 1/2/3/4 connectors
(BNC-type)
The signal from the video camera may be output as 3G
signals, HD-SDI signals, or SD-SDI signals. They can output
signals with superimposed text characters and markers.
For details on settings, contact a Sony service or sales
representative.
12 3
qk
9
0
678
qa
5
qd qjqf qf
qs
4
qg
qh
* The UHB seal shown on the left of the CAMERA FIBER connector is not present on the HDCU3500.
