9

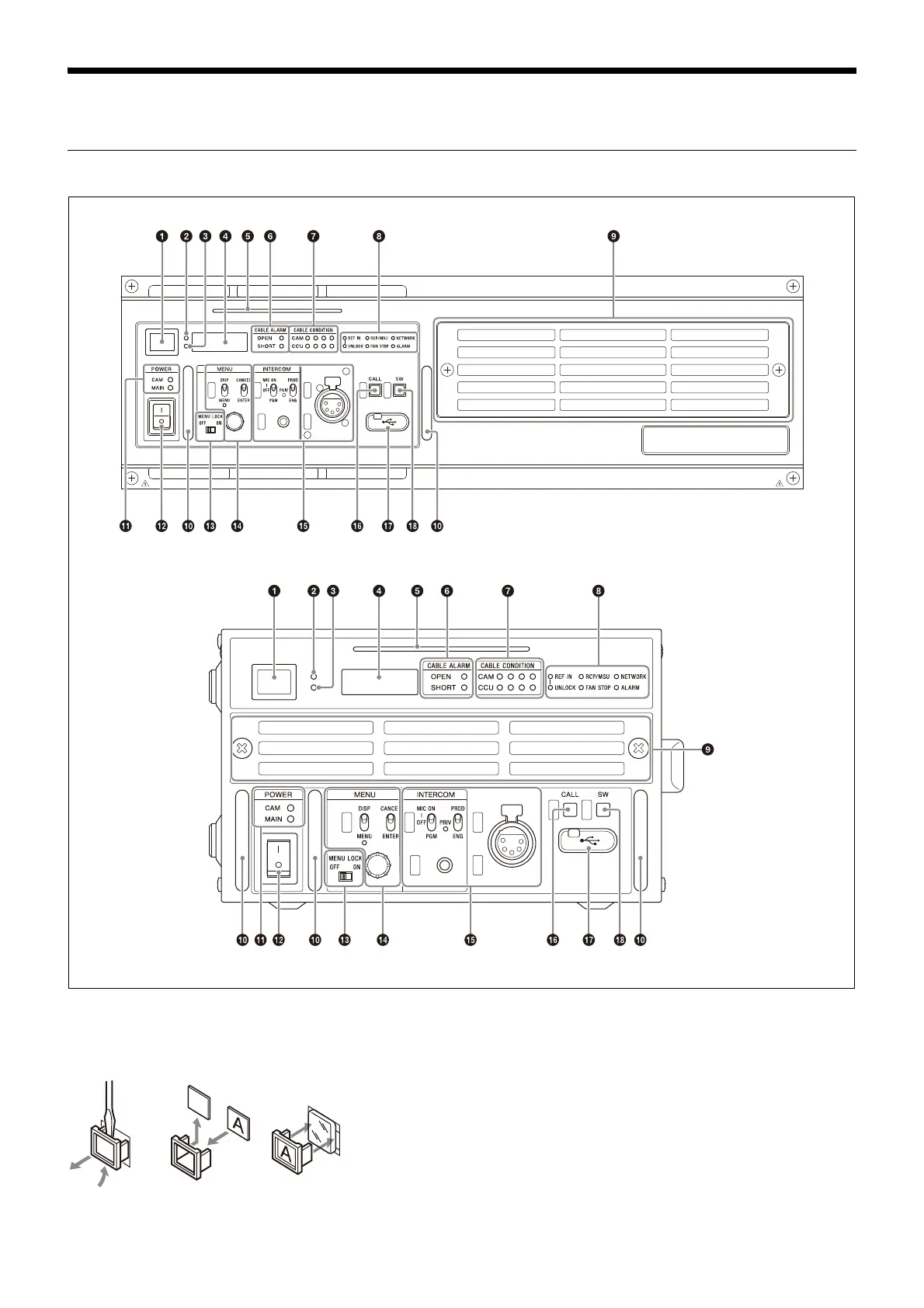

Location and Function of Parts
Front Panel
a Red tally indicator
Lights in red when this unit receives a red tally signal. You can
attach the supplied number plate here.
b Yellow tally indicator
Lights in yellow when this unit receives a yellow tally signal.
c Green tally indicator
Lights in green when this unit receives a green tally signal.
d CCU number display
Displays the camera number set in the CCU menu.
When the camera number is 0, the IP address and subnet
mask of the LAN COM connector are displayed scrolling at
regular intervals.
HDCU5000
HDCU5500/3500
* The sizes of the HDCU5000 and HDCU5500/3500 are shown at different scales.
