Sony ICD-U50 User Manual

21
ICD-U50/U60/U70
9 2-667-103-01 LID, BATTERY (SILVER)(U70: UK, KR)
9 2-667-103-11 LID, BATTERY (WHITE)(U60)
9 2-667-103-21 LID, BATTERY (NAVY)
(U70: US, AEP, E, CND, CH)
9 2-667-103-31 LID, BATTERY (AQUA)(U50)
10 3-252-824-11 SCREW (1.4)
11 X-2148-196-1 CABINET (REAR) ASSY (AQUA)(U50: US, E, KR)
11 X-2148-197-1 CABINET (REAR) ASSY (WHITE)
(U60: US, AEP, UK, E, KR, JE)
11 X-2148-199-1 CABINET (REAR) ASSY (SILVER)(U70: UK, KR)
11 X-2148-200-1 CABINET (REAR) ASSY (NAVY)
(U70: US, AEP, E, CND)
11 X-2176-109-1 CABINET (REAR) ASSY (AQUA)(U50: CH)
11 X-2176-110-1 CABINET (REAR) ASSY (WHITE)(U60: CH)
11 X-2177-991-1 CABINET (REAR) ASSY (NAVY)(U70: CH)
12 2-667-100-01 TERMINAL (+), BATTERY
13 2-177-065-01 CUSHION (BATTERY TERMINAL)
SECTION 5
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
Ref. No. Part No. Description Remark
1 2-671-980-01 INSULATING SHEET (XTAL)
2 2-667-105-01 SHEET (SPEAKER)
3 3-254-135-01 SCREW (B1.4)
4 A-1174-556-A CAP ASSY (SILVER)(U70: UK, KR)
4 A-1177-508-A CAP ASSY (WHITE)(U60)
4 A-1177-532-A CAP ASSY (NAVY)(U70: US, AEP, E, CND, CH)
4 A-1177-539-A CAP ASSY (AQUA)(U50)
5 3-254-137-01 SCREW (1.4)
6 A-1174-553-A FRONT ASSY (SILVER)(U70: UK, KR)
6 A-1177-505-A FRONT ASSY (WHITE)(U60)
6 A-1177-530-A FRONT ASSY (NAVY)
(U70: US, AEP, E, CND, CH)
6 A-1177-537-A FRONT ASSY (AQUA)(U50)
7 2-667-085-01 KNOB (JOG)(SILVER)(U70: UK, KR)
7 2-667-085-11 KNOB (JOG)(WHITE)(U60)
7 2-667-085-21 KNOB (JOG)(NAVY)(U70: US, AEP, E, CND, CH)
7 2-667-085-31 KNOB (JOG)(AQUA)(U50)
8 2-667-077-01 WINDOW (LED)

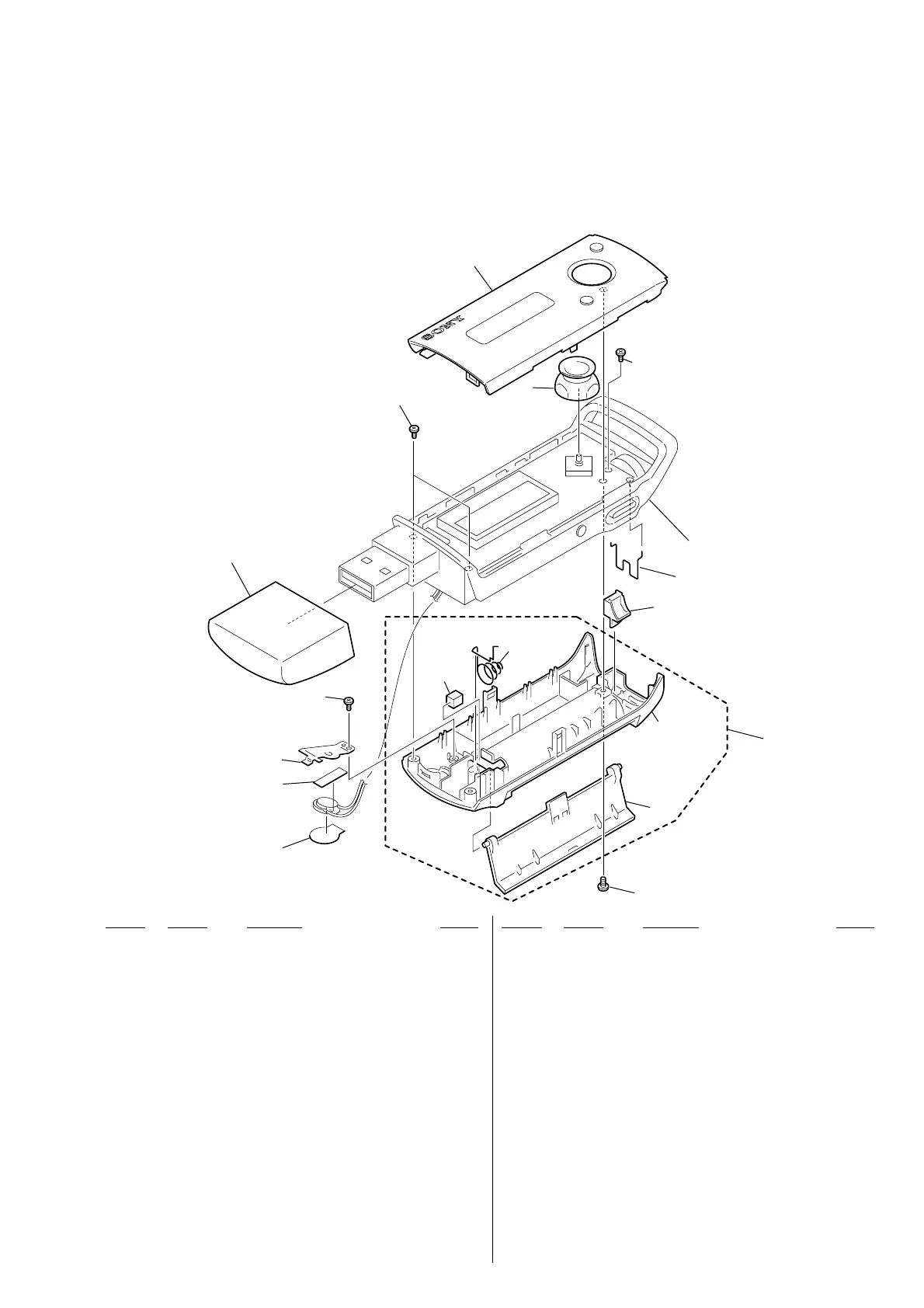

5-1. OVERALL ASSY
Ref. No. Part No. Description Remark
3
13
10
9
5
7
4
6
5
8
not supplied
main section
not supplied
not
supplied
2
1
12
11
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
•Abbreviation
CH : Chinese model.
CND : Canadian model.
JE : Tourist model.
KR : Korean model.
Ver. 1.5

Sony ICD-U50 Specifications

General

Recording Format	MP3
Storage Capacity	512 MB
PC Connectivity	USB
Recording Media	Built-in Flash Memory
Headphone Jack	Yes
USB Interface	USB 1.1
Microphone Type	Built-in
Speaker	Built-in
Battery Type	AAA
