ICD-U50/U60/U70

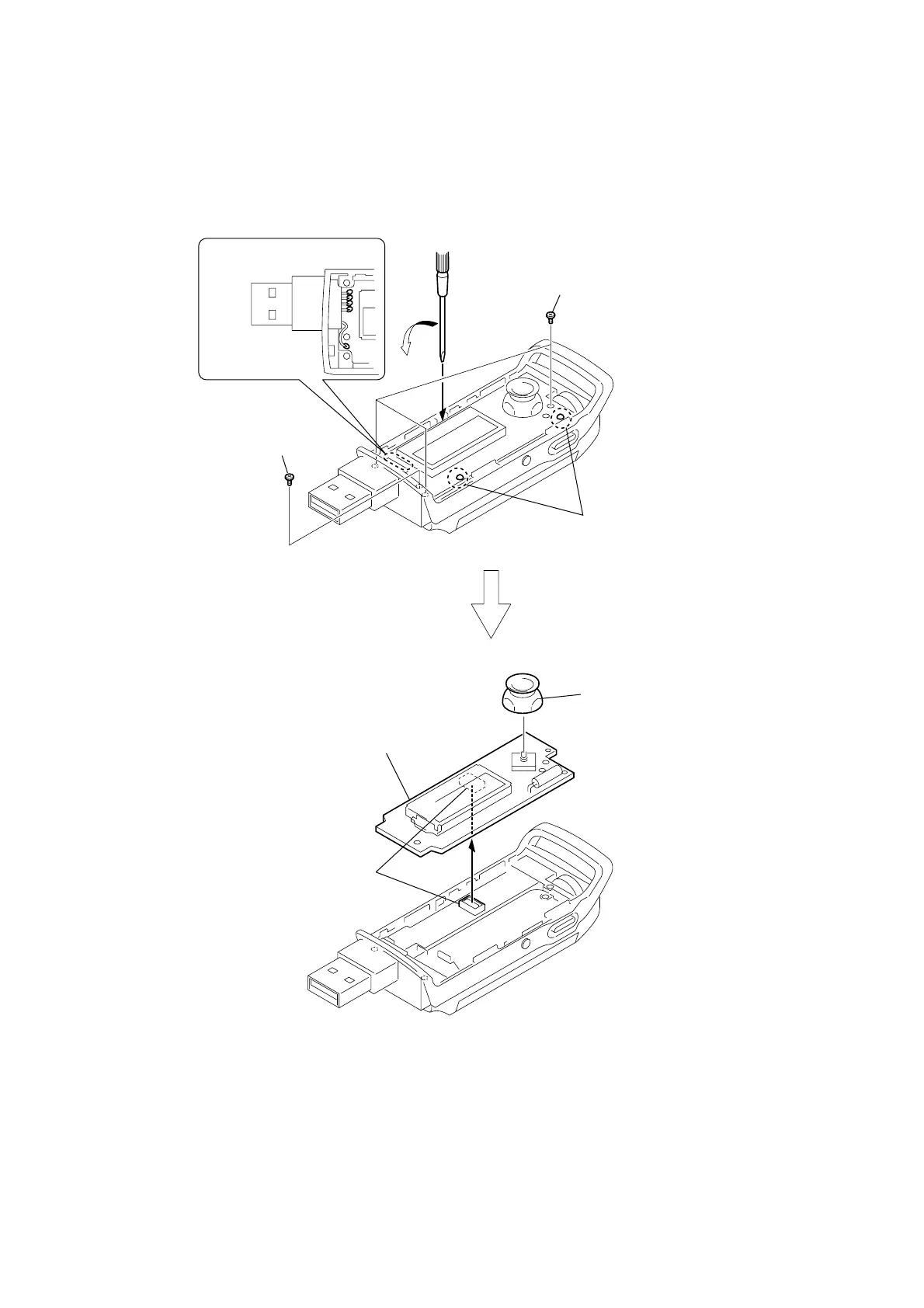

2-3. MAIN BOARD, KNOB (JOG)
9
MAIN board
7
board to board
connector
3
three tapping screws
(M1.4
×
8
)
4
tapping screw
(M1.4
×
3
)
5
6
1
Remove the two soldering points.
2
Remove the five soldering
points.
8
knob (JOG)
