6
ICD-U50/U60/U70

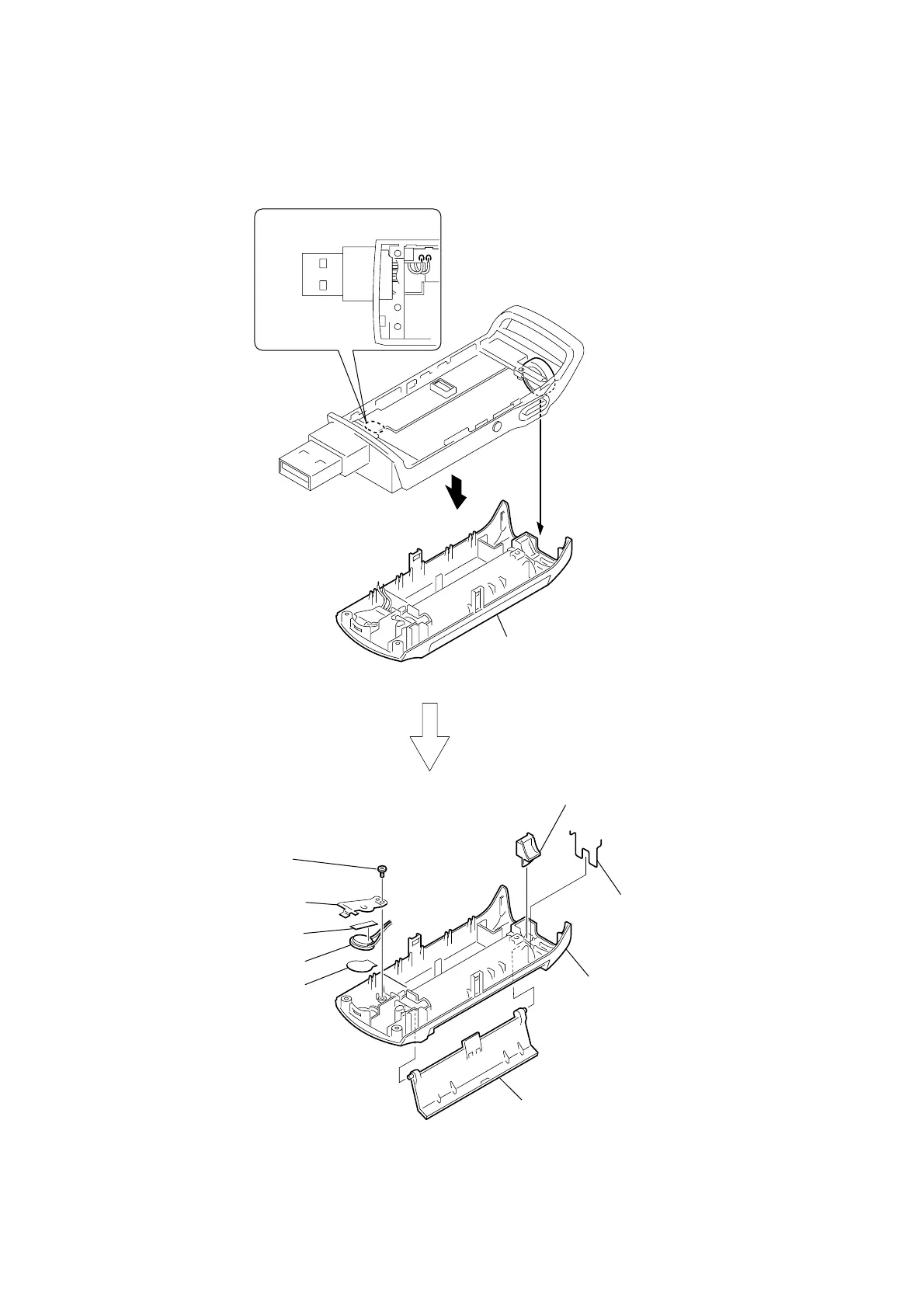

2-4. SPEAKER (1.0cm) (SP901), BATTERY LID, CABINET (REAR) ASSY
cabinet rear
2
1
Remove the two soldering
points.
q;
battery lid
9
battery terminal (+)
qa
cabinet (rear) assy
8
window (LED)
3
tapping screw
(M1.4
×
3
)
4
holder (speaker)
5
insulating sheet (XTAL)
7
sheet (speaker)
6
speaker (1.0cm) (SP901)
