Sony ICF-SW100 Service Manual

ICF-SW100E/SW100S
45
8
12
11
19
44
(Including No.8)
(Included
in No. 44)
not supplied
not supplied
ANT2
40
– 40 –– 39 –

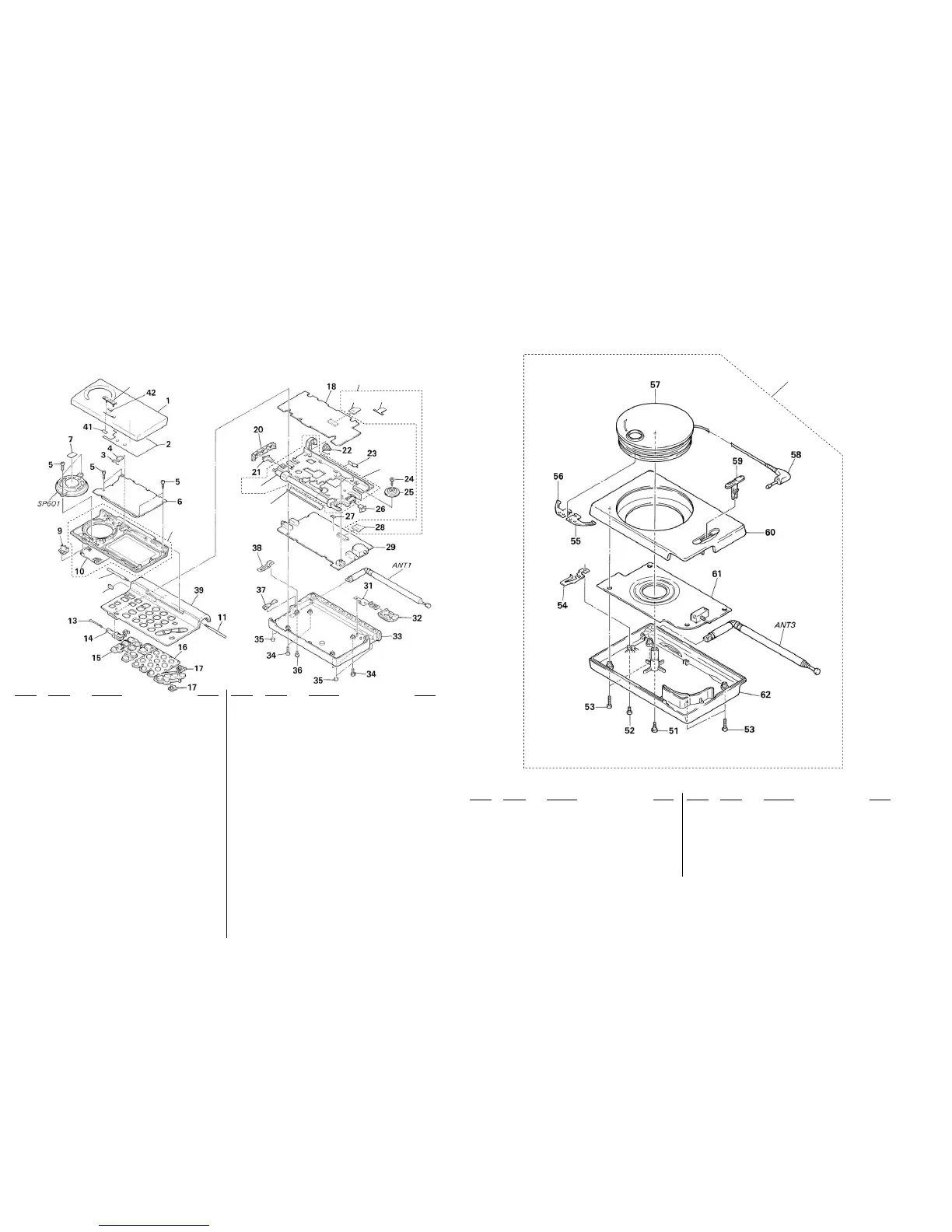

SECTION 5
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Abbreviation
EA : Saudi Arabia
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
5-1. MAIN SECTION
5-2. ACTIVE ANTENNA (AN-100) SECTION
(ICF-SW100S)
63
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 3-909-832-01 CABINET (REAR) (LID)
2 3-911-703-01 COPPER LEAF
3 3-913-417-01 SPRING
4 3-911-702-01 PLATE, CLICK
5 3-384-797-01 SCREW
* 6 A-3661-961-A MICROCOMPUTER BOARD, COMPLETE
7 3-565-241-01 CLOTH (B) 1 UNWEAVED
8 X-3371-472-2 CABINET (FRONT) (LID) ASSY (included in No.44)
9 3-909-839-01 BUTTON (LIGHT)
10 3-909-851-01 GRILLE, SP
11 3-909-857-02 SCREW, SHAFT
12 3-913-419-01 CUSHION
13 3-911-701-01 SPRING (B), LEAF
14 3-909-842-01 CLAW (LOCK)
15 3-909-838-01 BUTTON (MEMORY)
16 3-909-837-01 BUTTON (10 KEY)
17 3-909-840-01 BUTTON (KEY PROTECT)
* 18 A-3661-960-A KEY BOARD, COMPLETE
19 1-651-256-12 PC BOARD, FLEXIBLE (KEY)
20 3-909-847-01 PANEL, SIDE
21 3-909-846-01 KNOB (SENS)
22 3-909-853-01 SPRING, BATTERY COIL
23 4-017-441-01 CUSHION (B)
24 3-892-318-00 SCREW, SMALL
25 3-909-836-01 KNOB (VOL)
26 3-909-835-01 KNOB (TONE)
* 27 3-355-447-01 SPACER (OPEN)
28 1-651-257-12 PC BOARD, FLEXIBLE (SIGNAL)
* 29 A-3679-561-A SIGNAL BOARD, COMPLETE
* 31 A-3638-005-A TERMINAL (+) ASSY, BATTERY
32 3-909-841-01 LID, BATTERY CASE
33 3-909-831-01 CABINET (REAR) (MAIN)
34 3-910-063-01 SCREW (1.7X10)
35 3-910-062-01 FOOT, RUBBER
36 3-719-381-01 SCREW (M2X4)
37 3-909-834-01 KNOB (POWER)
38 3-909-492-01 PLATE (ANT), CONTACT
39 X-3368-534-2 CABINET (FRONT) (MAIN) ASSY (EXCEPT EA)
39 X-3368-535-2 CABINET (FRONT) (MAIN) ASSY (EA)
40 X-3368-536-2 CHASSIS ASSY
* 41 4-023-575-01 CUSHION, LID
42 3-355-482-11 SHEET (KT), ADHESIVE
44 X-3372-340-4 CHASSIS ASSY, FLEXIBLE (including No.8)
45 3-019-248-01 PLATE, BLIND
ANT1 1-501-658-21 ANTENNA, TELESCOPIC
ANT2 1-501-657-31 ANTENNA, FERRITE-ROD (LW.MW)
SP601 1-505-165-12 SPEAKER (4cm)
• Items marked “*” are not stocked since they are
seldom required for routine service.
Some delay should be anticipated when ordering
these items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
51 3-895-517-11 SCREW (2), TAPPING, STEP
52 3-719-381-01 SCREW (M2X4)
53 3-910-063-01 SCREW (1.7X10)
54 3-909-492-01 PLATE (ANT), CONTACT
55 3-909-491-01 PLATE (B), CONTACT
56 3-909-490-01 PLATE (A), CONTACT
57 3-909-488-01 REEL
58 1-559-706-11 CORD (WITH PLUG)
59 3-909-489-01 KNOB (ANTENNA)
60 3-909-486-02 CASE (UPPER)
* 61 A-3661-962-A ACTIVE ANTENNA BOARD, COMPLETE
62 3-909-487-01 CASE (LOWER)
* 63 A-3638-008-A ANTENNA ASSY, ACTIVE
ANT3 1-501-658-21 ANTENNA, TELESCOPIC
Ver. 1.1
