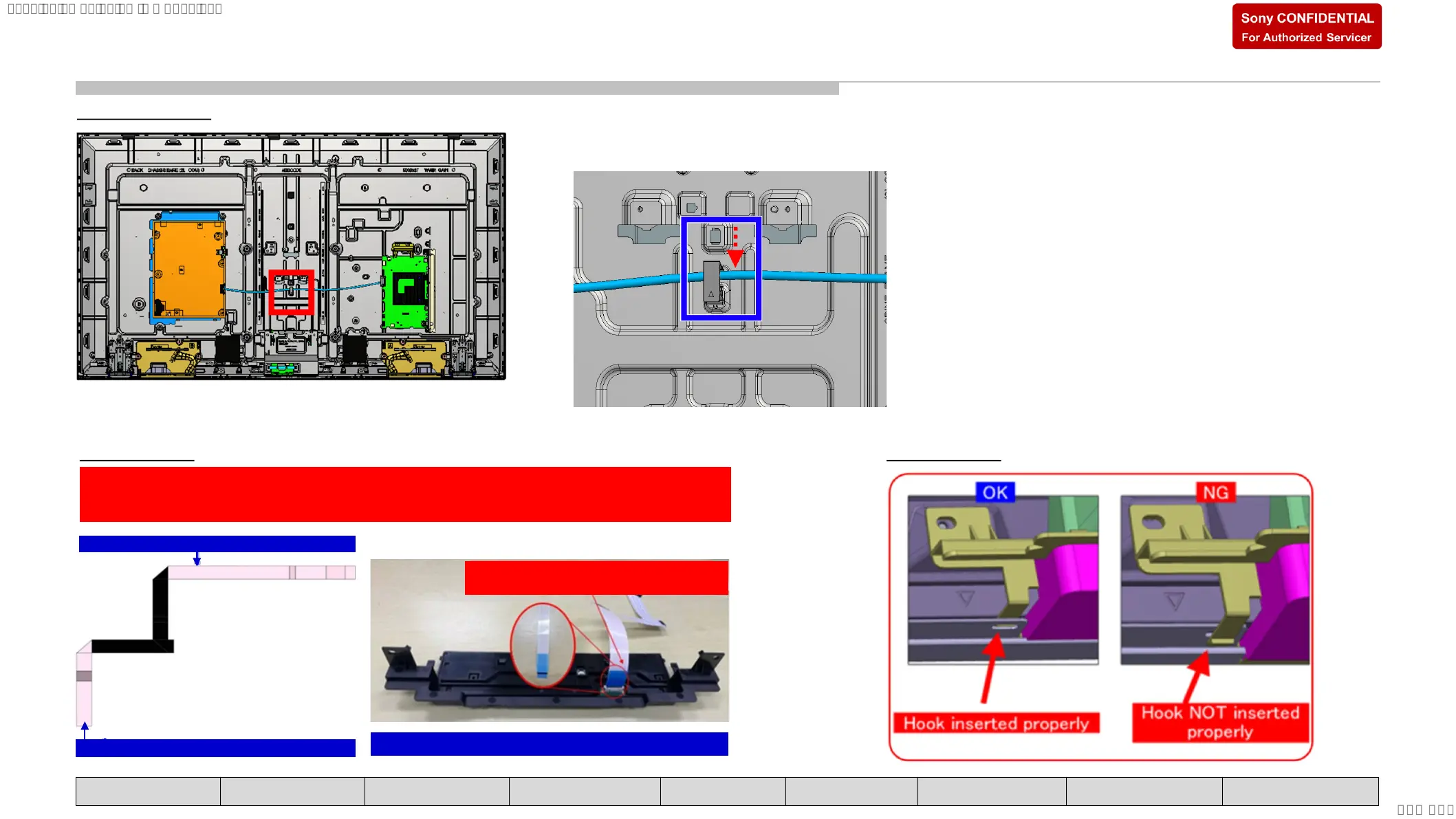

WIRE DRESSING
INFORMATION INFORMATION
Caution:
1. Operator need to fix Smart Core onFLAT surface before FFC insertion to ensure FFC STRAIGHT insertion.
2. FFC side with blue supporting tape, must face CONNECTOR WITH LOCKING during FFC insertion.
After assemble Receiver board to Smart Core, operator need to insert
Receiver board FFC in straight condition.
Smart Core is placed on FLAT surface during FFC insertion.
FFC side with blue supporting tape face
connector with locking during insertion.
FFC (shorter side) is inserted at Smart Core
FFC (longer side) is inserted at Main Board
SECTION 4: KD-65X8*K
4-3. WIRE DRESSING
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SECTION 3 SECTION 4 SECTION 5 SMART CORE APPENDIX
SYSSET
2022/02/2522:04:10(GMT+09:00)
