WIRE DRESSING
INFORMATION INFORMATION
SECTION 5: KD-75X8*K

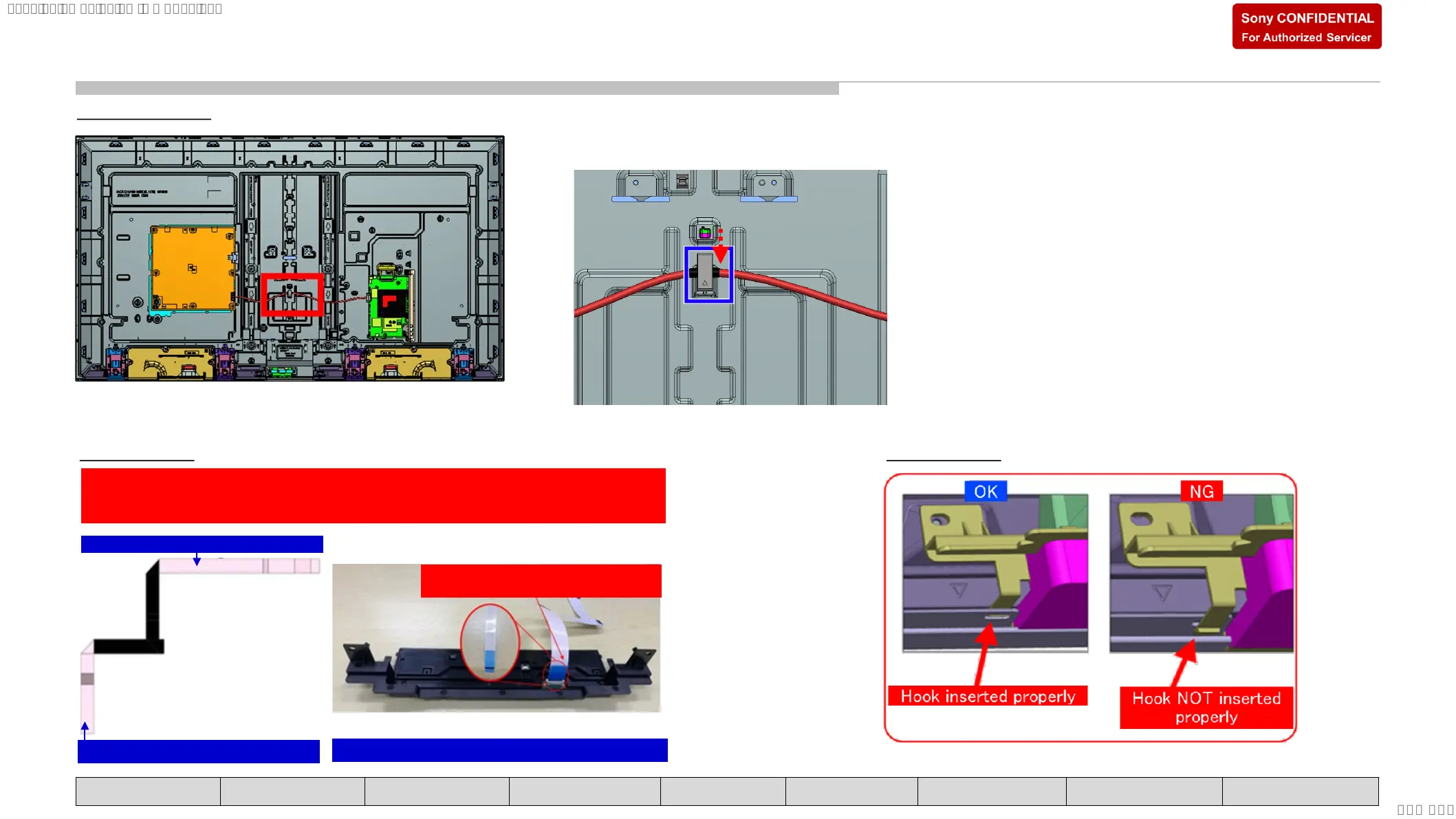

5-3. WIRE DRESSING
Caution:
1. Operator need to fix Smart Core onFLAT surface before FFC insertion to ensure FFC STRAIGHT insertion.
2. FFC side with blue supporting tape, must face CONNECTOR WITH LOCKING
during FFC insertion.
After assemble Receiver board to Smart Core, operator need to
insert Receiver board FFC in straight condition.
Smart Core is placed on FLAT surface during FFC insertion.
FFC (longer side) is inserted at Main Board
FFC (shorter side) is inserted at Smart Core
FFC side with blue supporting tape face
connector with locking during insertion.
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SECTION 3 SECTION 4 SECTION 5 SMART CORE APPENDIX
