86
SMART CORE

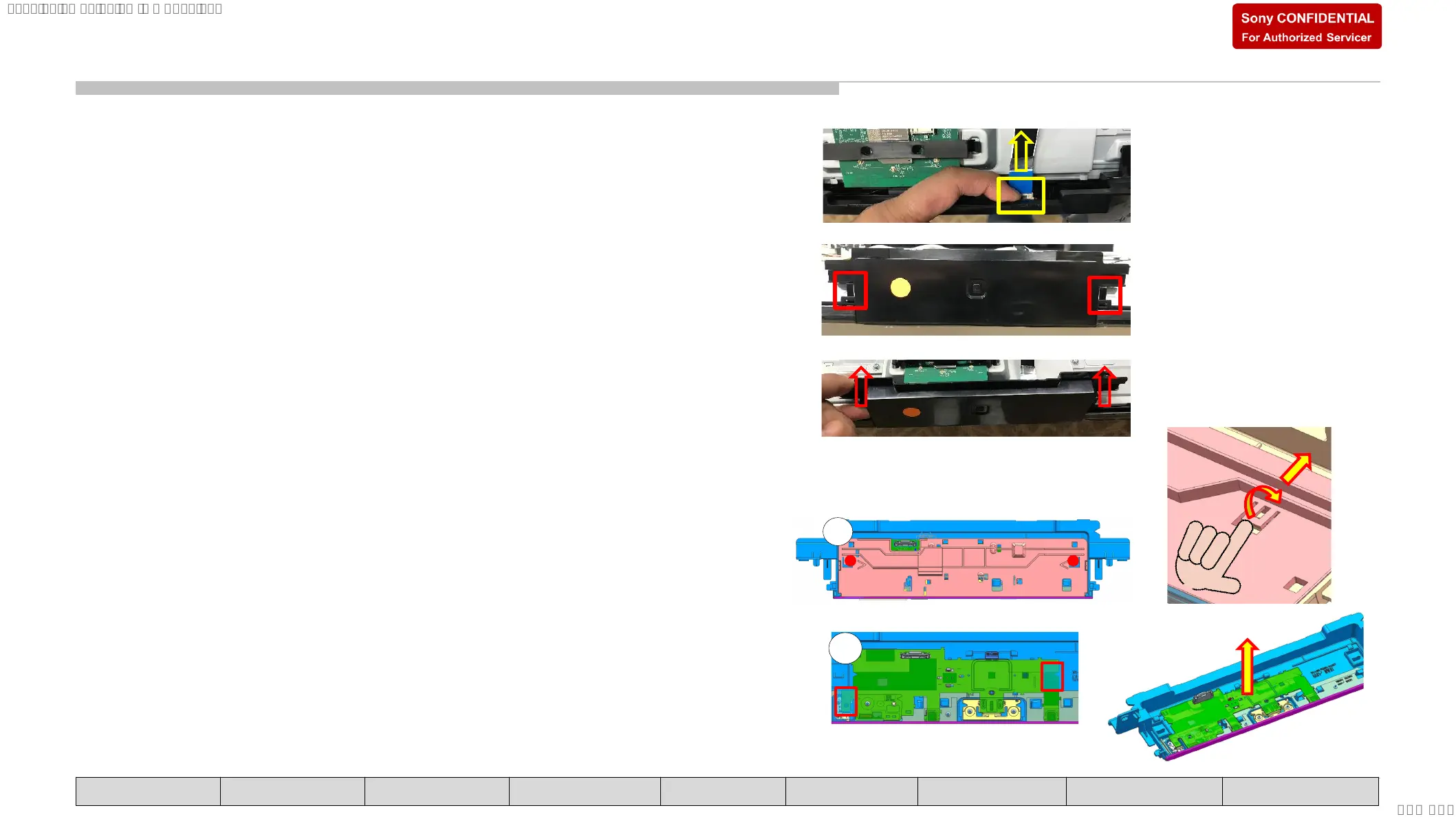

DISASSEMBLY AND REMOVAL CAUTION
1. Remove harness in yellow box.
2. Release smart core hook in red box.
3. Remove the smart core.
DISASSEMBLE COVER TOP
Remove the hooks in the following order.
1
2
① Lift the hook in red circle and slide it.
② Hold the area in the red box and lift the receiver board.
