Procedure

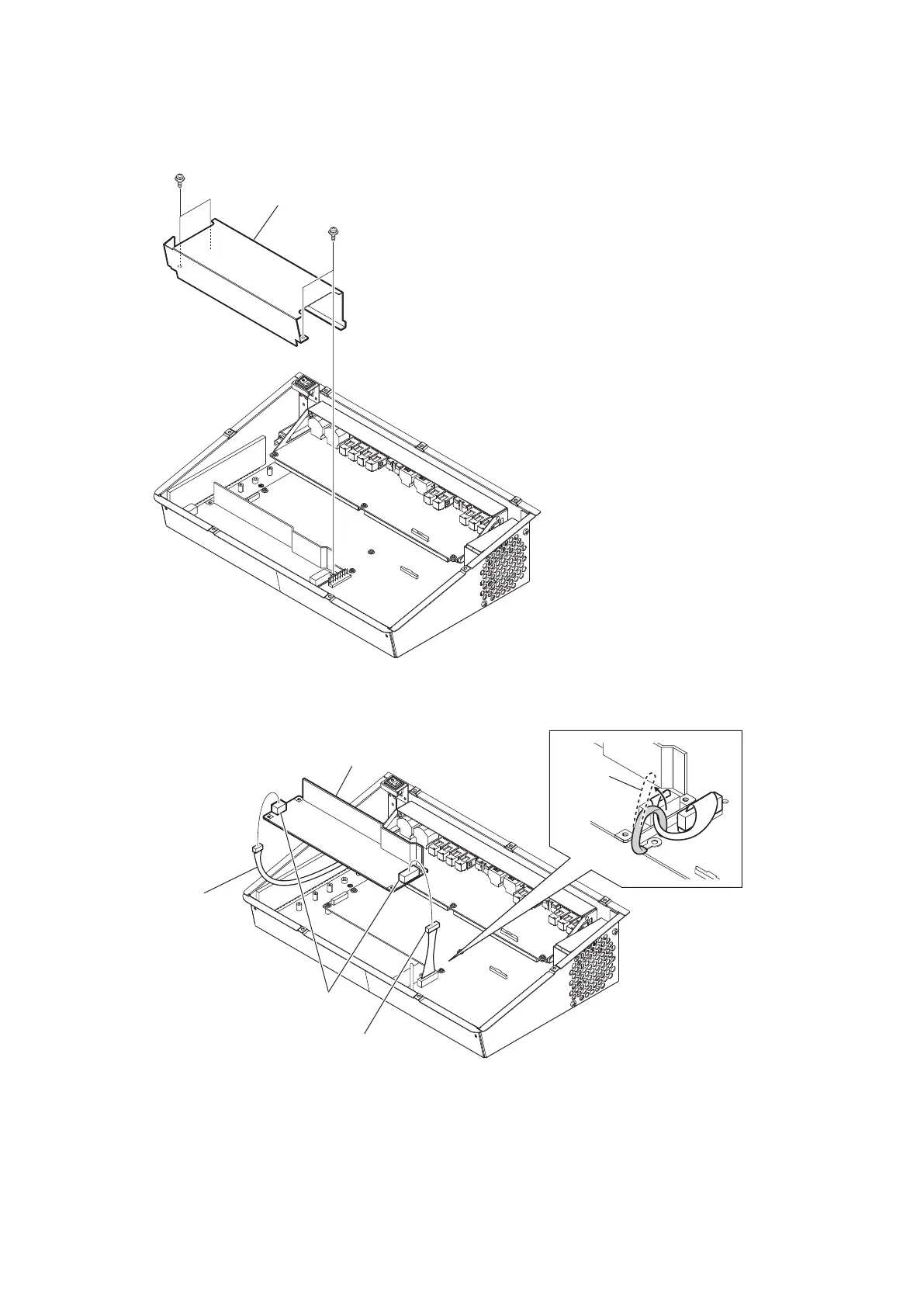

1. Remove the four screws to detach the insulation sheet (PS).
PSW3 x 8
PSW3 x 8
Insulating sheet (PS)
2. Release the two harnesses from the harness clamps, disconnect the harnesses from the two connectors on the
switching regulator, and then remove the switching regulator.
Switching regulator
Clamp
Harness (PSW)
Connectors
Harness
3. Install the removed parts by reversing the steps of removal.
1-3-3. DC Fan (80 Square)
Preparation
1. Remove the top panel assembly. (Refer to “1-3-1. Top Panel Assembly”.)
MCS-8M
1-15
To Next Page
