MEX-GS810BH/N6000BH
18
SECTION 3
DISASSEMBLY
• This set can be disassembled in the order shown below.
3-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
3-2. MINI FUSE (BLADE TYPE) (10A/32V) (FU1), COVER
3-2. MINI FUSE (BLADE TYPE) (10A/32V) (FU1),
COVER
(Page 18)
3-3. SUB PANEL ASSY
(Page 19)
3-4. CD MECHANISM DECK (MG-101CF-188)
(Page 19)
3-7. ANTENNA BT (BT1) (GS810BH)
(Page 22)
3-8. ANTENNA BT (BT1) (N6000BH)
(Page 22)
SET
FRONT PANEL SECTION
Note: Illustration of disassembly is omitted.
3-5. CONNECTION CABLE (AUTOMOBILE) ( )
(CNC1) (GS810BH)
(Page 20)
3-6. MAIN BOARD
(Page 21)

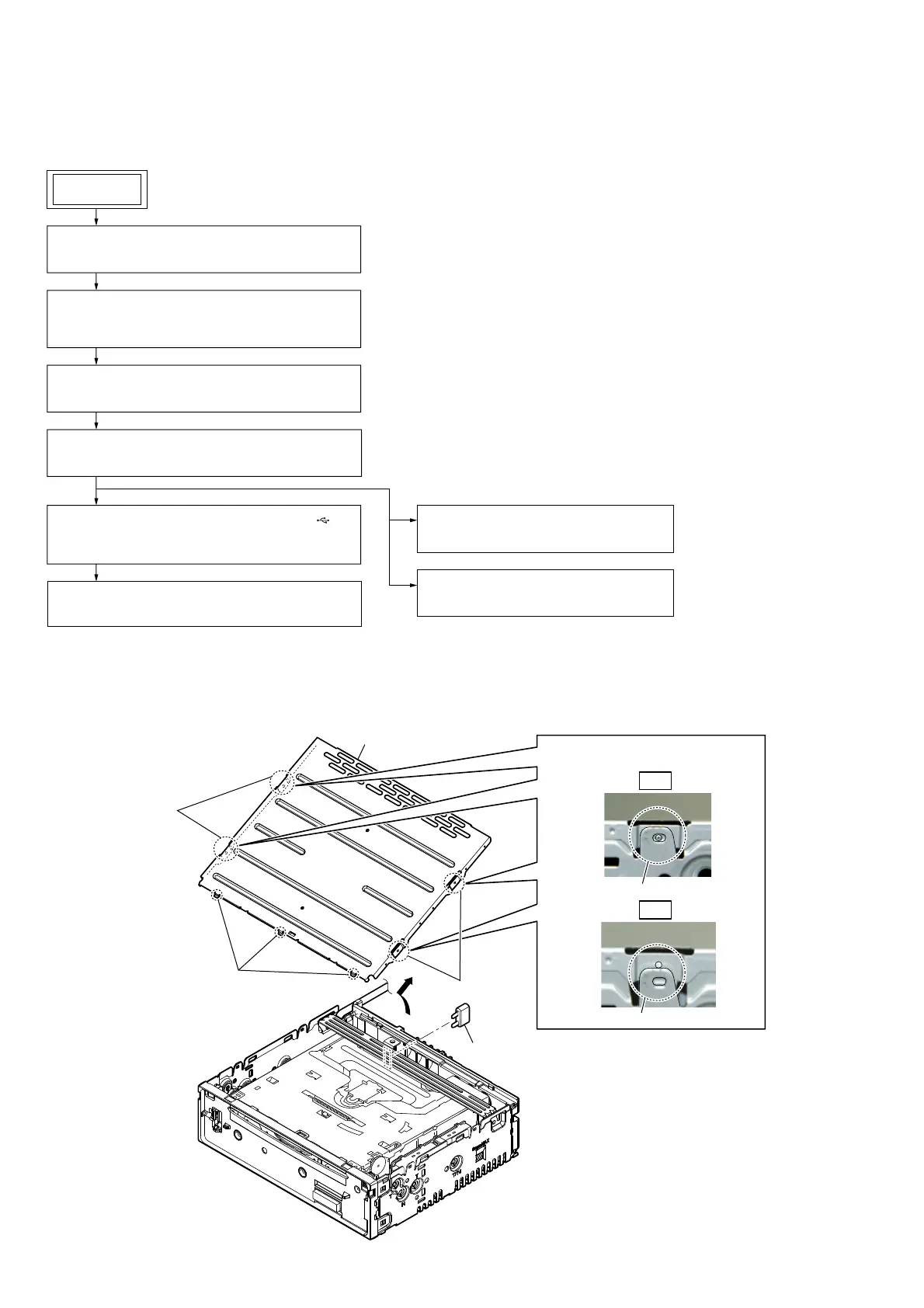

1 mini fuse (blade type) (10A/32V)
(FU1)
3 three claws
2 two bosses
4 cover
Boss is unlocked.
Boss is locked.
OK
NG
Note:
When installing the cover,
check
that four bosses are all locked.
2 two bosses
