Sony MEX-N6000BH Service Manual

MEX-GS810BH/N6000BH
20

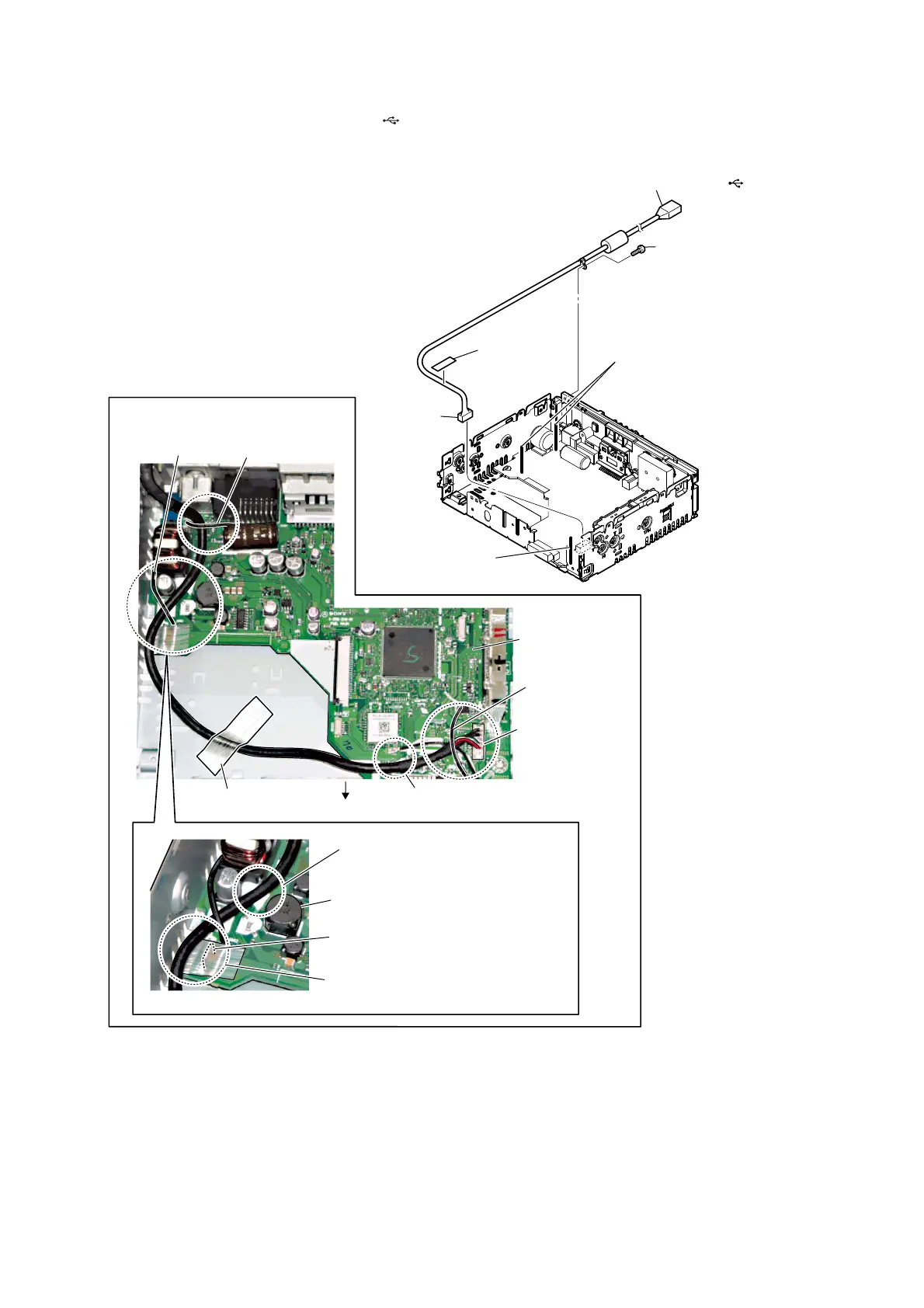

3-5. CONNECTION CABLE (AUTOMOBILE) ( ) (CNC1) (GS810BH)
lead pin
connector
(CN1300)
lead pin
lead pin
&RQQHFWLRQFDEOHDXWRPRELOHVHWWLQJ
MAIN board
filament tape
front side
1 filament
tape
3 connector
(CN1300)
2
Remove the cable
from two lead pins.
2
Remove the cable
from lead pin.
5 connection cable (automobile) ( )
(CNC1)
4 screw
(PTT2.6 u 8)
Note 2:
Connection cable (automobile)
do not touch to L801.
Note 3:
Connection cable (automobile) do not
ride on leg of chassis.
L801
leg
Note 1:
Connection cable (automobile)
do not ride on connector.
