NOTE:
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.
• ltems marked "*" are not stocked since
they are seldom required for routine
service. Same delay should be antici-
pated when ordering these items.

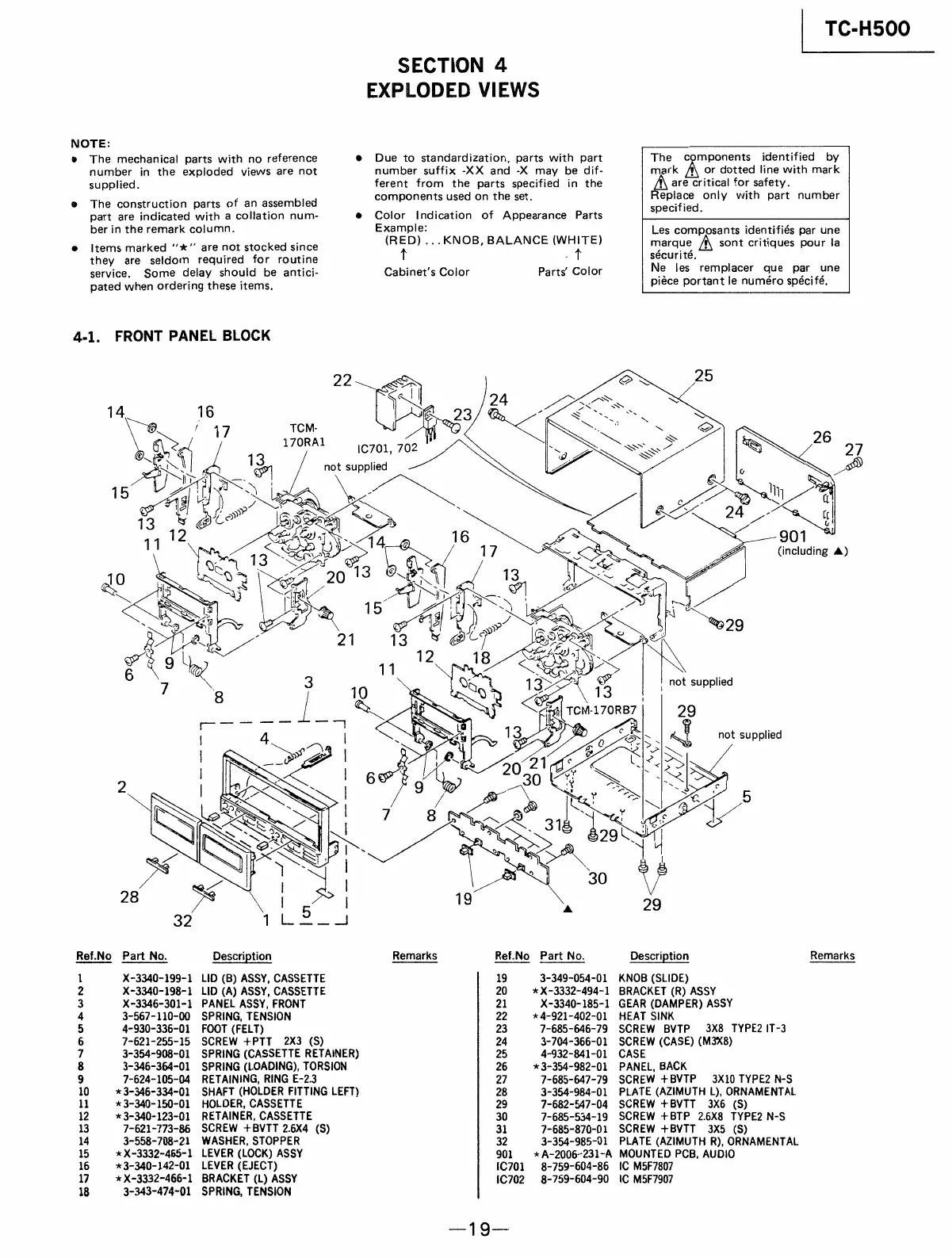

4-1. FRONT PANEL BLOCK
2.
Ref.No
Part No.
Descrietion
1
X-3340-199-1
LID (B) ASSY, CASSETTE
2
X-3340-198-1
LID (A) ASSY, CASSETTE
3
X-3346-301-1
PANEL ASSY, FRONT
4
3-567-110-00
SPRING, TENSION
5
4-930-336-01
FOOT (FELT)
6
7-621-255-15
SCREW +PTT
2X3 (S)
SECTION 4
EXPLODED VIEWS
• Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
•
Color I ndication of Appearance Parts
Example:
(RED) ... KNOB, BALANCE (WHITE)
t . t
Cabinet's Color
Parts' Color
TC-HS00
The components identified by
mark & or dotted line with mark
ji are critical for safety.
Replace only with part number
specified.
Les composants identifies par une
marque & sont critiques pour la
securite.
Ne les remplacer que par une
piece portant le numero specife.
25
4 .>-,:.,,.......~,, '-,;:
~ ',,,. ,,, ' "'
Remarks
Ref.No
Part No.
19
3-349-054-01
20
* X-3332-494-1
21
X-3340-185-1
22
*4-921-402-01
23
7-685-646- 79
24
3-704-366-01
., '~ _7 26
:--..\,:s:,,/ 27
v ~
C -~ 111
Descrietion
KNOB (SUDE)
BRACKET (R) ASSY
GEAR(DAMPER)ASSY
HEAT SINK
-90
(including .&.)
Remarks
SCREW BVTP
3X8 TYPE2 IT-3
SCREW (CASE) (M3'<8)
7
3-354-908-01
SPRING (CASSETTE RET AINER)
25
4-932-841-01 CASE
8
3-346-364-01
SPRING (LOADING), TORSION
26
* 3-354-982-01 PANEL, BACK
9
7-624-105-04
RETAINING, RING E-2.3
27
7-685-647- 79
SCREW +BVTP
3Xl0
TYPE2 N-S
10 * 3-346-334-01
SHAFT (HOLDER FITTING LEFT)
28
3-354-984-01 PLATE (AZIMUTH L), ORNAMENT AL
11
* 3-340-150-01
HOL0ER,CASSETTE
29
7-682-547-04
SCREW +BVTT
3X6 (S)
12
* 3-340-123-01 RETAINER, CASSETTE
30
7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S
13
7-621- 773-86
SCREW +BVTT 2.6X4 (S)
31
7-685-870-01
SCREW +BVTT 3X5 (S)
14
3-558-708-21
WASHER, STOPPER
32
3-354-985-01
PLATE (AZIMUTH R), ORNAMENT AL
15 * X-3332-465-1
LEVER (LOCK) ASSY
901
* A-2006-231-A MOUNT EO PCB, AUDIO
16 * 3-340-142-01 LEVER (EJECT)
IC701
8- 759-604-86
IC M5F7807
17 * X-3332-466-1
BRACKET (L) ASSY
IC702
8- 759-604-90
IC M5F7907
18
3-343-474-01
SPRING, TENSION
-19-
