Sony MHC-5500 User Manual

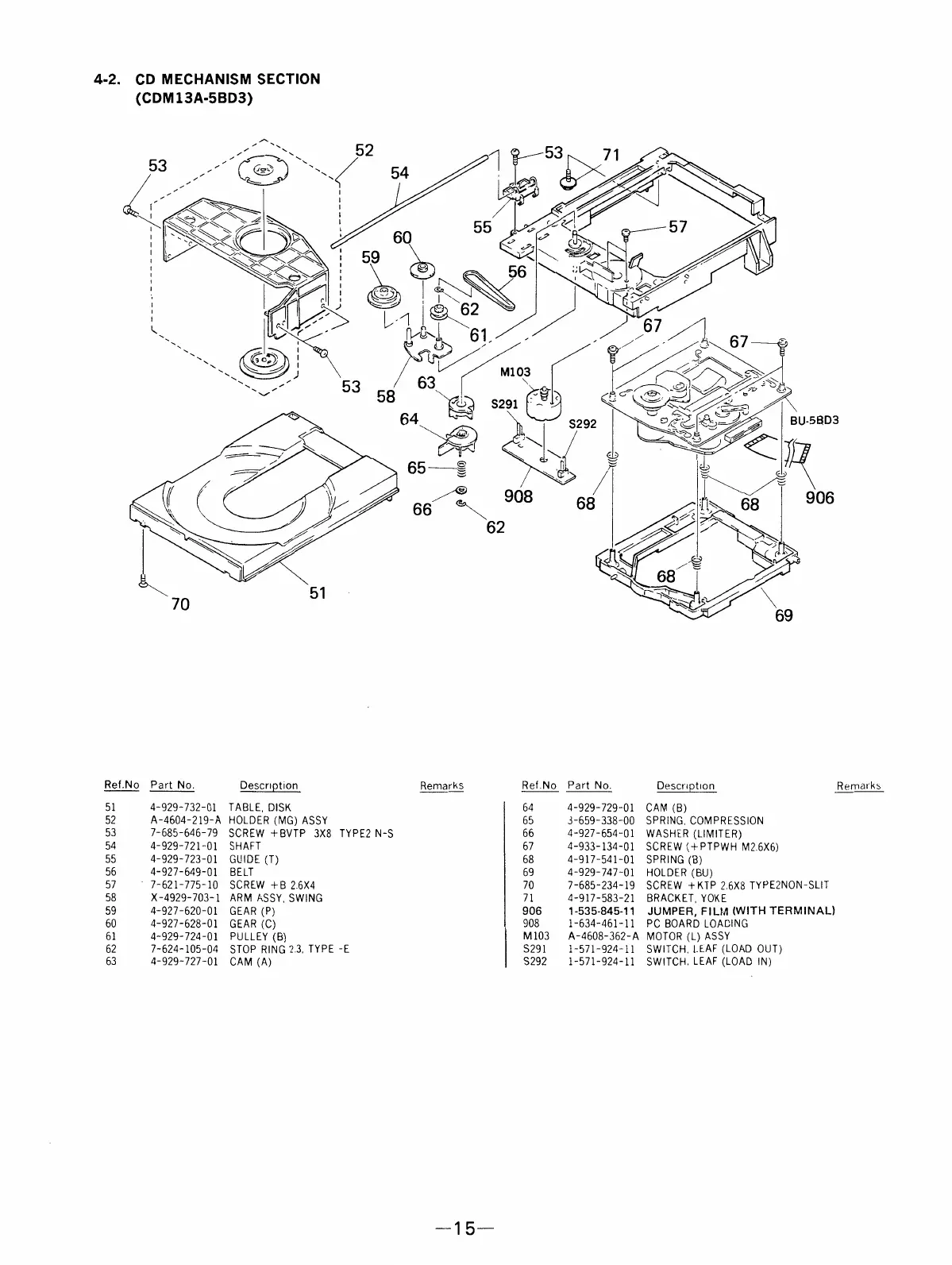

4-2. CD M ECHANISM SECTION
(CDM 13A-5BD3)
~
70
51
Ref.No Part No.
Descnption
51
52
53
54
55
56
57
58
59
60
61
62
63
4-929-732-01 TABLE, DISK
A-4604-219-A HOLDER (MG) ASSY
7-685-646- 79 SCREW + BVTP 3X8 TYPE2 N-S
4-929-721-01
SHAFT
4-929-723-01 GUIDE (T)
4-927-649-01
BELT
7-621-775-10 SCREW +B 2.6X4
X-4929-703-1 ARM ASSY, SWING
4-927-620-01 GEAR (P)
4-927-628-01
GEAR (C)
4-929-724-01 PULLEY (B)
7-624-105-04
STOP RING 2.3, TYPE -E
4-929-727-01 CAM (A)
Remarks Ref.No Part No.
Descnpt1on
Remarks
64 4-929-729-01 CAM (B)
65 3-659-338-00 SPRING, COMPRESSION
66 4-927-654-01 WASHER (LIMITER)
67 4-933-134-01 SCREW (+PTPWH M26X6)
68 4-917-541-01 SPRING (B)
69 4-929-747-01 HOLDER (BU)
70 7-685-234-19 SCREW + KTP 2.6X8 TYPE2NON-SLIT
71 4-917-583-21 BRACKET, YOKE
906 1-535-845-11 JUMPER, FILM (WITH TERMINAL)
908 1-634-461-11 PC BOARD LOADING
M103 A-4608-362-A MOTOR (L) ASSY
S291 1-571-924-11 SWITCH. LEAF (LOAD OUT)
S292 1-571-924-11 SWITCH, LEAF (LOAD IN)
-15-
