SS-H5500

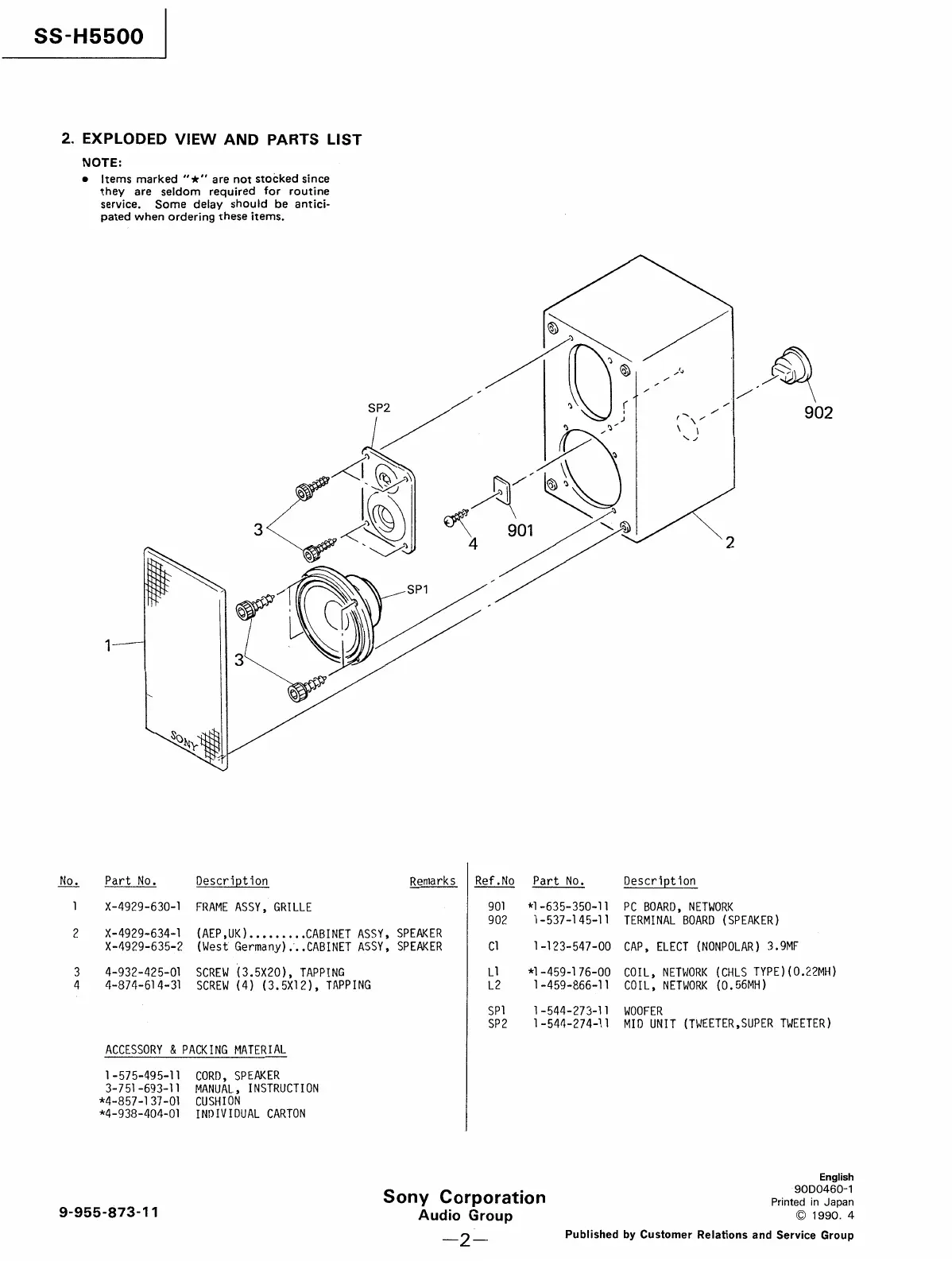

2. EXPLODED VIEW AND PARTS LIST
NOTE:
• ltems marked "*" are not stocked since
they are seldom required for routine
service. Seme delay should
be antici-
pated when ordering these items.
Part No. Oescription
X-4929-630~ FRAME ASSY, GRILLE
Remarks Ref.No Part No. Oescription
901 *l-635-350-11 PC BOARD, NETWORK
902 l-537-145-11 TERMINAL BOARD (SPEAKER)
2 X-4929-634-1
(AEP,UK) .••••••.. CABINET ASSY, SPEAKER
X-4929-635-2
(West Germany) ••• CABINET ASSY, SPEAKER
Cl
1-123-547-00
CAP, ELECT (NONPOLAR) 3.9MF
3 4-932-425-01
SCREW (3.5X20), TAPPING
4
4-874-614-31 SCREW (4) (3.5Xl2), TAPPING
ACCESSORY & PACKING MATERIAL
l -575-495-11
3-751-693-l l
*4-857-1 37-01
*4-938-404-01
9-955-873-11
CORD, SPEAKER
MANUAL, INSTRUCTION
CUSHION
INDIVIDUAL CARTON
L1
*l -459-1 76-00
L2 1 -459-866-1 l
SPl l -544-273-1 l
SP2
l -544-274-1 l
Sony Corporation
Audio Group
COIL, NETWORK (CHLS TYPE)(0.22MH)
COIL, NETWORK (0.56MH)
WOOFER
MIO UNIT (TWEETER,SUPER TWEETER)
English
90D0460-1
Printed in Japan
© 1990. 4
