Sony MHC-5500 - Chassis Block

NOTE:
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• The construction parts of an assembled
part are indicated with a collation num-
ber in the remark column.
• ltems marked "*" are not stocked since
they are seldom required for routine
service. Same delay should be antici-
pated when ordering these items.

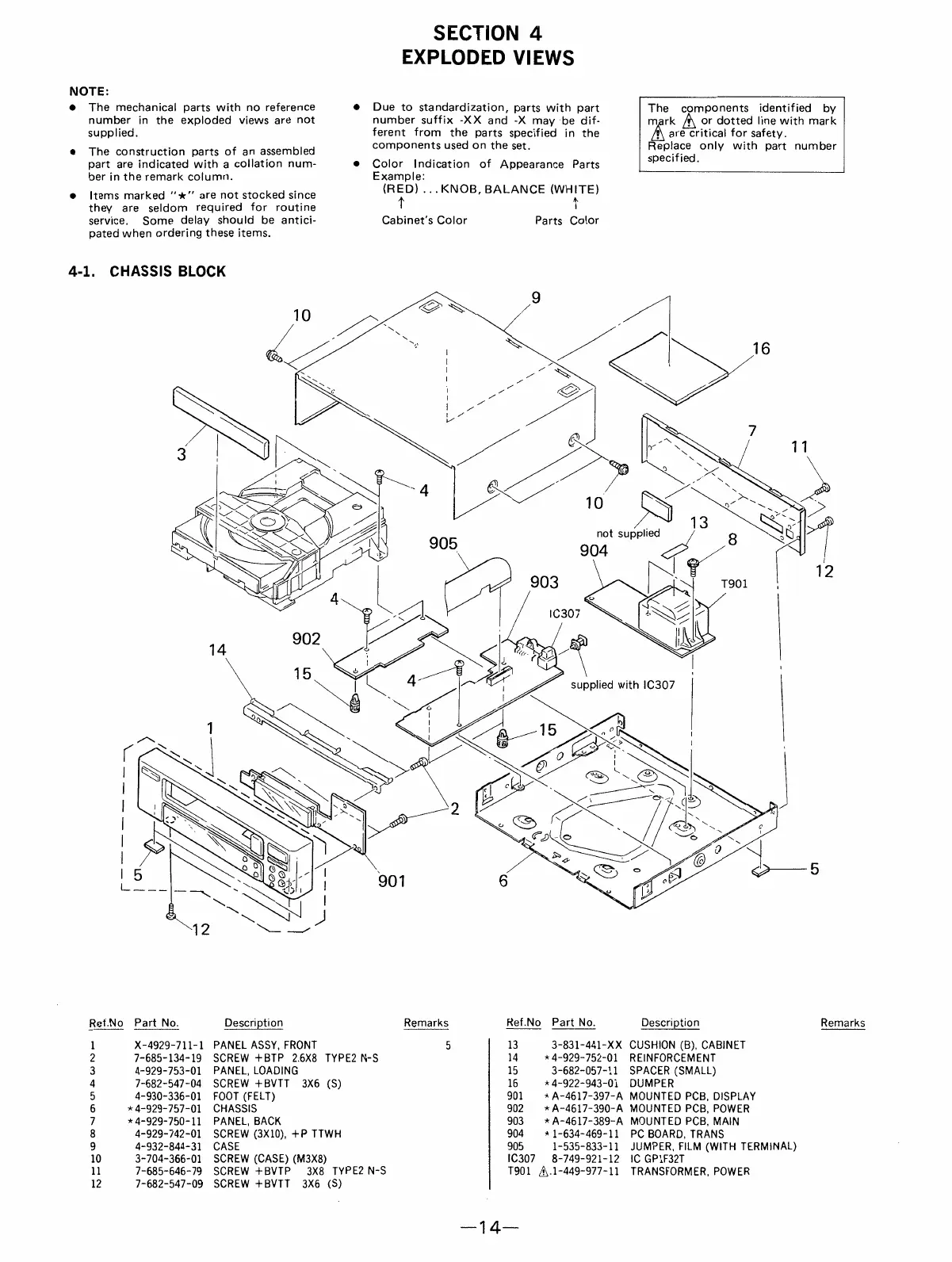

4-1. CHASSIS BLOCK
Ref.No Part No. Description
SECTION 4
EXPLODED VIEWS
• Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
•
Color lndication of Appearance Parts
Example:
(RED) ... KNOB, BALANCE (WHITE)
t t
Cabinet's Color
Parts Color
Ref.No Part No.
The components identified by
mjlrk Lß or dotted line with mark
fil are critical for safety.
Replace
only with part number
specified.
Description
Remarks
1
2
3
4
5
6
7
8
9
10
11
12
X-4929-711-1 PANEL ASSY, FRONT
7-685-134-19 SCREW + BTP 2.6X8 TYPE2 N-S
4-929-753-01
PANEL, LOADING
13 3-831-441-XX CUSHION (8), CABINET
14 *4-929-752-01 REINFORCEMENT
15 3-682-057-11 SPACER (SMALL)
7-682-547-04
SCREW +BVTT 3X6 (S)
4-930-336-01 FOOT (FELT)
* 4-929-757-01 CHASSIS
* 4-929-750-11 PANEL, BACK
4-929-742-01 SCREW (3Xl0), +P TTWH
4-932-844-31 CASE
3- 704-366-01 SCREW (CASE) (M3X8)
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
7-682-547-09 SCREW +BVTT 3X6 (S)
16 * 4-922-943-01 DUMPER
901 * A-4617-397-A MOUNTED PCB, DISPLAY
902 * A-4617-390-A MOUNT ED PCB, POWER
903 * A-4617-389-A MOUNT ED PCB, MAIN
904 * 1-634-469-11 PC BOARD, TRANS
905 1-535-833-11 JUMPER, FILM (WITH TERMINAL)
IC307 8-749-921-12 IC GP1F32T
T901 &.1-449-977-11 TRANSFORMER, POWER
-14-
