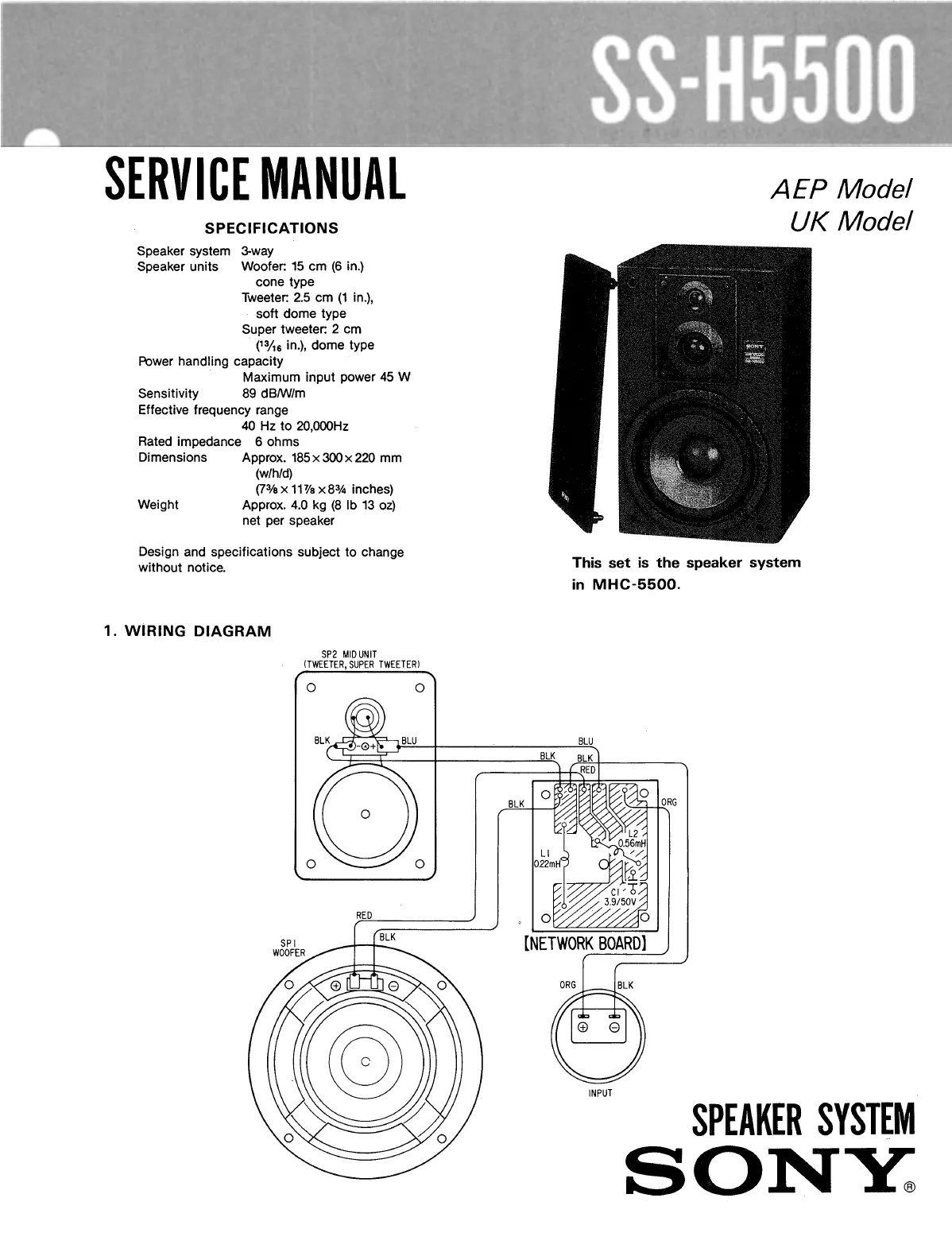

SERVICE MANUAL
SPECIFICATIONS
Speaker system 3-way
Speaker units Woofer: 15 cm (6 in.)
cone type
Tweeter: 2.5 cm (1 in.),
soft dome type
Super tweeter:
2 cm
(13f1
6
in.), dome type
Power handling capacity
Maximum input power
45 W
Sensitivity
89 dB/Wim
Effective frequency range
40 Hz to 20,000Hz
Rated impedance 6 ohms
Dimensions Approx.
185 x 300 x 220 mm
(w/h/d)
(73/a x 1H's x8¾ inches)
Weight Approx.
4.0 kg (8 lb 13 oz)
net per speaker
Design and specifications subject to change
without notice.
1. WIRING DIAGRAM
SP2 MIDUNIT
(TWEETER, SUPER TWEETER)
0
0
AEP Model
UK Model
This set is the speaker system
in MHC-5500.
[NETWORK BOARD]
INPUT
SPEAKER SYSTEM
SONY.
