Sony MHC-V5 Service Manual

MHC-V5
14

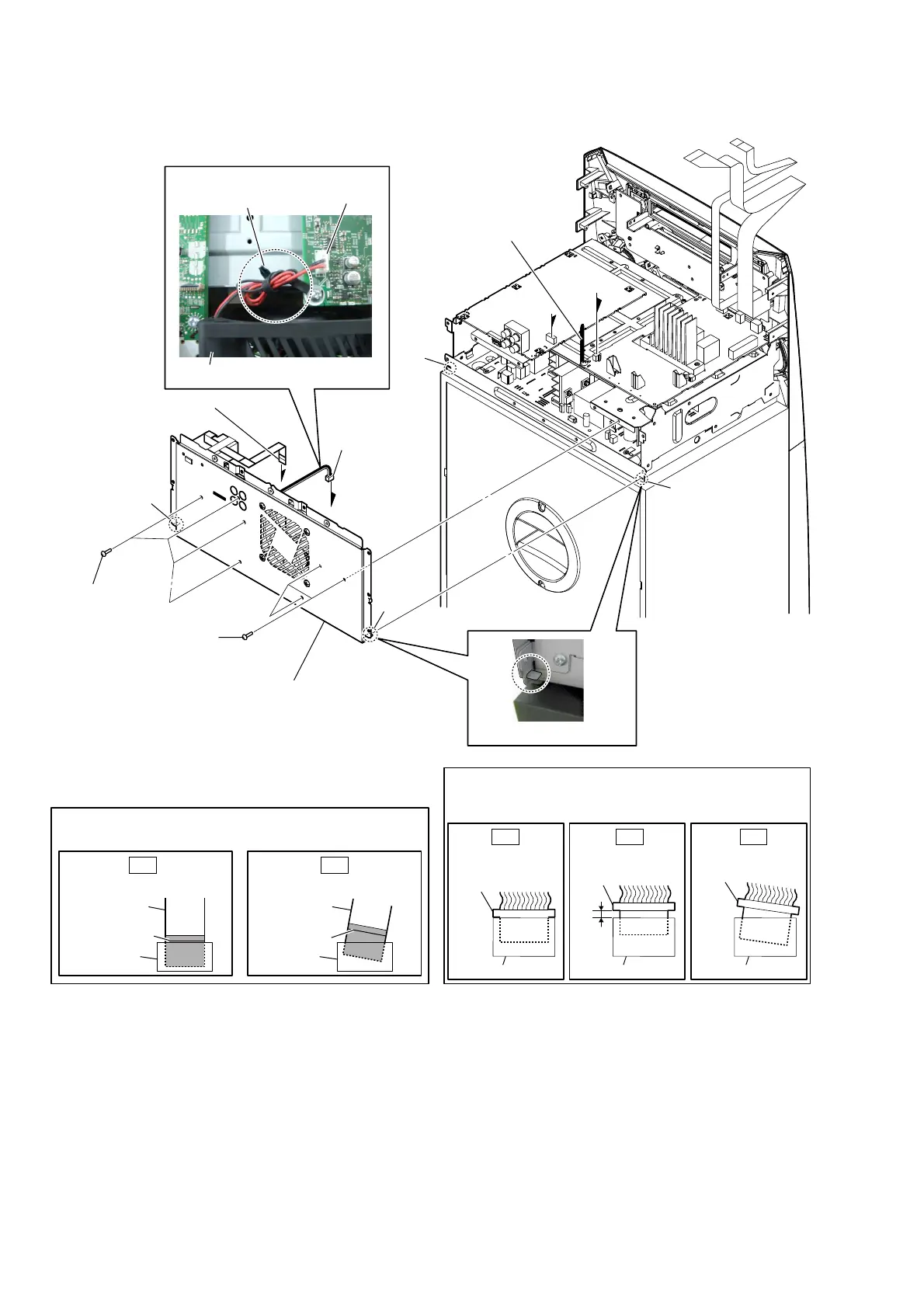

2-8. BACK PANEL BLOCK
B
B
4 three screws
(BV/RING)
4 four screws
(BV/RING)
1 Remove the DC fan wire
from the coating clip.
– Top rear view –
– Left view –
coating clip
DC fan
 '& faQ wire VettiQJ
2 DC fan connector
(CN1003)
A
A
3 flexible flat cable (9 core)
(CN851)
hook
hole
hole
hook
Note 2:
When installing the flexible flat cable,
ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat
cable
flexible flat
cable
connectorconnector
OK NG
Note 3:
When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG
CN1003
5 back panel block
Note 1:
When installing the back panel block,
align two hooks and two holes.

Sony MHC-V5 Specifications

General

On/off switch	Yes
Product color	Black
Recommended usage	Universal
Suitable for outdoor use	-
Speaker type	3-way
Driver diameter	250 mm
Speaker position	Front
Tweeter diameter	40 mm
Number of drivers	3
Speaker placement	Floor
Audio output channels	1.0 channels
Mid-range driver diameter	100 mm
Number of tweeter drivers	1
Recommended amplifier power (max)	240 W
Recommended amplifier power (min)	0.5 W
Impedance	5 Ω
Frequency range	- Hz
RMS rated power	1440 W
Peak Music Power Output (PMPO)	15840 W
Number of amplifier channels	2 channels
Power source type	AC
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
AC input voltage	120 V
AC input frequency	60 Hz
Type	Home audio mini system

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
