Sony MHC-V5 Service Manual

MHC-V5
36

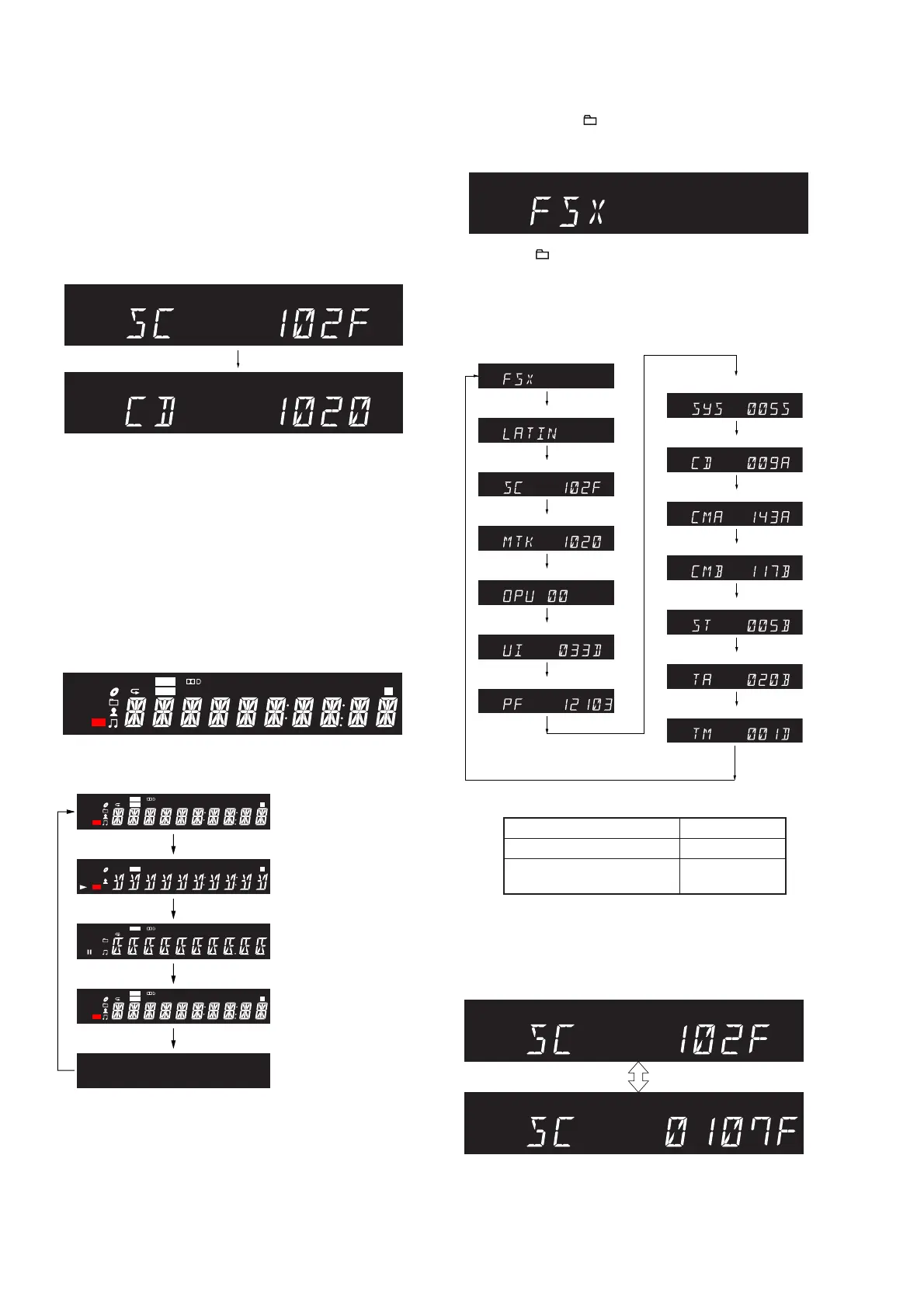

VERSION DISPLAY
It can confi rm the SC and MTK version.
Procedure:
1. Press the [
?
/
1
] button to turn the power on.
2. Press two buttons of the [ENTER] and [MOVIE/GAME] si-
multaneously for three seconds.
3. The SC and MTK version is displayed on the fl uorescent indi-
cator tube, and it returns to the display of the normal mode.
SC version
MTK version
(Displayed values in the above fi gure are example)
PANEL TEST
It can confi rm the fl uorescent indicator tube, LEDs, model name,
destination, software version and button.
Procedure:
1. Press the [
?
/
1
] button to turn the power on.
2. Press two buttons of the [ENTER] and [FOOTBALL] simulta-
neously for three seconds.
3. It enters the panel test mode, and all segments on the fl uores-
cent indicator tube and all LEDs light up.
Screen display
1
NX
REC
cPLAY cREC
FLDR SHUF
1 USB PGM
ALL USB SEARCH
USB B VIDEO PHOTO MUSIC TUNED MONO AUTO
USB A
%
NTSC SLEEP PRESETSTEREO
4. Each time the [ENTER] button is pressed, the screen display is
changed in order as follows.
All segments and
all LEDs turn on
Speaker illumination:
white
All segments and
all LEDs turn on
Speaker illumination:
blue
All segments and
all LEDs turn off
Speaker illumination:
off
Test pattern 1
Speaker illumination:
red
Test pattern 2
Speaker illumination:
green
1
REC
cPLAY
SHUF
1 USB
USB
USB B VIDEO PHOTO MUSIC MONO AUTO %
1
NX
REC
cPLAYcREC
FLDR SHUF
1 USB PGM
ALL USB SEARCH
USB B VIDEO PHOTO MUSIC TUNED MONO AUTO
USB A
%
NTSC SLEEP PRESETSTEREO
cREC
FLDR
PGM
ALL SEARCH
TUNED
USB A NTSC SLEEP PRESETSTEREO
1
NX
REC
cPLAYcREC
FLDR SHUF
1 USB PGM
ALL USB SEARCH
USB B VIDEO PHOTO MUSIC TUNED MONO AUTO
USB A
%
NTSC SLEEP PRESETSTEREO
5. When pressing the [ +] button, the model name is displayed
on the fl uorescent indicator tube.
Screen display
6. Each time [ +] button is pressed, tthe display changes desti-
nation → SC version → MTK version → OPU version → UI
version → PF version → SYS version → CD version → CMA
version → CMB version → ST version → TA version → TM
version this order, and returns to the model name display.
Model name
Destination
SC version
MTK version
OPU version
UI version
PF version
SYS version
CD version
CMA version
CMB version
ST version
TA version
TM version
(Displayed values in the above fi gure are example)
Destination Display
US model
NA
120V AC Area in E, Chilean
and Peruvian models
LATIN
7. When pressing the [x] button while the each version is dis-
played, month and day of the software creation is displayed.
When pressing the [
x] button again, the display returns to the
each version display.
Screen display
(Displayed values in the above fi gure are example)

Sony MHC-V5 Specifications

General

On/off switch	Yes
Product color	Black
Recommended usage	Universal
Suitable for outdoor use	-
Speaker type	3-way
Driver diameter	250 mm
Speaker position	Front
Tweeter diameter	40 mm
Number of drivers	3
Speaker placement	Floor
Audio output channels	1.0 channels
Mid-range driver diameter	100 mm
Number of tweeter drivers	1
Recommended amplifier power (max)	240 W
Recommended amplifier power (min)	0.5 W
Impedance	5 Ω
Frequency range	- Hz
RMS rated power	1440 W
Peak Music Power Output (PMPO)	15840 W
Number of amplifier channels	2 channels
Power source type	AC
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
AC input voltage	120 V
AC input frequency	60 Hz
Type	Home audio mini system

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
