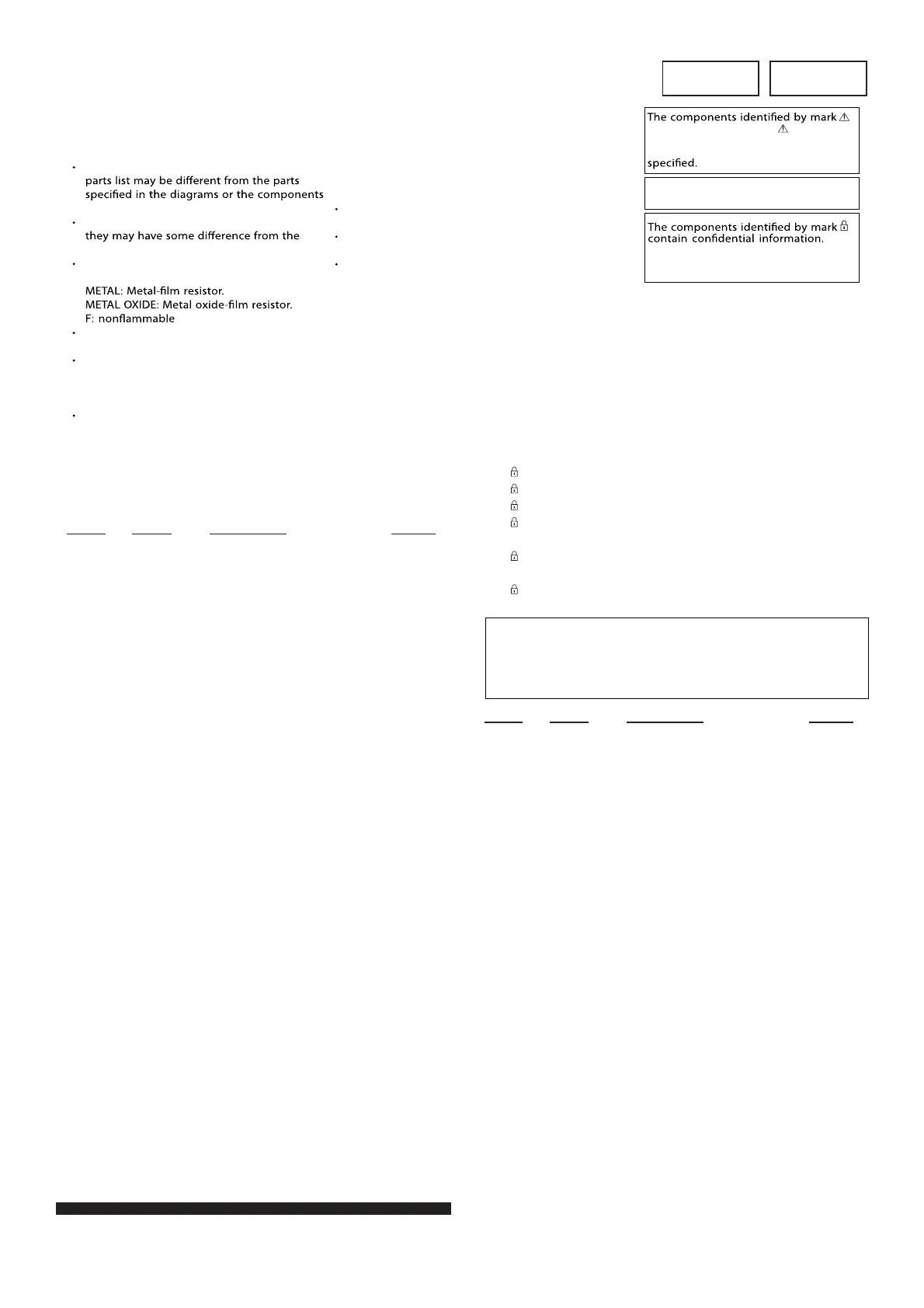

10-5
BDP-BX39/S390
NOTE:
Due to standardization, replacements in the
used on the set.
-XX and -X mean standardized parts, so
original one.
RESISTORS
All resistors are in ohms.
Not all of the parts for SWITCHING
REGULATOR are listed.
Items marked * are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
SEMICONDUCTORS
In each case, u: µ, for example:
uA. . : µA. . uPA. . : µPA. .
uPB. . : µPB. . uPC. . : µPC. .
uPD. . : µPD. .
CAPACITORS
uF: µF
COILS
uH: µH
8-2. ELECTRICAL PARTS LIST
or dotted line with mark are critical
for safety.
Replace only with part number
When indicating parts by reference
number, please include the board.
Strictly follow the instructions
whenever the components are repaired
and/or replaced.
A-1855-682-A SERVICE ASSY, FR
**************************************************************************
A-1855-743-A SERVICE ASSY, MB (BDP-S390:MX,E)
A-1855-738-A SERVICE ASSY, MB (BDP-S390:RUS)
A-1855-729-A SERVICE ASSY, MB (BDP-S390:AUS)
A-1855-721-A SERVICE ASSY, MB
(BDP-S390:CND/BDP-BX39:CND)
A-1855-707-A SERVICE ASSY, MB
(BDP-S390:US/BDP-BX39:US)
A-1855-681-A SERVICE ASSY, MB (BDP-S390:UK,AEP)
*************************************************************************
<CAPASITOR>
C101 1-116-390-91 CERAMIC CHIP 2.2UF 20% 6.3V
C102 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C114 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C115 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C118 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C119 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C120 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C121 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C122 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C123 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C124 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C125 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C128 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C129 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C159 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C202 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C203 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C204 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C206 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C207 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C211 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C214 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C215 1-100-916-11 CERAMIC CHIP 0.1UF 10% 16V
C304 1-112-298-91 CERAMIC CHIP 1UF 10% 16V
C307 1-112-777-11 CERAMIC CHIP 0.01UF 10% 25V
Ref-No. Part No. Part Description Remarks
Ref-No. Part No. Part Description Remarks
<CAPASITOR>
C201 1-112-298-91 CERAMIC CHIP 1UF 10% 16V
C202 1-162-910-91 CERAMIC CHIP 5PF 0.25PF 50V
C203 1-162-910-91 CERAMIC CHIP 5PF 0.25PF 50V
C204 1-125-972-91 ELECT 100UF 20.00% 16V
C711 1-100-909-11 CERAMIC CHIP 10UF 10% 6.3V
C712 1-162-970-91 CERAMIC CHIP 0.01UF 10.00% 25V
<CONNECTOR>
CN201 1-819-866-11 CONNECTOR, USB (A)
<DIODE>
D720 6-503-661-01 DI 1L0352W34A0CIT01
<IC>
IC710 6-600-665-01 IC GP1UE27XK0VF
IC710 6-600-665-01 IC GP1UE27XK0VF
<JUMPER RESISTOR>
JR701 1-216-296-91 SHORT CHIP 0
JR702 1-216-296-91 SHORT CHIP 0
JR703 1-216-296-91 SHORT CHIP 0
JR705 1-216-295-91 SHORT CHIP 0
<TRANSISTOR>
Q720 8-729-027-56 TRANSISTOR DTC143TKA-T146
<RESISTOR>
R201 1-216-295-91 SHORT CHIP 0
R710 1-216-809-91 METAL CHIP 100 5% 1/10W
R720 1-216-809-91 METAL CHIP 100 5% 1/10W
<SWITCH>
S700 1-786-726-11 SWITCH, TACTILE
S701 1-786-726-11 SWITCH, TACTILE
S702 1-786-726-11 SWITCH, TACTILE
S703 1-786-726-11 SWITCH, TACTILE
MB-144
FR-318
Abbreviation
UK : UK Model
AE1/2/3 : AEP Model
RUS : Russian Model
AUS : Australia/NZ Model
US : US Model
CND : Canadian Model
MX : Mexican Model
E : Latin America Model
Notes :
MB-144 mounted PWB must be replaced if
IC101 (MAIN) and IC501 (NAND FLASH) is damaged or not functioning.
The old MB-144 mounted PWB must be completely disposed.
To Next Page
